Dipstick
\
Oil filter
Oil filler cap
J A
Her cap

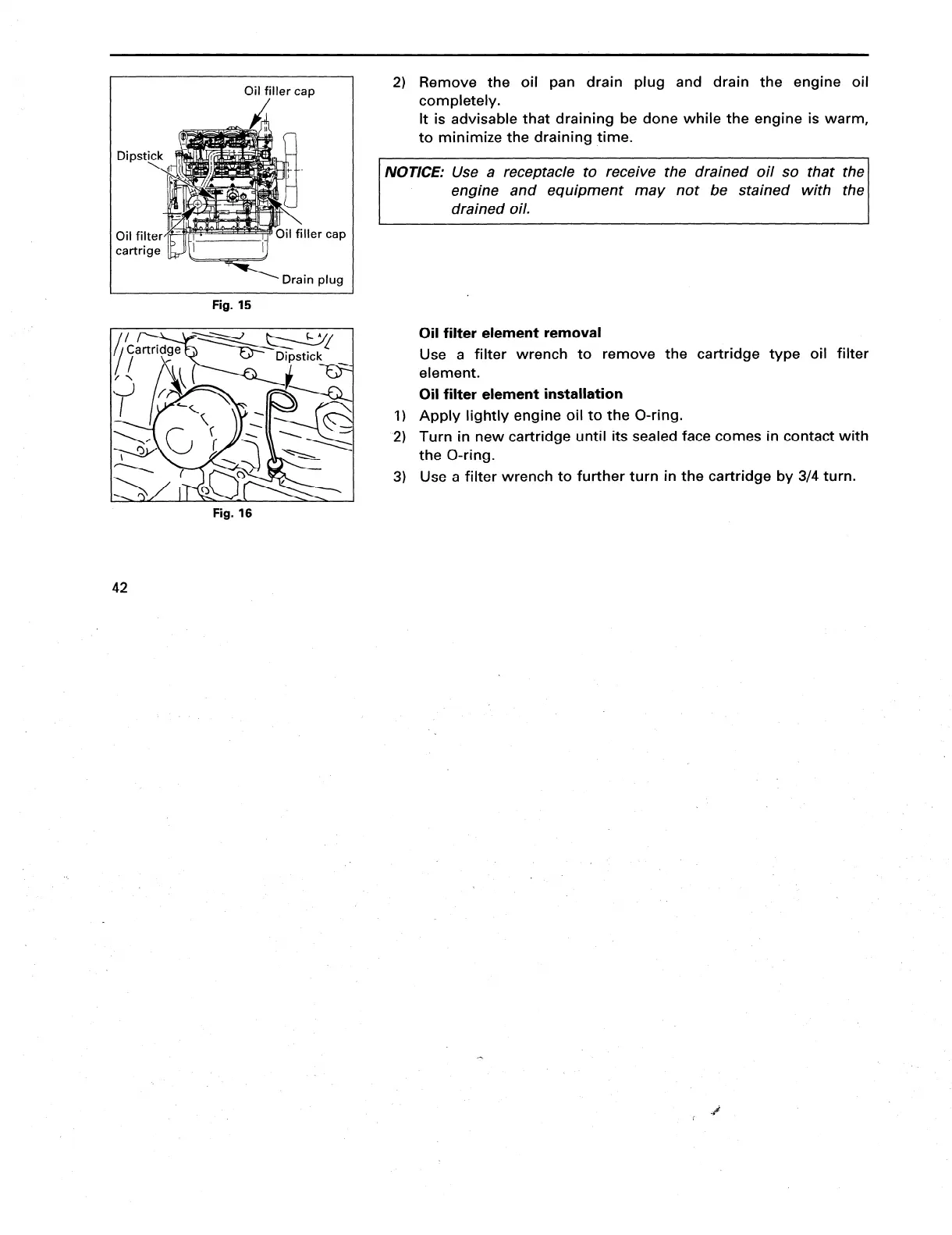

2) Remove the oil pan drain plug and drain the engine oil
completely.
It is advisable that draining be done while the engine is warm,
to minimize the draining time.
NOTICE: Use a receptacle to receive the drained oil so that the
engine and equipment may not be stained with the
drained oil.
Fig. 15
Oil filter element removal
Use a filter wrench to remove the cartridge type oil filter
element.
Oil filter element installation
1) Apply lightly engine oil to the O-ring.
2) Turn in new cartridge until its sealed face comes in contact with
the O-ring.
3) Use a filter wrench to further turn in the cartridge by 3/4 turn.
Fig. 16
42
