DICAT
NORMAL
CLOGGED
Fig.. 24
54

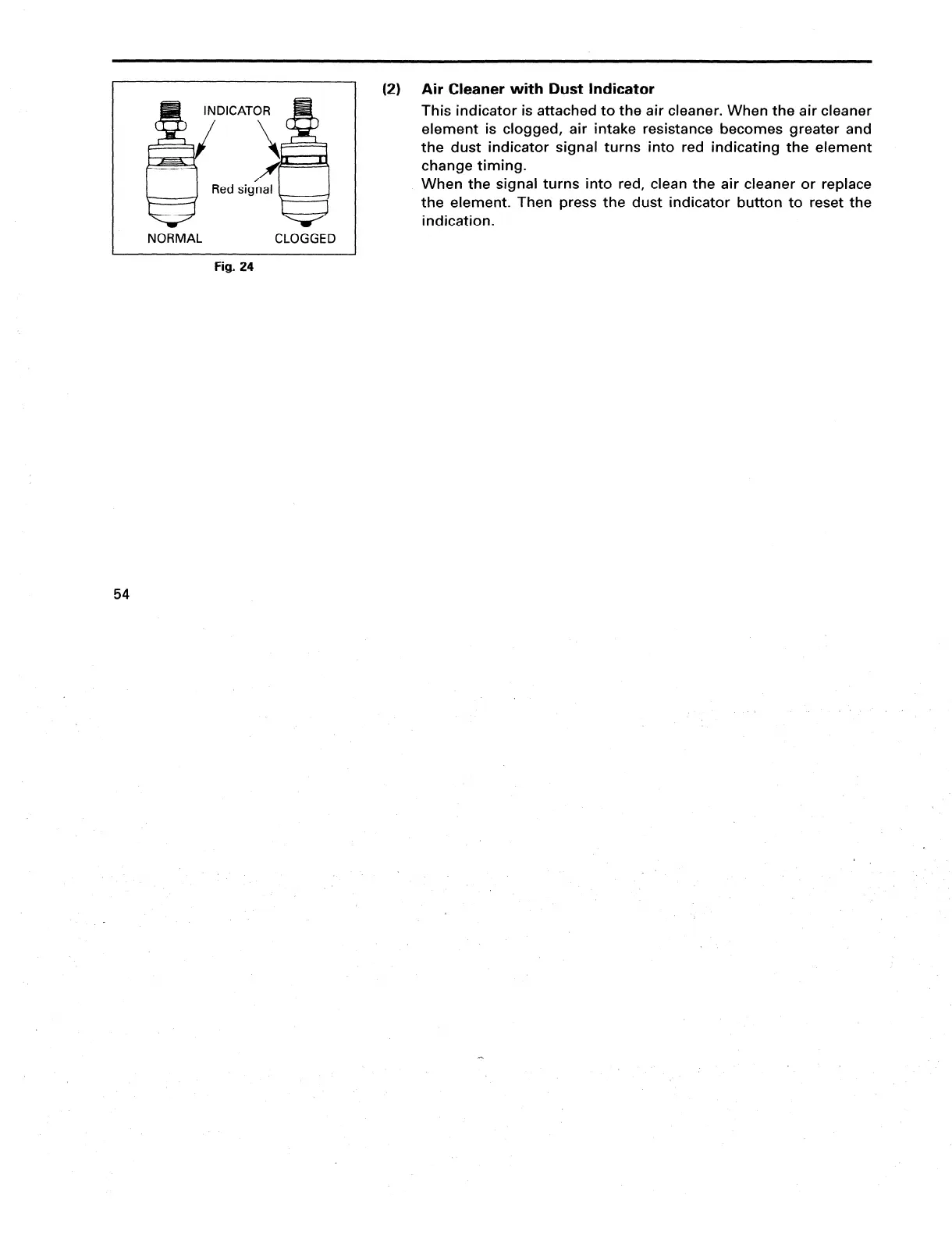

(2) Air Cle
aner with Dust Indicator
This indicator is attached to the air cleaner. When the air cleaner
element is clogged, air intake resistance becomes greater and
the dust indicator signal turns into red indicating the element
change timing.
When the signal turns into red, clean the air cleaner or replace
the element. Then press the dust indicator button to reset the
indication.
-
