SERVICE INF
ORMATION 00 – 29
LUBRI
CATION CHART
T
he 4J Series engine lubricating system is a full flow type.
Lubricating oil is pumped from the oil pump to the cylinder body oil gallery through the oil cooler and the oil filter
(replaceable type oil filters have on oil cooler). It is then delivered to the vital parts of the engine from the cylinder
body oil gallery.
4J
B1, 4JB1TC, 4JG2, Oil Filter & Oil Cooler
k
Pa (Kg/cm
2
/ps
i)
!
O
il filter relief valve opening pressure : 559 - 0618 (5.7 - 6.3/81 - 90)
"
O
il cooler safety valve opening pressure : 314 - 373 (3.2 - 3.8/46 - 54)
#
O
il filter safety valve opening pressure : 78 - 118 (0.8 - 1.2/11 - 19)
$
O
il pressure switch opening pressure : 29.4 - 49.0 (0.3 - 0.5/4.3 - 7.1)

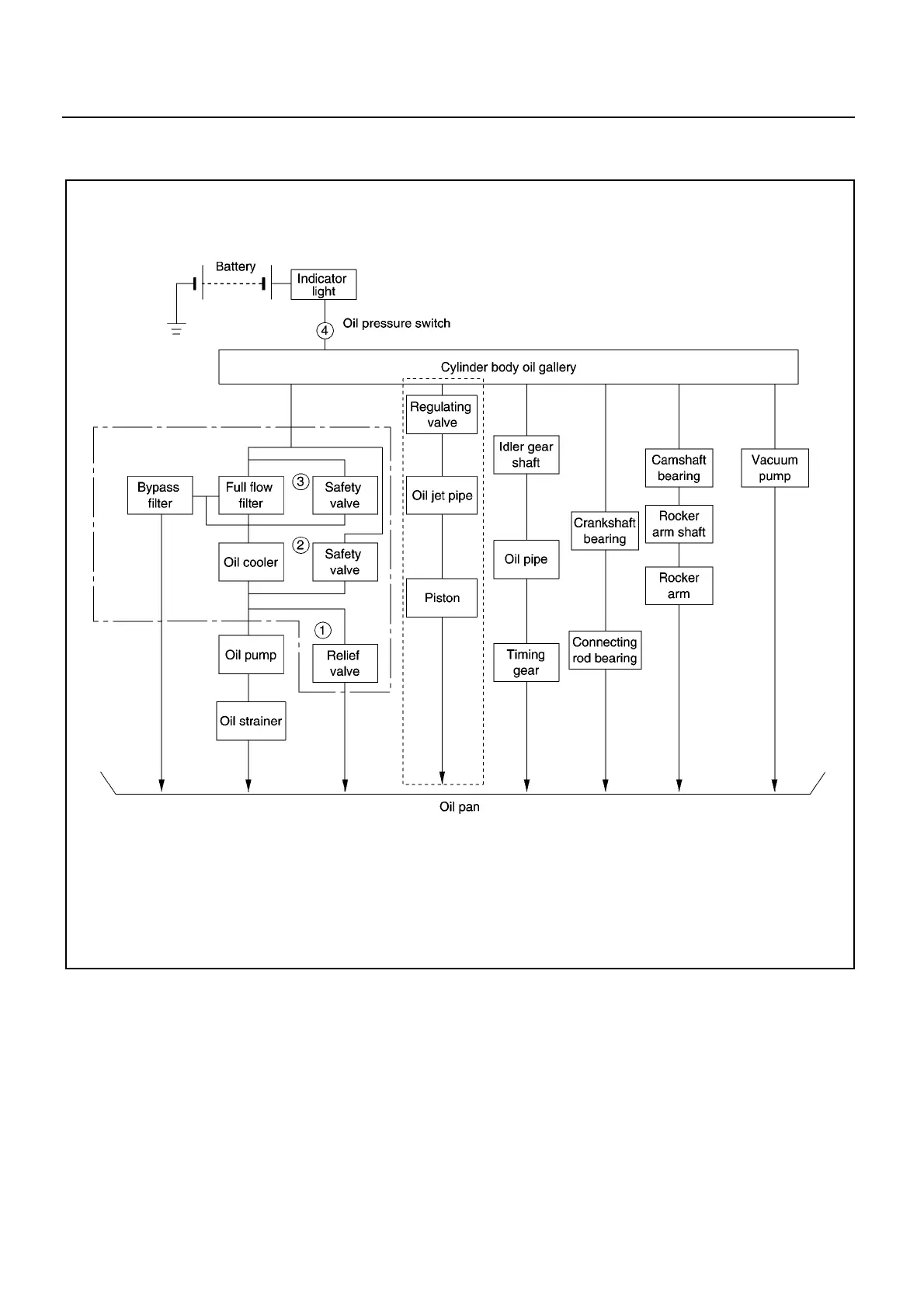

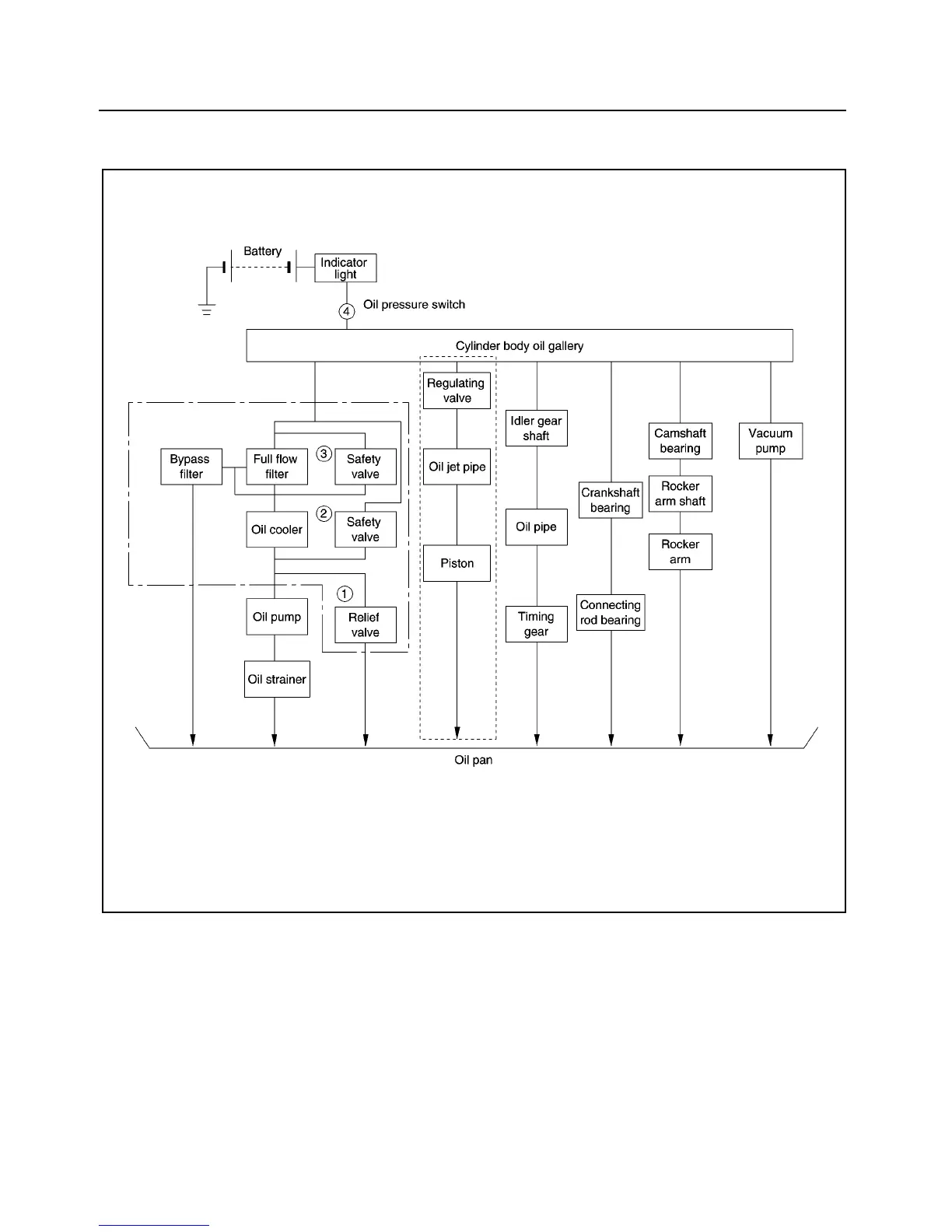

Lubu C
