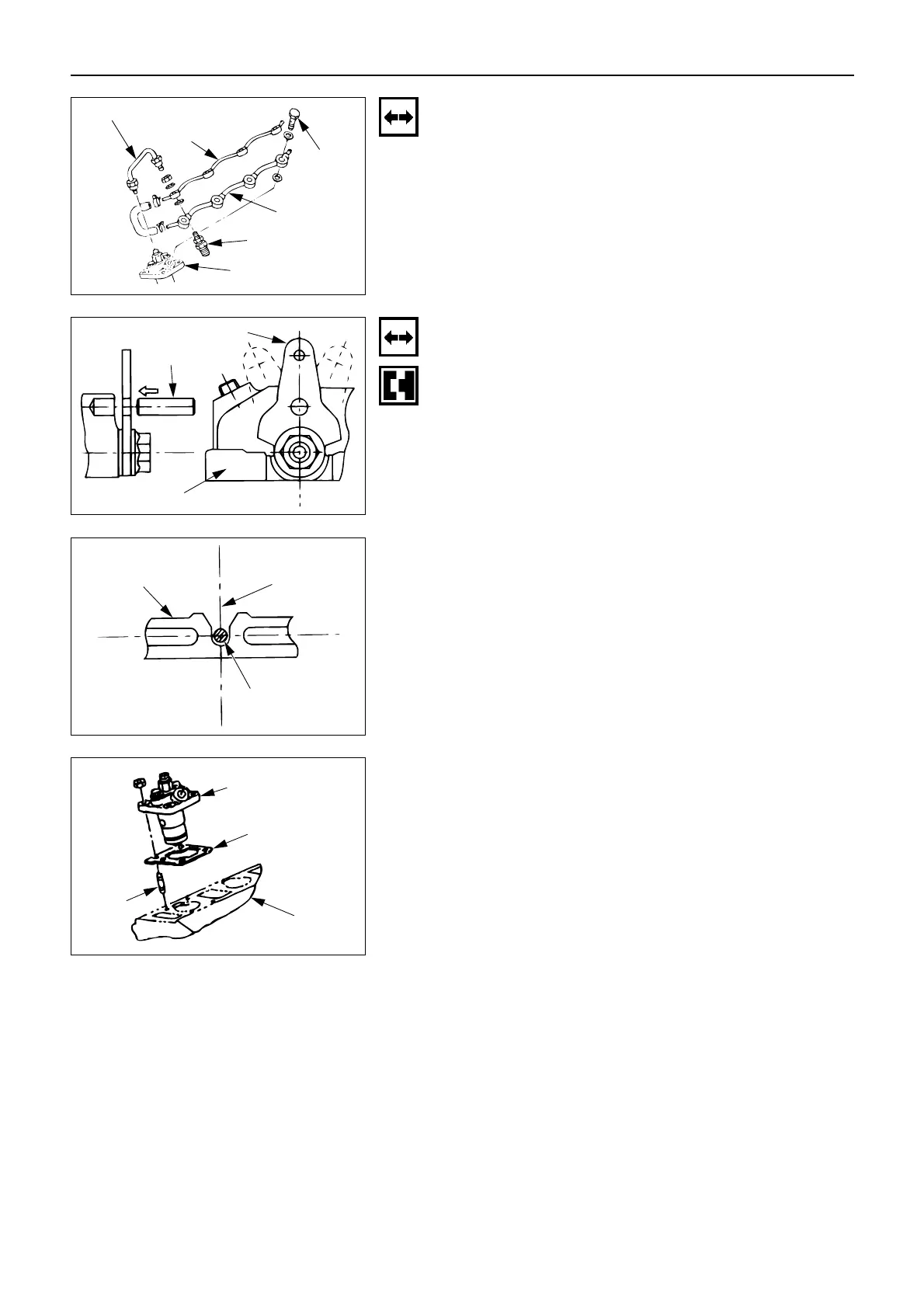

30 ENGINE
Injection pipe
Leak off pipe
Fuel pipe
1. Loosen the sleeve nuts on the nozzle holder side and
on the injection pump side, and then disconnect the
injection pipes.
2. Disconnect the leak off pipe together with gaskets.
3. Remove the eye bolt, and then disconnect the fuel
pipe.
Eye bolt
Leak off pipe
Injection pipe
Fuel pipe
Nozzle holder
Injection pump
Injection pump
1. Align the hole of the fuel cut lever with the hole of
the governor cover, and then insert a pin (6ø) into
this hole to hold the fuel cut lever.
2. Check to see if the pin groove of the control link is at
the center of the injection pump.
3. Remove the injection pump, and then take out the
shim.
Governor cover
Pin(6 φ)
Fuel cut cover
NOTE:
1. Mark each injection pump as to which cylinder it
was removed from.
2. Do not reuse the shim, replace it with the same
thickness that was removed.
Control link
Injection pump
center position
Injection pump
rack pin
Injection pump ASM
Shim
Cylinder block
* Stud
Fig. 39
Fig. 40
Fig. 41
Fig. 42
To Next Page
