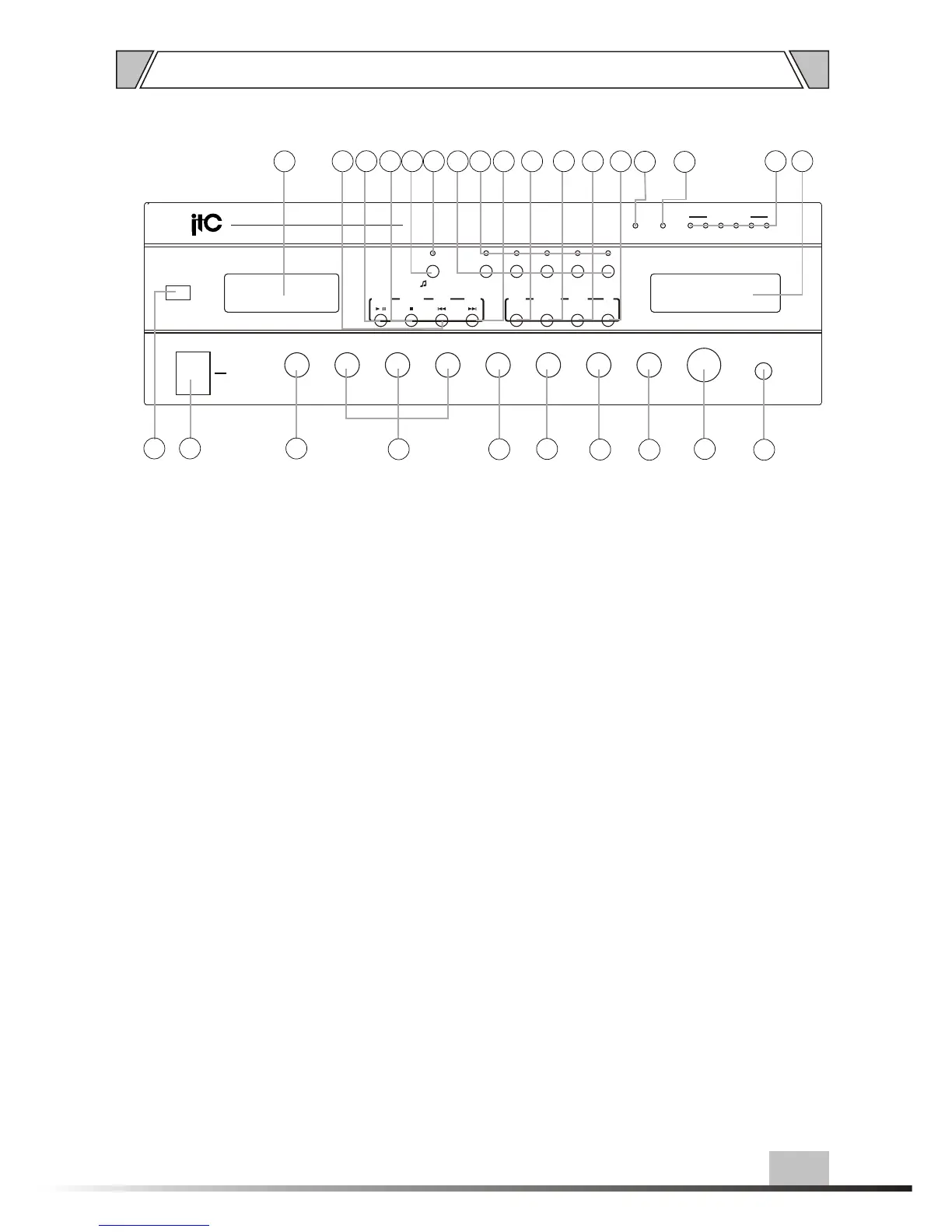

4.1 FRONT PANEL
6
2
4
5
6
7
8
9
10
1112
1314
1516171820252627
14. POWER
Power indicator Indicator green lights when
power on
15. UP
UP search channel (Tuner)
16. DOWN
Down search channel (Tuner)
17. AUTO/MA
Auto/Manual band search button (Tuner)
18. BAND
AM/FM Band select button (Tuner)
19. NEXT
Next button (MP3)
20. ZONE (1~5) LEVEL
Zone (1~5) level indicators
21. ZONE (1~5)
Zone (1~5) button
22. CHIME LEVEL
Chime level indicators
23. CHIME
Chime button
24. STOP/RETURN
Stop/Return button (MP3)
25. PLAY/PAUSE
Play/Pause button (MP3)
26. PREVIOUS
Previous button (MP3)
27. MP3 screen Display the working state of Mp3
1. USB
USB Port Download and store Mp3 song
2. POWER SWITCH
On top of the opening Power
Press the end, power shut down
3. AUX1
AUX volume control (AUX 1)
4. MIC1 \ MIC2 \ MIC3
MIC volume control (MIC1/MIC2/MIC3)
5. MP3
MP3 volume control
6. TUNER
Tuner volume control
7. BASS
Adjust bass response. Rotate clockwise to increase
bass output and anticlockwise to reduce it.
8. TREBLE
Adjust treble response. Rotate clockwise to increase
treble output and anticlockwise to reduce it.
9. MASTER VOL
Master volume control All input level control
10.MIC1
MIC1 input 6.3 Microphone jack input
11.TUNER SCREEN
Display the working state of tuner
12. OUTPUT LEVEL
Level meters 6 output level indicators
13. PROT
Protection indicator
4. NOMENCLATURE AND FUNCTIONS
1
3
192124 23 22
