ITC Audio TI-60MT - Rear Panel

ANTENNA
LOOP ANTENNA
AM
GND
FM 75
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:
AUX 1
OUT
~230V 50HzT3.15AL250V
OUTPUT
COM 4-16 70V 100V
USB
ACCESS
ERROR
PLAYING
MIC2
MIC3
MUTE
EMC INPUT
LINE 1 LINE 2
OFF
ON
PHANTOM
+48V
PHANTOM
+48V
OFF
ON
PRIORITY
CHIME
VOL.
CHIME
2 TONE
4 TONE
ZONE 2
COM 100V
ZONE 3
COM 100V
ZONE 4
COM 100V
ZONE 1
COM 100V
ZONE 5
COM 100V
PRE OUT
AMP IN
7

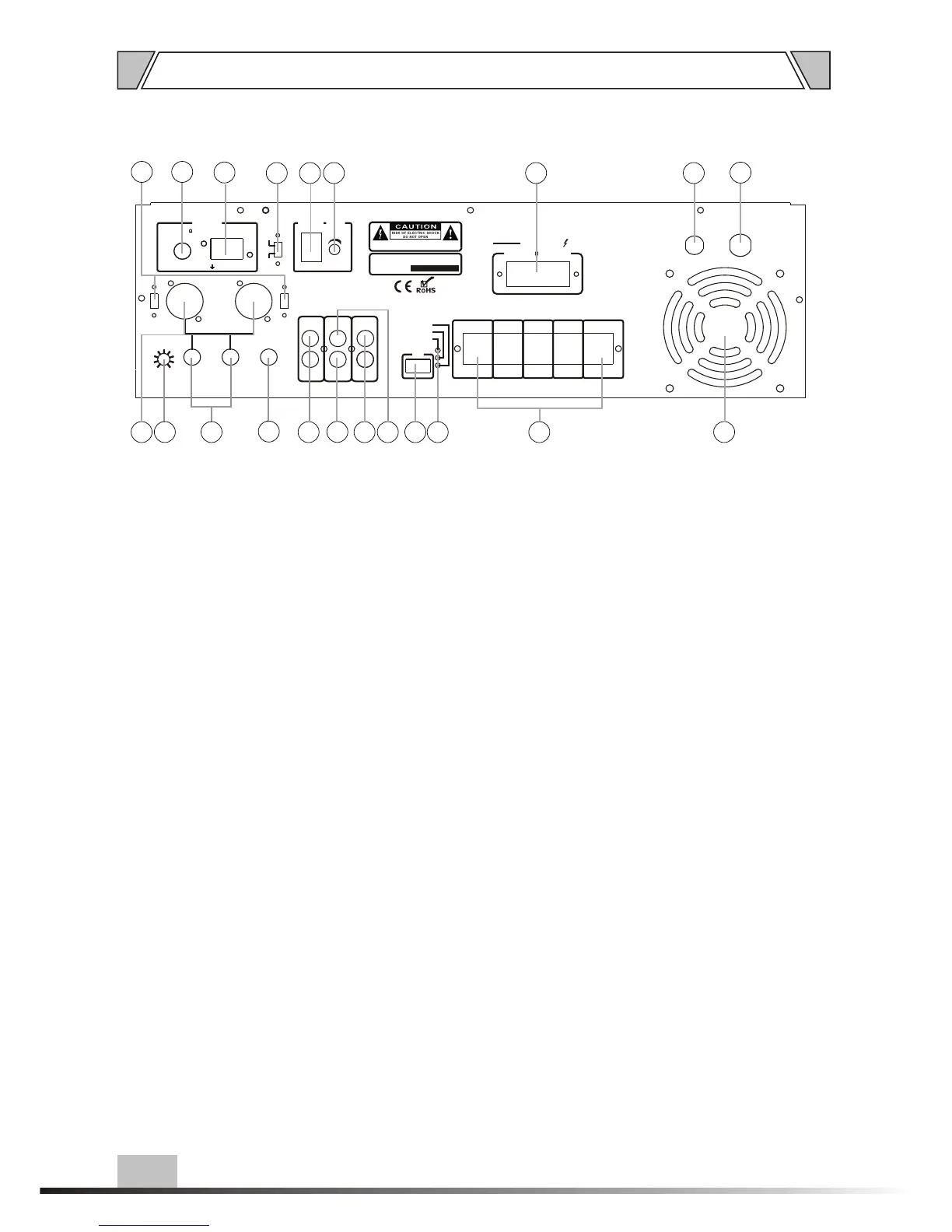

4.2 REAR PANEL
4041
47
29
30
31
32
36
39
38. ZONE(1~5) OUTPUT TERMINAL (100V)
Connecting speakers
39. COOLING FANS
40. ~ 230V/50Hz AC power input
41. AC Fuse
42.SPEAKER TERMINALS
Connectors for 4-16 ohms or 70V and 100V
speaker
43.CHIME VOL.
Chime volume control
44.PRIORITY
Short-circuit protection
45.CHIME(2 Tone\4 Tone)
Chime(2 Tone\4 Tone) volume Control
46.AM-BAND ANTENNA
47.FM BAND 75 OHM ANTENNA
48.+48V PHANTOM SWITCHES
28. MIC2 \ MIC3
MIC balanced inputs
29. MUTE
Mute Microphone 1 mute level control
30. LINE INPUT(MIC2 \ MIC3)
Line Unbalanced inputs
. EMC INPUT
EMC Input Fire alarm signal input
. AUX1
Auxiliary input jack, Non-equilibrium of connecting
peripherals signal
. AMP IN
Amplifier Input
34. OUT
Line output, Non-equilibrium type, the output of
all input signals.
35. PRE OUT
PRE-Amplifier Output
36. USB
USB Port Download and store Mp3 song
37. MP3 INDICATOR
ACCESS: Yellow lights means reading
ERROR: Red lights means error happens
PLAYING: Green lights means Mp3 song is
broadcasting .
31
32
33
4. NOMENCLATURE AND FUNCTIONS
38
46
28
37
42434445
48
33
34 35
TI-60MT/TI-120MT/TI-240MT
