the selected channel. In tracking mode, once the parameters of any one
channel are changed, other channels will change proportionally.
For example, set voltage and current of CH1 and CH2 as follows, CH1:
4V, 1A; CH2: 8V, 2A. Press (Shift) + (Menu) into Menu, and
press to select Comb, VFD will display as follows:
CH1+CH2 CH2+CH3 ALL
Select CH1+CH2 and press to confirm. The VFD will display
“Track Set Success!” and escape this screen after 2S.

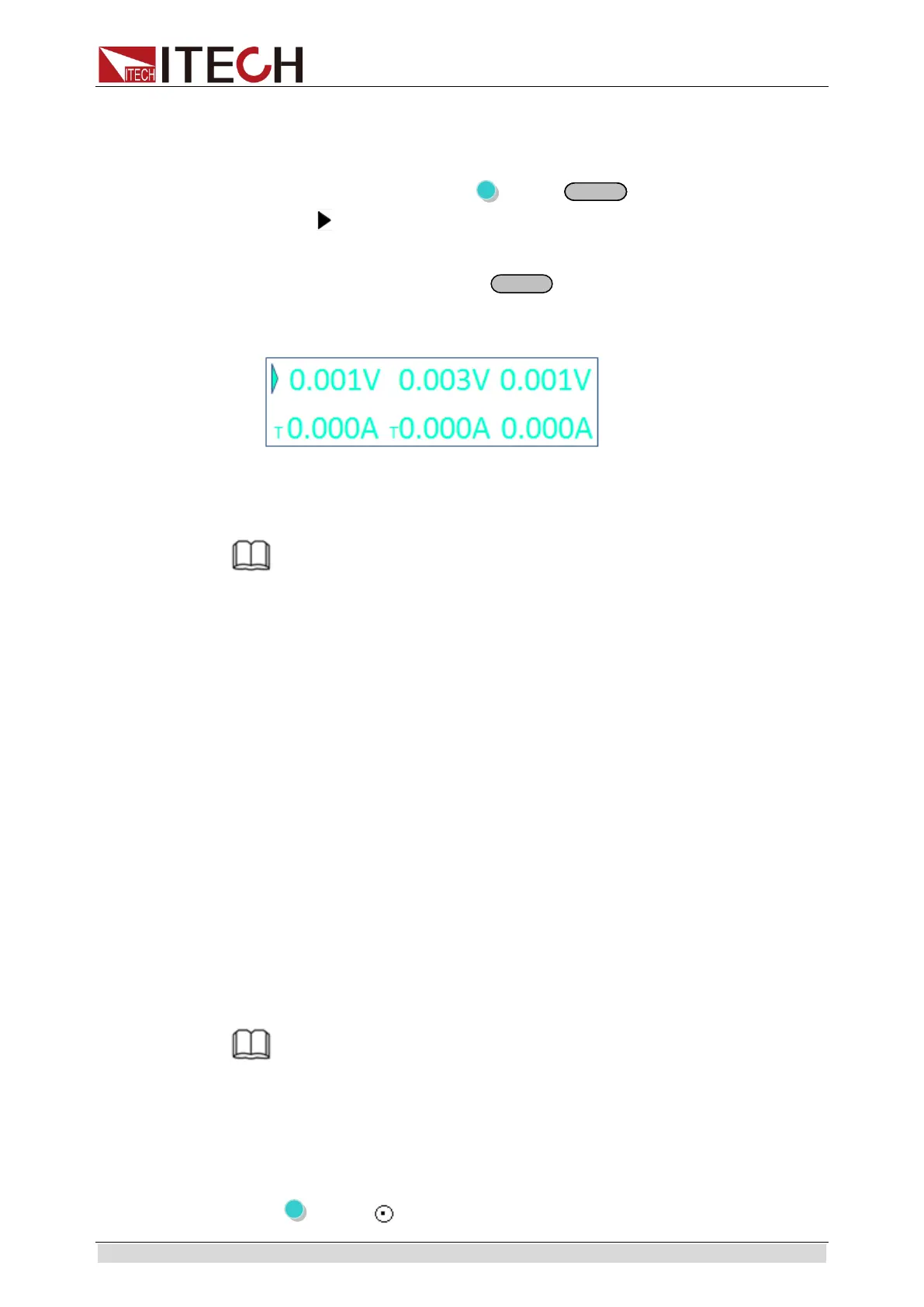

Front display as follows in condition of output off and meter state.
For example: In setting status, if voltage of CH1 is set as 2V, voltage of
CH2 will automatically change to 4V proportionally.
NOTE
Tacking function is disabled to the channel with 0V or 0A setting. In the former example,
if CH2 setting is 0V or 0A, then when CH1 voltage is adjusted to 2V, CH2 will remain
unchanged.
Parameters in Serial, Parallel or Tracking mode
The maximum voltage values in serial, parallel or tracking mode are as
follows, taking IT6322B as an example.
Operate “CH1+CH2” in series, the max voltage is 62V the sum of the max
voltage of CH1 and CH2.
Operate “CH1+CH2” in parallel, the max voltage is the smallest max voltage
of the two channels. It is 31V.
Operate “CH2+CH3” in parallel, the max voltage is the smallest max voltage
of the two channels, it is 6V.
Operate “CH1+CH2+CH3” in parallel, the max voltage is the smallest max
voltage of the three channels. It is 6V.
In tracking mode, the max voltage is 31V.
In serial, parallel and tracking mode, the out timer function will be disabled.
In serial, parallel and tracking mode, the Save/Recall function will be disabled.
NOTE
When changed to serial, parallel or tracking mode, all channels will be OFF and voltage
will be reset to 0V. The channels configured to serial, parallel or tracking mode will be
add a label of “[ ]” in the display.
Power Information
Press (Shift) + , VFD will display power information, the information
