Function and Features

[Enter] for confirmation.

5. Press the [Esc] key to exit.

6. DIN40839 appears at the right bottom of the panel.

7. Press [On/Off] to turn on power supply output.

8. Press [Shift]+[Enter] (Trigger) for trigger. The power supply will output

based on set sequence. Trig mark is lit.

 Start up voltage waveform program through user-defined function.

The user can define the startup voltage, ranging from 8V to 32V. When the

waveform program is divided into 8V-16V, the waveform is consistent with

standard 12V; when the waveform program is divided into 16V-32V, the

waveform is consistent with the standard 24V waveform. The waveform

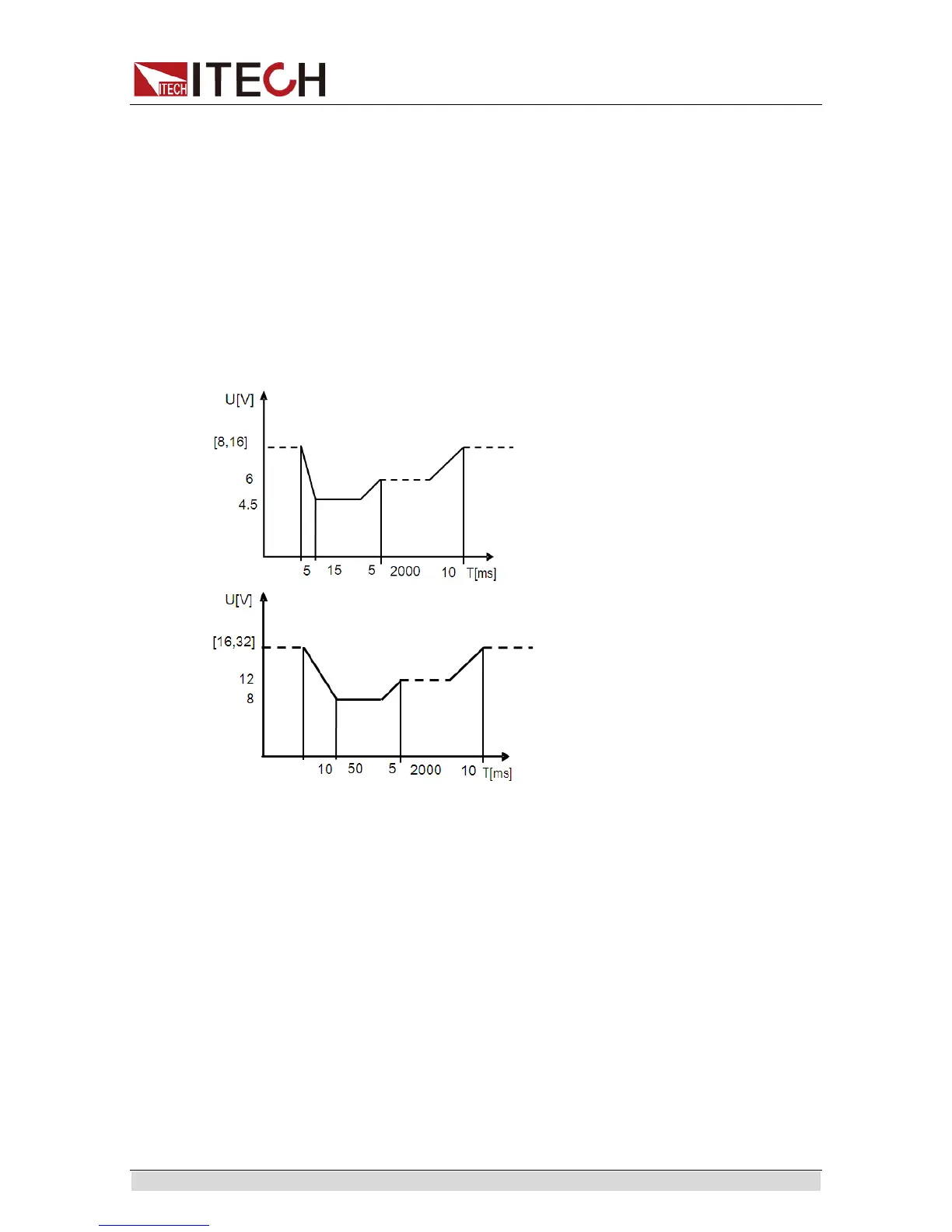

diagram is shown below.

Call the self-defined DIN waveform operation (taking 12.5V voltage waveform

as an example):

1. Press [Shift]+ [I-set] (Function) to enter the Menu operation.

2. Select DIN40839 with Left/Right key and press [Enter] for confirmation.

3. Press Left/Right key to select “User-defined”. Press [Enter] for

confirmation.

4. Set the startup voltage value, V=12.6V. Press [Enter] for confirmation.

5. Turn to Off/On with Up/Down key and select On with Left/Right key. Press

[Enter] for confirmation.

6. Press the [Esc] key to exit.

7. DIN40839 appears at the right bottom of the panel.

8. Press [On/Off] to turn on power supply output.

9. Press [Shift]+[Enter] (Trigger) for trigger. The power supply will output

based on set sequence. Trig mark is lit.
