Function and Features

af=2HZ

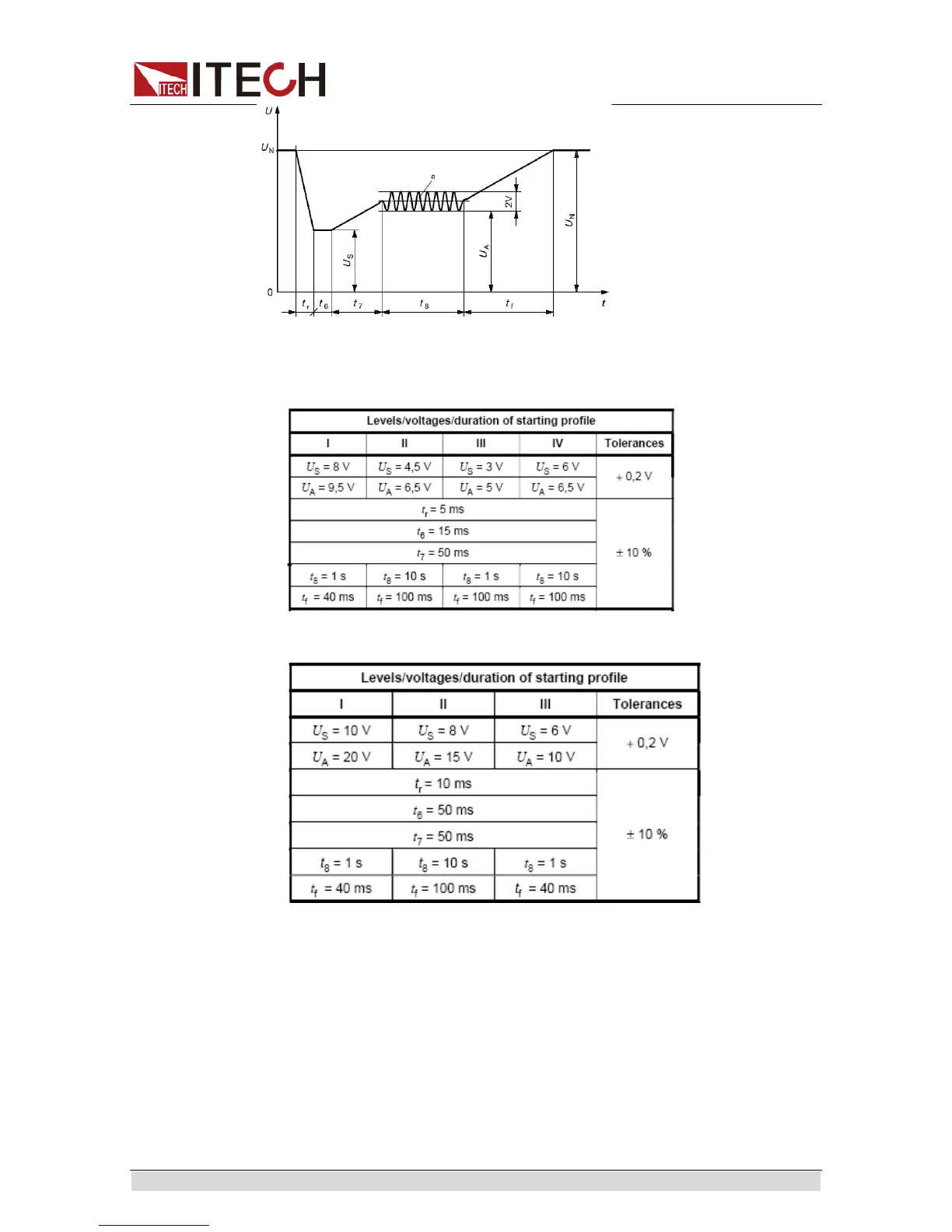

 Standards for 12V system:

Curve should be selected based on actual test requirements. To create

waveform within 12V, follow the set standards as below:

 Standards for 24V system:

How to recall “Starting Profile” waveform from menu (take 12V system as an

example):

1. Press [Shift]+ [I-set] (Function) to enter the menu operations.

2. Press Right direction key to select ISO16750-2, press [Enter].

3. Press Left/Right direction keys to select “Start”, press [Enter].

4. Press Right direction key to “On”, press [Enter].

5. Press Left/Right direction keys to select 12V/24V, and set the levels, press

[Enter].

6. VFD will display ISO-Start in the lower right corner.

7. Press [On/Off], turn on the output.

8. Press [Shift]+[Enter] (Trigger) to generate a trigger signal. The DC source will

output Short voltage drop waveform. The Trig indicating lamp will be lit and
