Quick Start
Check out
Check that the power supply has been destroyed or not. If there is any flaw,
please contact the vendor.
Make sure the AC input voltage of power supply accord with the standards
of your country or area.
If the 2 terms above are right, please turn on the power supply.

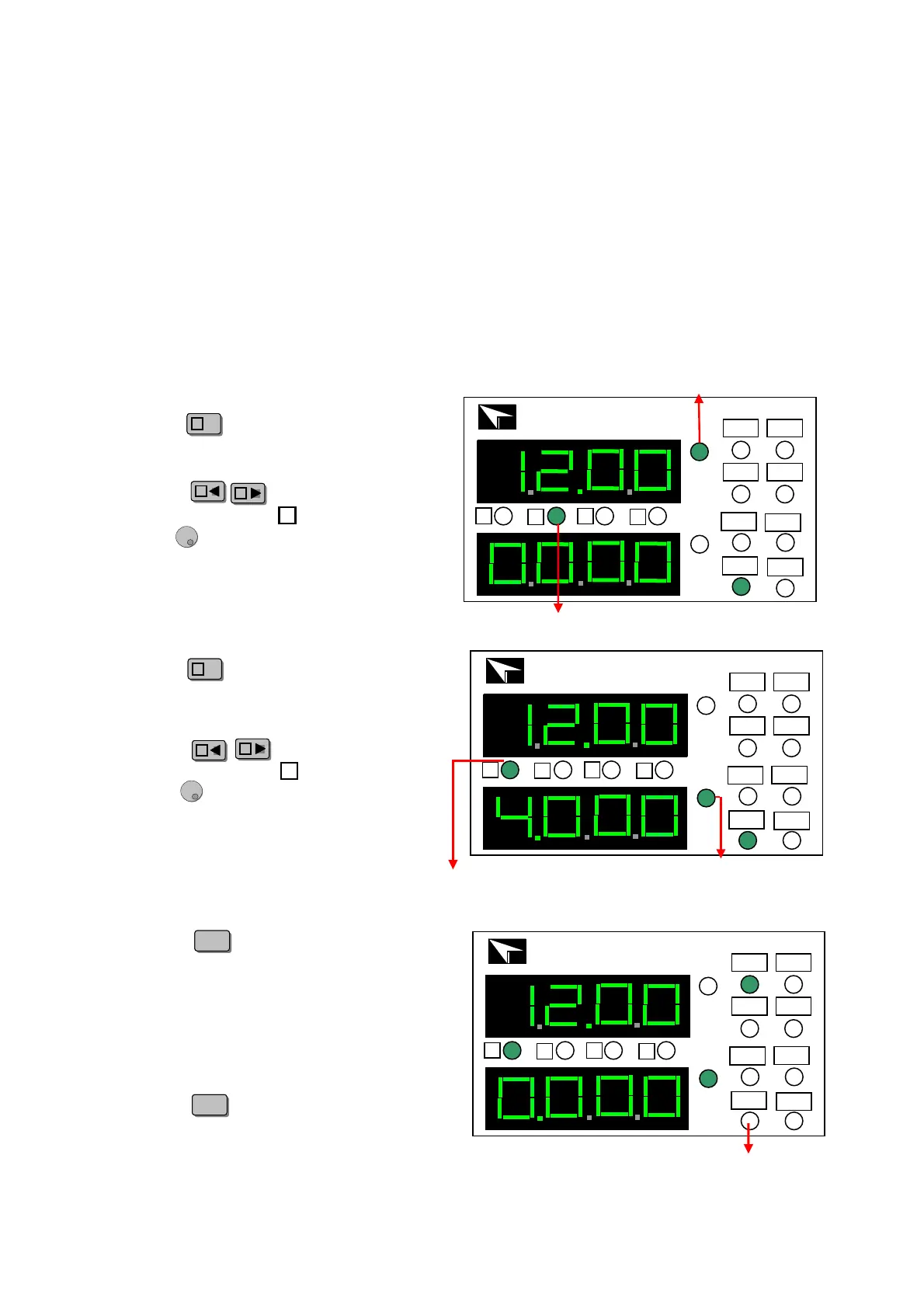

Voltage Set
Preset Voltage
Press
D
V/A
key to make the preset
voltage light “V” bright, and it
means you can set voltage value.
Press
A
B
key, move the
cursor to position
B
, screw the
knob , the voltage value will rise
or decline 1V.
Current Set
V
A
Auto Range DC Power Supply
CV CC
OVP OCP
OFF
Shift
Lock
Prog
A
B
C
D
Step cursor B
IT6720 60V/5A/100W
ITECH
Press
D
V/A
key to make the
preset current light “A” bright, and
it means you can set current value.
Press
A
B
key, move the
cursor to position
A
, screw the
knob , the current value will
rise or decline 1A.
Output Operation
Press
On/Off
key to make the
output state on, and the voltage
and current value on the LED will
wink for 3 seconds, then the LED
will display the actual output value.
And the “ OFF” light will be off, that
means the power supply is working.
Press
On/Off
key again, the output
will be off.
V
A
IT6720 60V/5A/100W
Auto Range DC Power Supply
CV CC
OVP OCP
OFF
Shift
Lock
Prog
ITECH
A
B
C
D
Preset Current Step cursor A
V
A
IT6720 60V/5A/100W
Auto Range DC Power Supply
CV CC
OVP OCP
OFF
Shift
Lock
Prog
ITECH
A
B
C
D
Output OFF Indicator
