Front Panel Continued
G. Chassis Ground Terminal
A proper ground connection must be made before using the inverter.
The inverter is grounded through the grounding terminal located on
the front panel near the 240V outputs.
The chassis ground terminal must be connected to the negative
terminal of the DC input. Please use minimum 1.5mm² cable. Please
consult with a Licensed Electrician to ensure your application meets
current Australian/New Zealand standards.

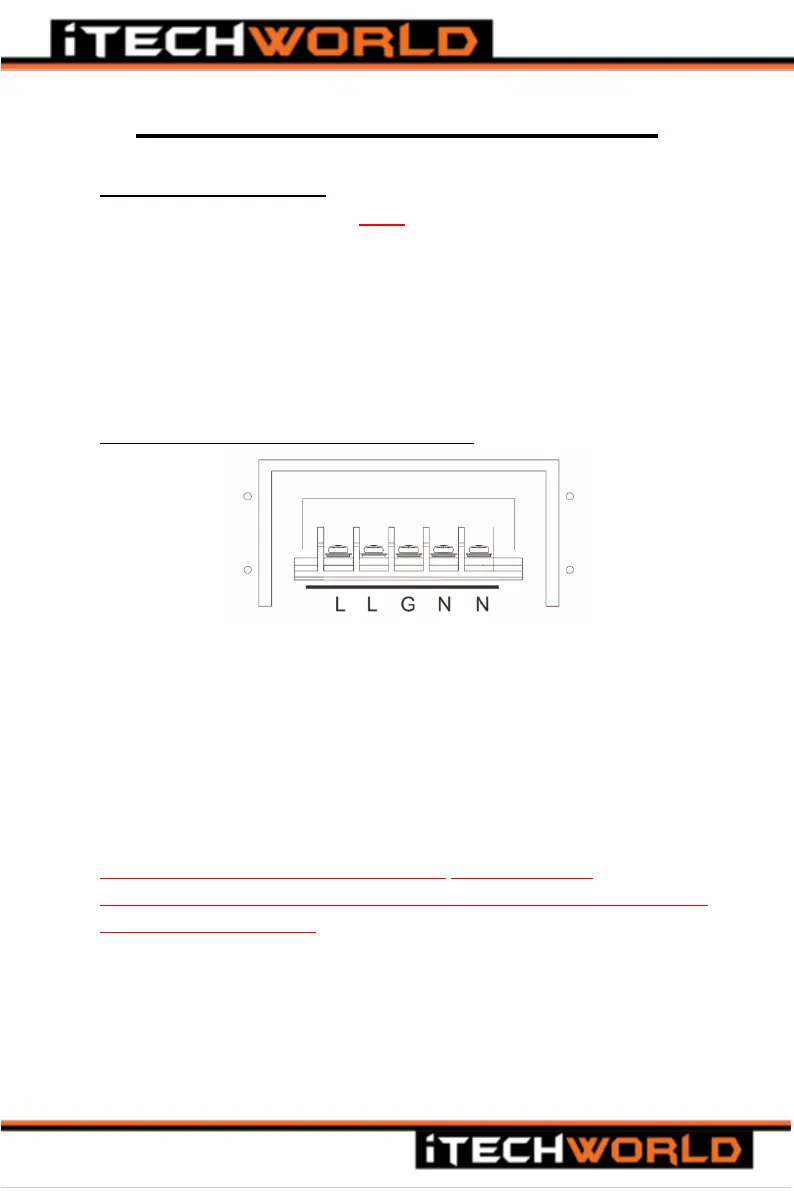

H. 3000W inverter hard-wire terminal block
Figure 4- 3000W inverter hard-wire terminal block
Connection designations:
L- Live/Active G- Ground/Earth
N- Neutral
When using loads requiring 15Amps or more, the hard-wire
terminal block must be used.
Make sure the terminal block cover is installed prior to
turning on the inverter.
DANGER ELECTRICAL SHOCK HAZARD: ONLY LICENSED
ELECTRICIANS ARE PERMITTED TO CONNECT LOADS TO THE HARD-
WIRE TERMINAL BLOCK
