14. Assemble planetary gear assy.
- Assemble on gear (22) bearing cups (21) and (23)
using tool CA715827.
- Assemble bearing cone (21) on planetary gears
carrier (12) pin. Assemble gear (22) to gear carrier (12).
- Assemble bearing cone (23).
- Assemble pin (24).
- Assemble washer (25).
- Apply sealant to screw (17).
See: sec. C.4.
- Tighten screw (17) to requested torque.
See: sec. C.4.
- Assemble planetary gear assy on trumpet.
See: fig.2 and sec. E.1 (Final drive).

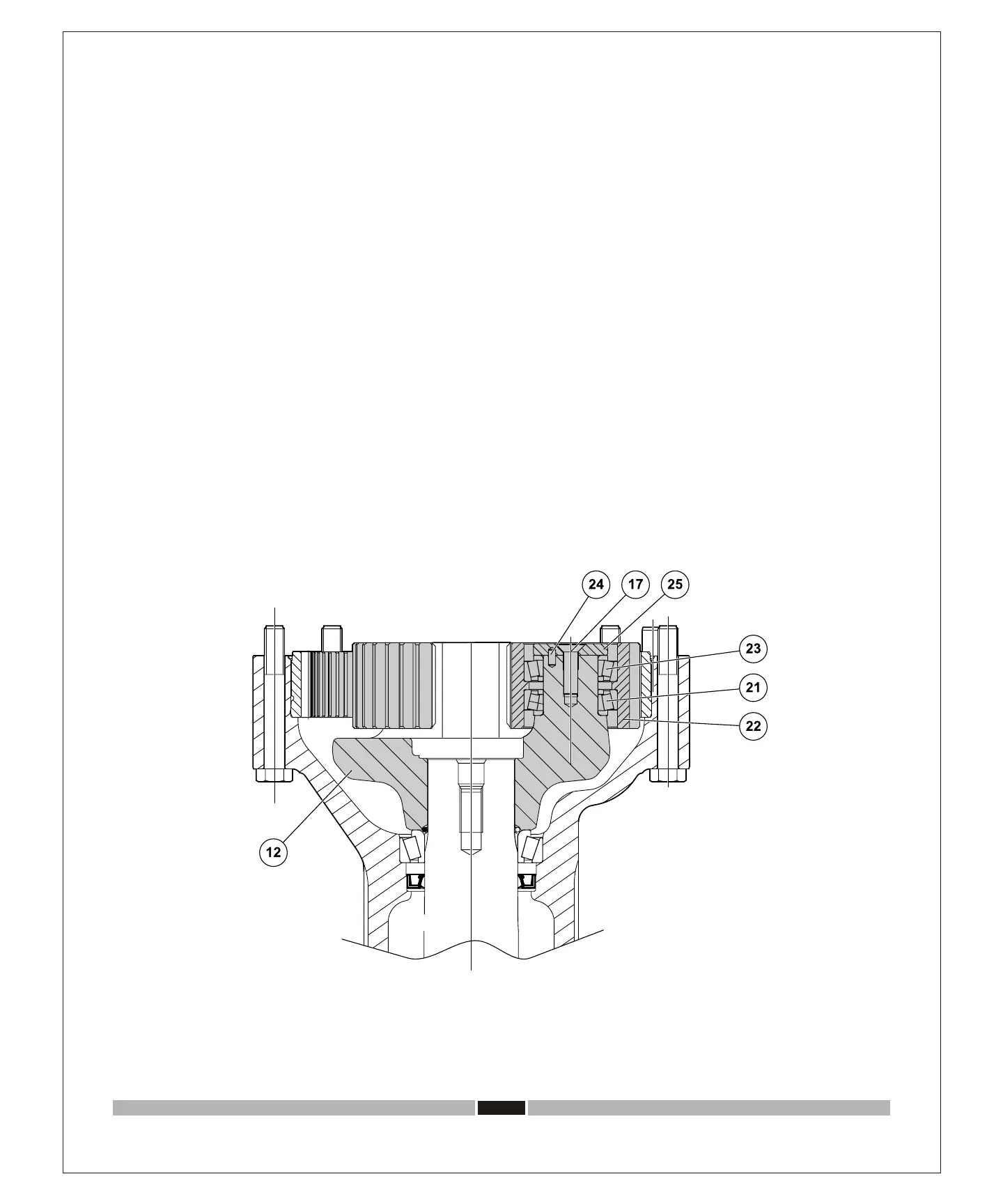

Fig.2
