ITL SERVICE MANUAL
B-57

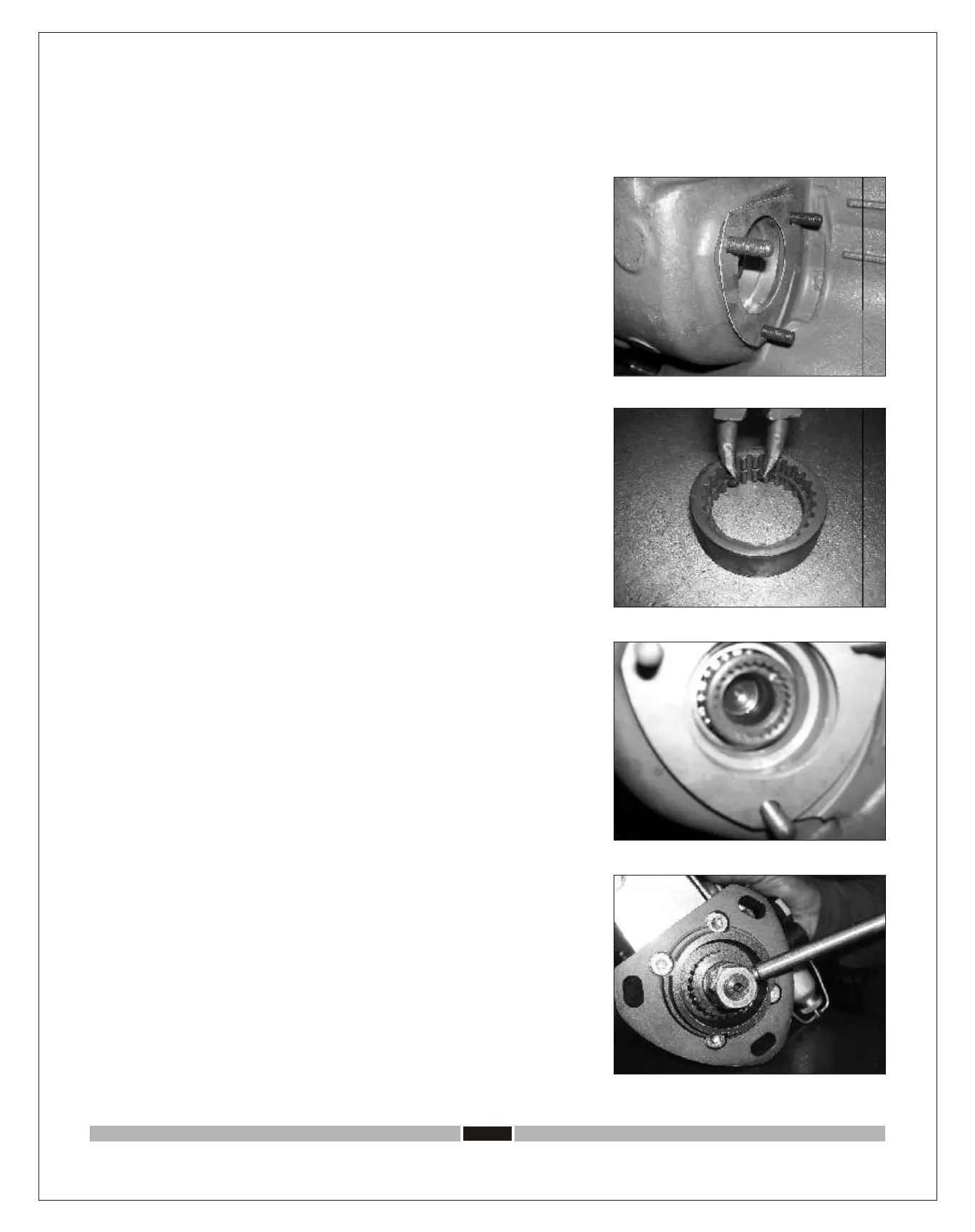

Step 105
Fit Circlip in coupling bush
Step 104
Assembly procedure of FIP with IPD shaft
Place the FIP gaskets on Crankcase.
Step 106
Place coupling bush on IPD shaft in such a way that larger teeth of
coupling bush meshes with respective teeth of IPD shaft.
Step 107
Mount Coupling gear on FIP shaft And tight properly and
Torque the coupling Gear upto 6 Kg-m.
