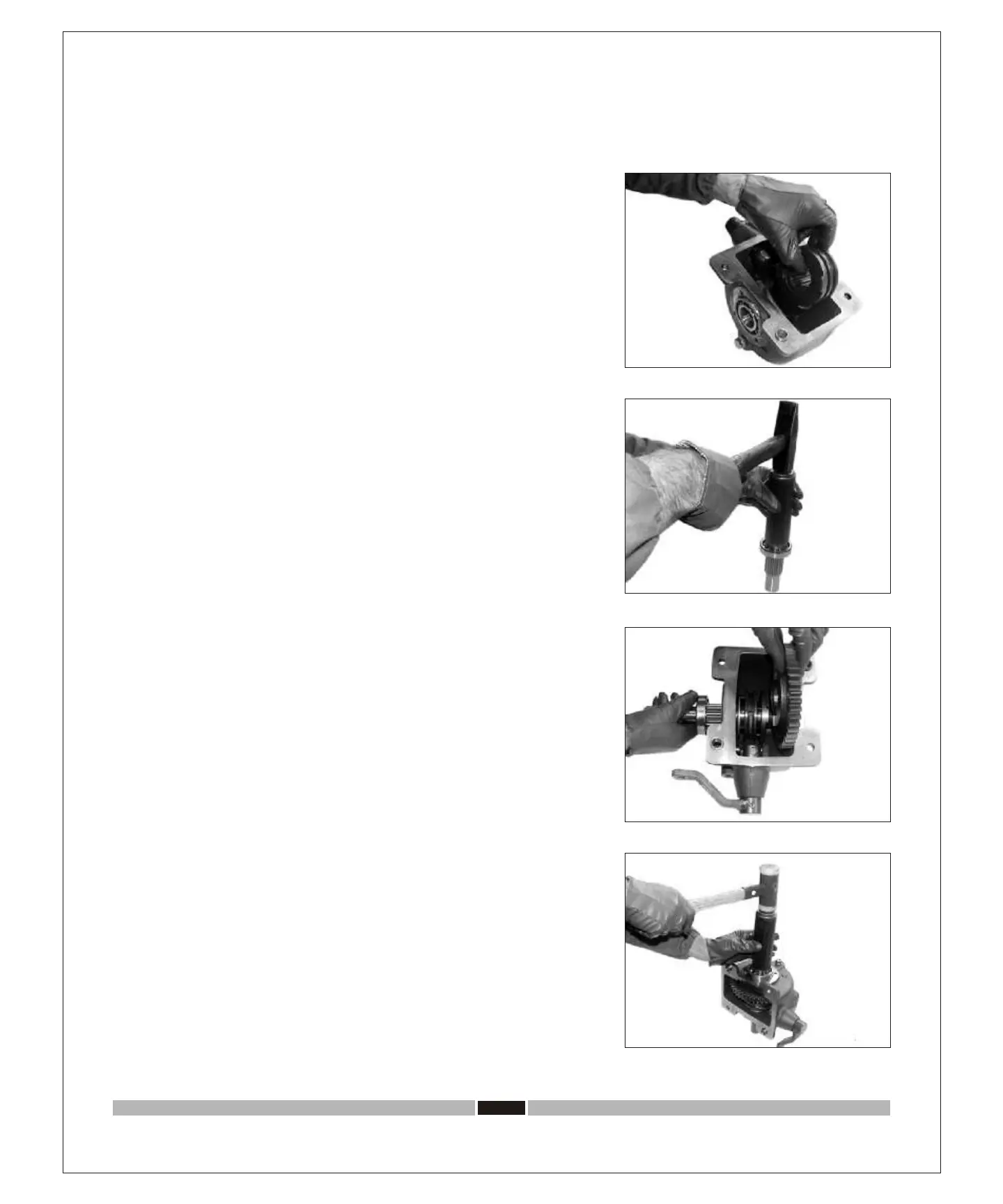

Remove the clutch sleeve (9) to the fork (16).

Assemble the bearing (2) onto the shaft (3) with the special tool

CA715623 and a hammer.

See: sec. E.1. (4WD mechanical drop box).

Insert the spacer (10) and gear (11) in the housing.

Assemble the shaft (3) with bearing (2) as shown.

Insert the bearing (2) and shaft (3) into the housing (15) with the special tool

CA715623 and a hammer.

See: sec. E.1. (4WD mechanical drop box).

FIG. 20

FIG. 21

FIG. 22

FIG. 23
