E-14

Apply prescribed sealant on the screw thread (28).

Adjust the screw (28) position to have 35 Nm of

clutch torque value(M) on the lever axis.

Assemble the nut (27) and tighten it to the prescribed

torque. See: sec. C.4.

Clean with care the covers (14) and (19).

Insert the seal ring (1) into the cover (14) with the special tool CA715621 and a

hammer.

Lubricate the seal ring (1).

See: sec. C.4 and sec. E.1 (4WD mechanical drop box).

Apply prescribed sealant on the covers (14) and (19) on the housing/cover contact

surface.

See: sec. C.4.

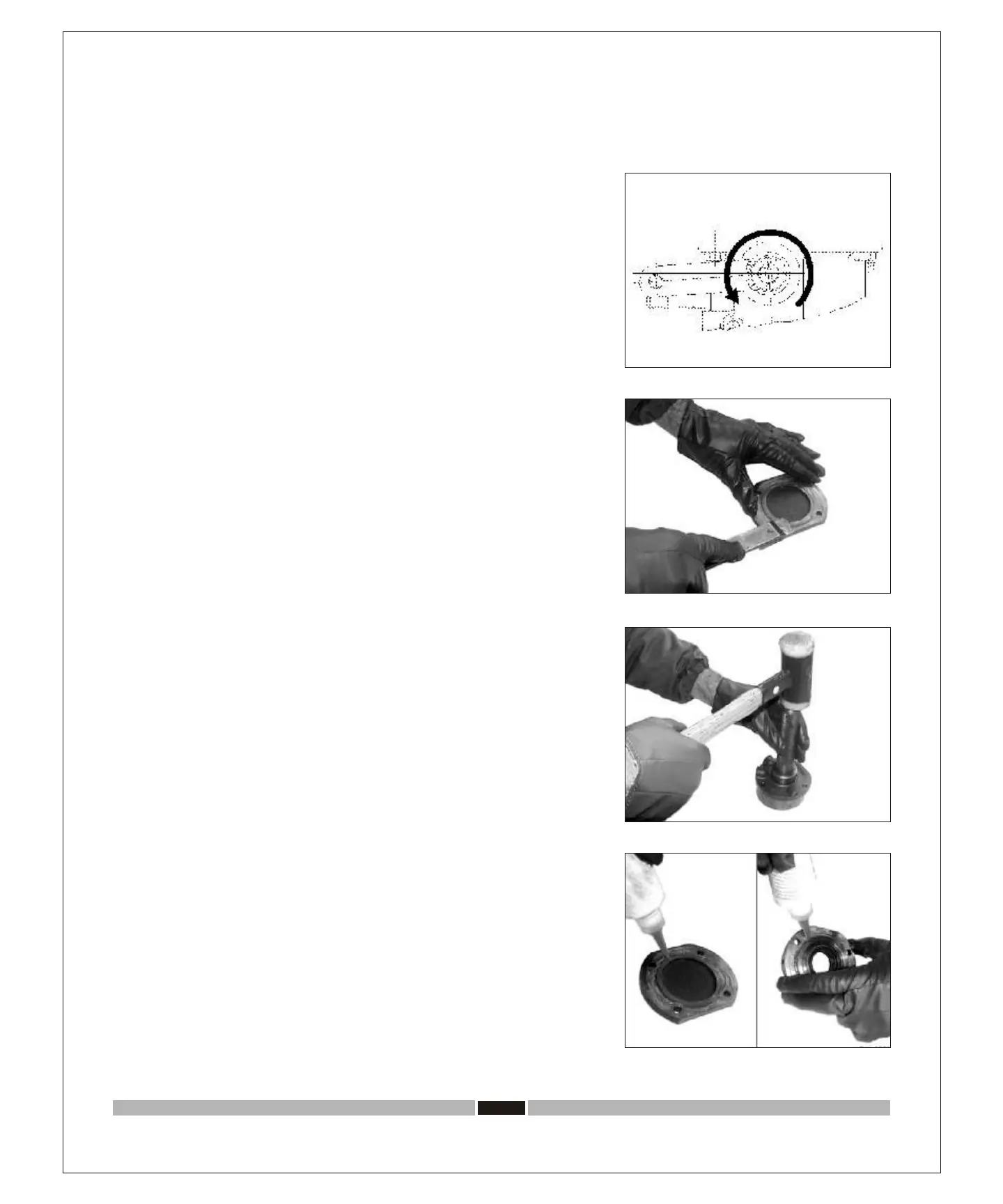

FIG. 24
