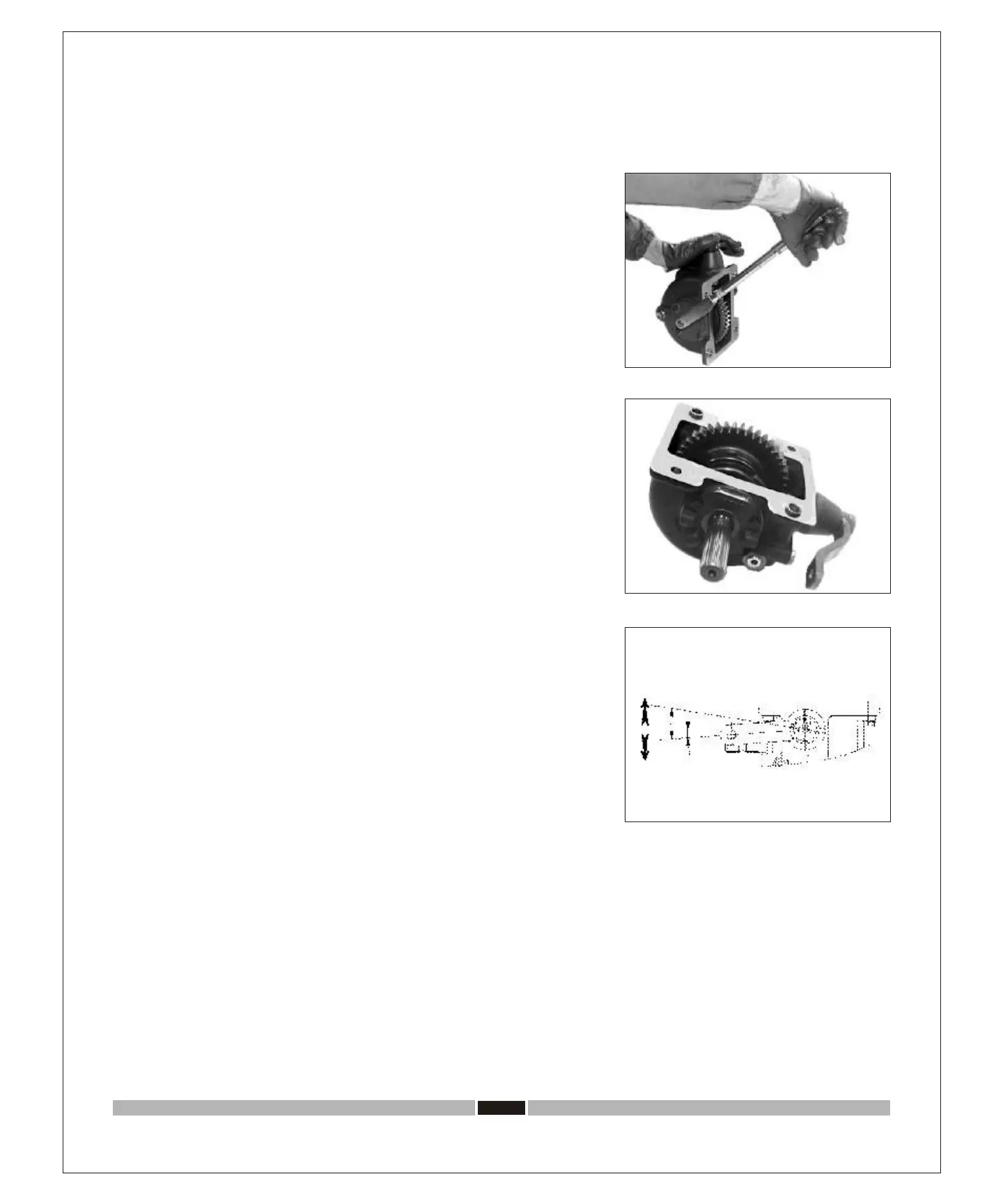

Assemble the covers (14) and (19) to the housing (15) with

Fastening screws (13) and (20).

Tighten the fastening screws to the prescribed torque.

See: sec. C.4.

Apply prescribed sealant on the housing contact surface.

Assemble the housing to the vehicle transmission group with bolts (23).

Tighten the bolts to the prescribed torque.

Fill the vehicle transmission group with specified oil.

See: sec.C.4, C.7 and C.8.

Observe indicated 2WD/4WD clutch parameters.

FIG. 28
