3 Mounting and accessories
The Hydrovar-
Watercooled
has to be directly mounted in the pressure line. The cooling of the
unit is done through the handled liquid.
The Hydrovar-
Watercooled
has two connections with 1” female thread and one connection
with 1“ male thread.
The direction of the flow can be chosen in any direction.
The 3
rd
(unused) connection can either be closed (use incl. closing cup) or can be used as the
connection for the pressure tank.

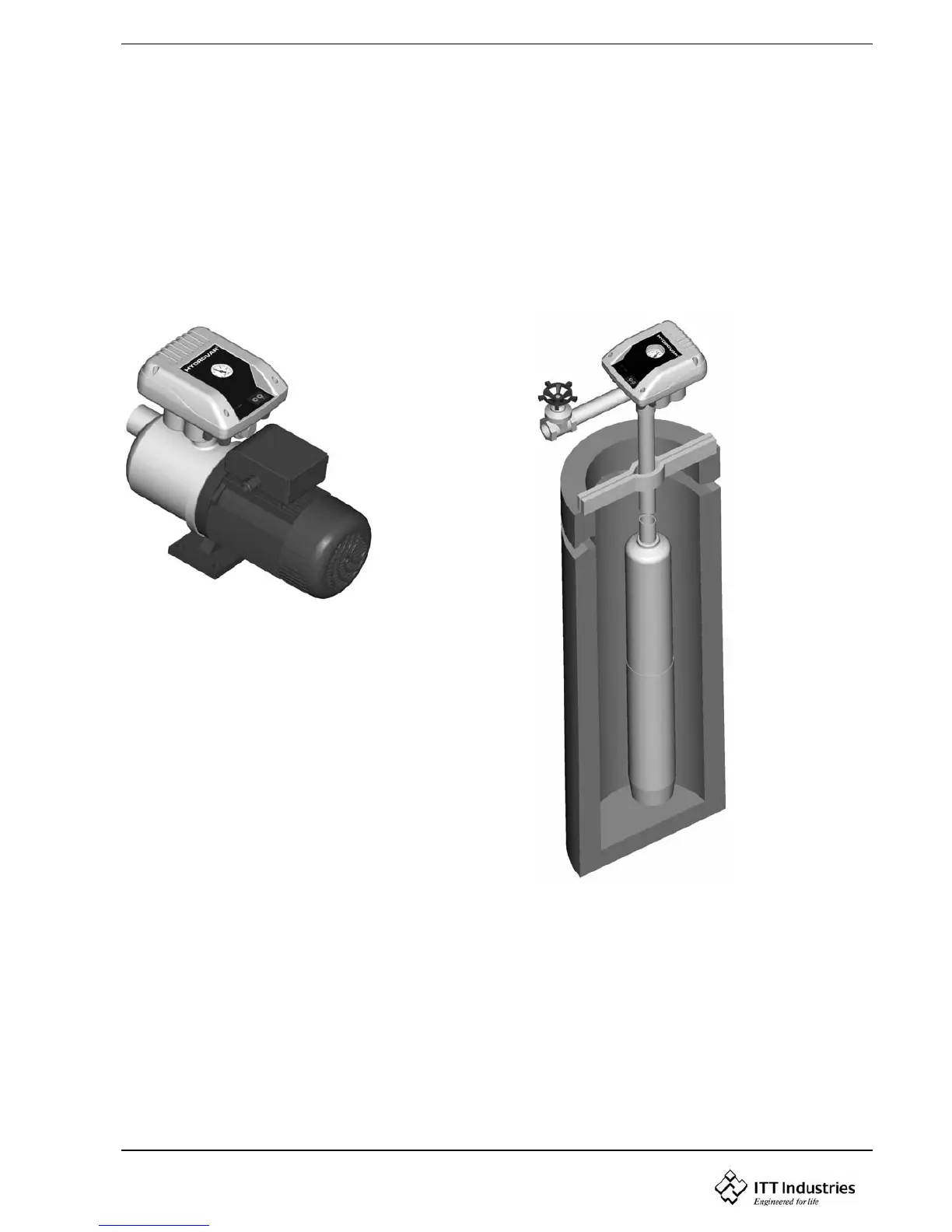

Direct mounting on the pressurized side
of a dry pump
Indirect mounting in the pipe work with a submersible pump
