6

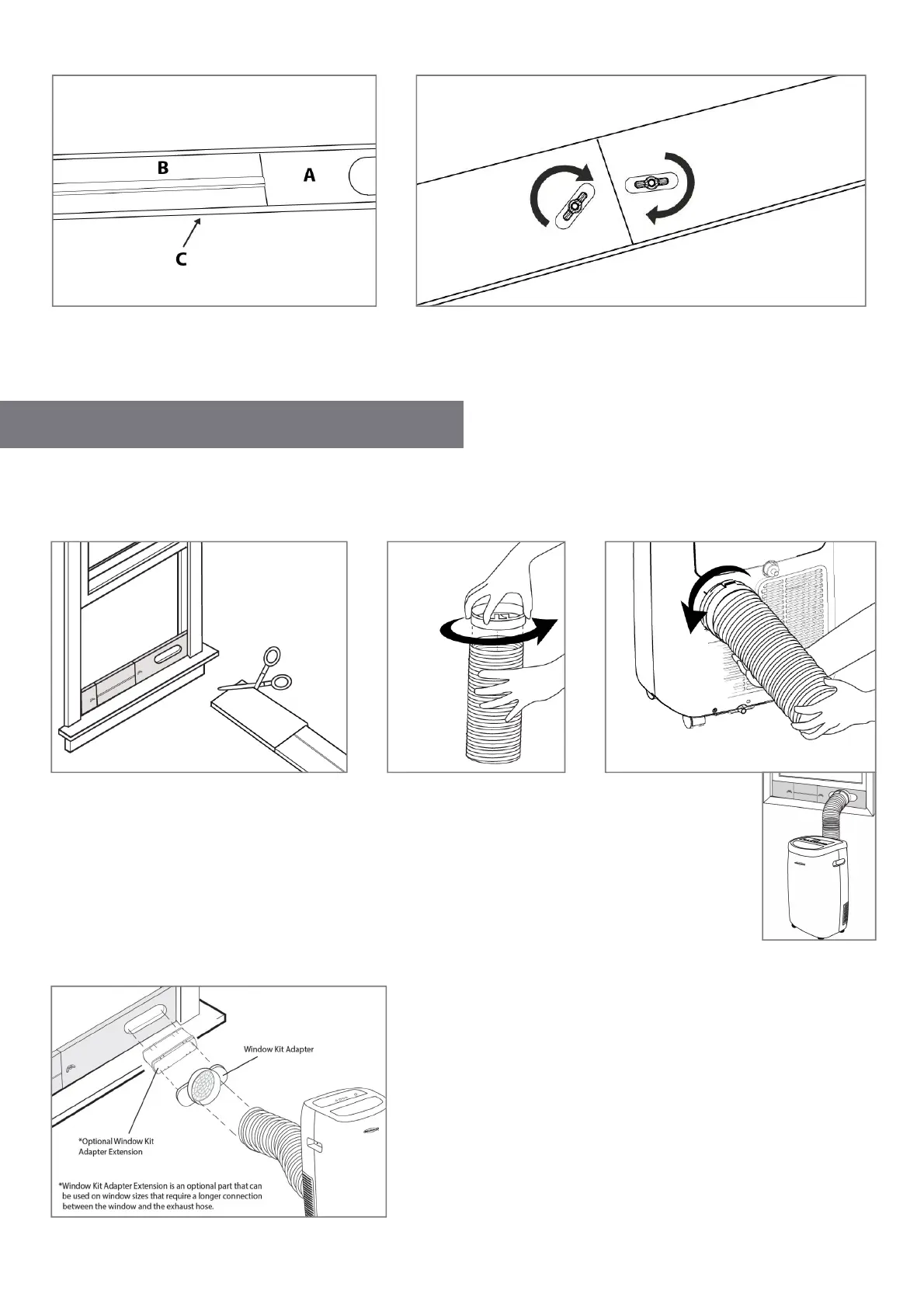

INSTALLING THE WINDOW KIT
The window venting kit must be installed in order for your portable air conditioner to function properly. It has been
designed to fit into most vertical and horizontal window openings, as well as sliding glass doors up to seven feet long.
NOTE: Make sure you have fully assembled the window kit before installing it.
5. Panels A and C should now be connected
by Panel B as shown below.
1. Open the window or door and adjust the
length of the window kit panels (15)
to fit the opening. If necessary, mark the
kit and cut one end down to properly fit
the opening.
2. Screw the exhaust hose
connector (11) onto the
exhaust hose (10)
as shown.
4. Attach the exhaust hose (10) to
the window kit adapter (13/13a),
and then attach the adapter to
the window kit panel (15).
If you choose to use the optional
window kit adapter extension (14),
attach one end to the window kit
adapter, and then attach the other
end of the adapter extension to
the window kit panel. Close the
door or window tightly.
3. Screw the other
end of the exhaust
hose connector (11)
over the discharge
opening (7) on the
rear of the unit.
Extend the exhaust
hose (10), keeping
it as short and straight as possible.
6. Complete the assembly by tightening the wing nuts all the
way down.
