Step 2:

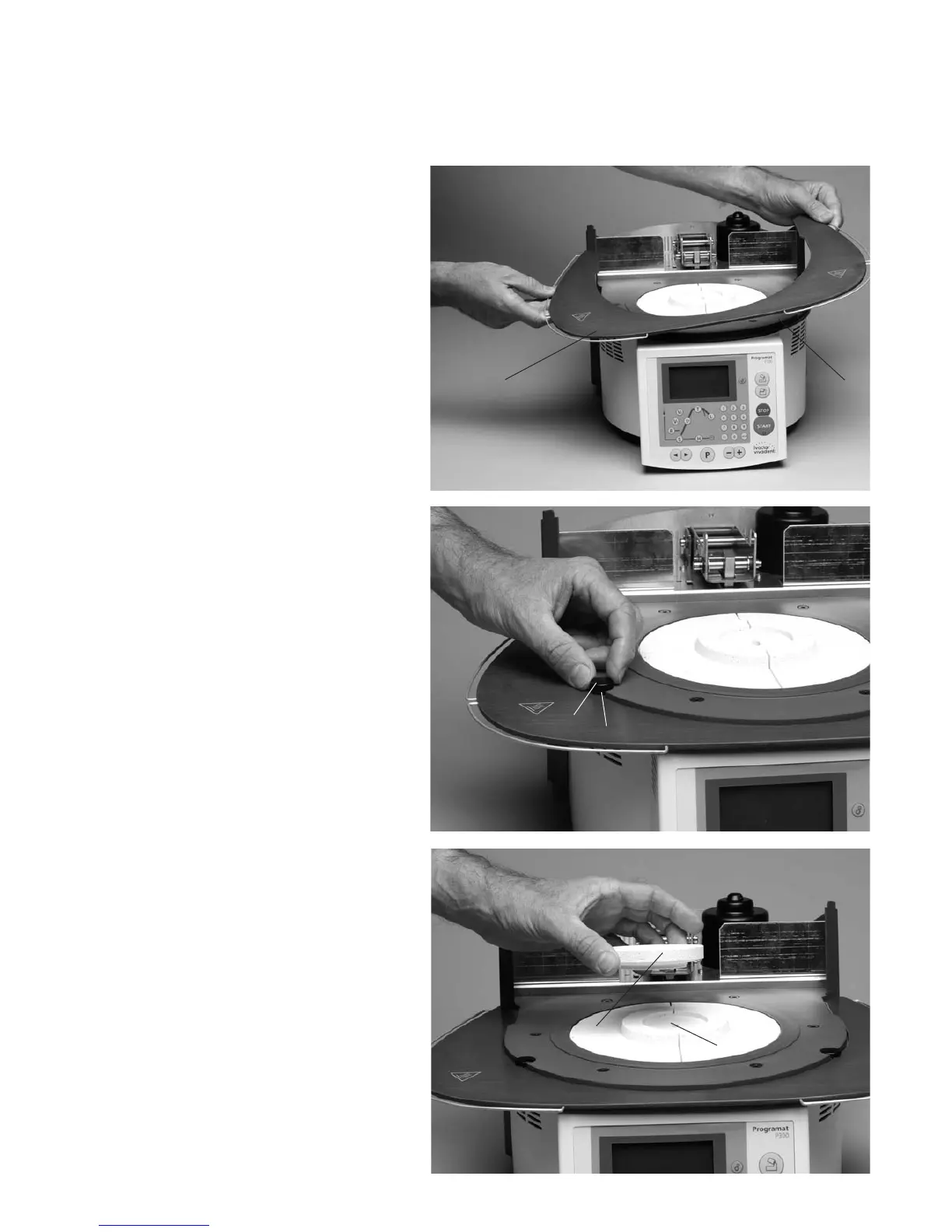

Placing the firing plate (5)
Place the firing plate (5) on the firing plate holder
(48).
Secure the cooling tray (34) with the two screws
(35) including the silicone rest (47).
Place the cooling tray (34) on the frame plate (7).
Make sure that the cooling tray (34) is correctly
positioned on the frame plate (7).
7
35
47
5
48
34
