IVT AE-X12JR-N User Manual

AYXP12JHRN
11
NO. PARTS CODE P R I C E
RANK
NEW
MARK
PART
RANK
DESCRIPTION

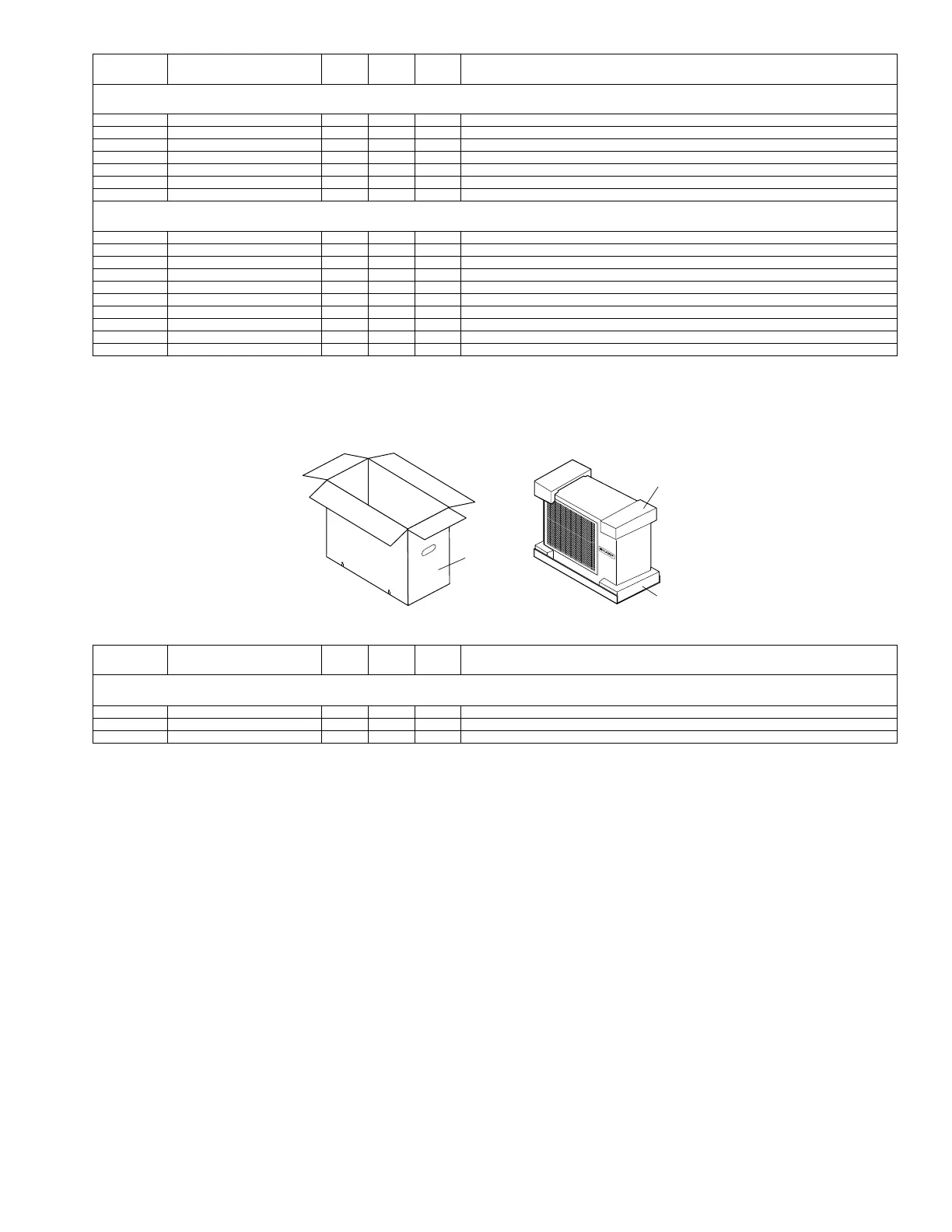

[9] OUTDOOR PACKING PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
3-14 GLEG-A099JBE0 COMPRESSOR CUSHION
3-15 LX-NZA313JBEZ SPECIAL NUT
3-17 MSPR-A046JBE0 PROTECTOR SPRING
3-18 PCOV-A833JBEZ TERMINAL COVER
3-19 PSEL-A142JBEZ TERMINAL GASKET
3-20 PSPF-A977JBEZ COMPRESSOR COVER
3-21 PSPF-B083JBEZ COMPRESSOR COVER
[8] OTHER PARTS
1-2-1 QFS-CA001JBZZ FUSE 20A 250V
1-2-2 QFS-GA051JBZZ FUSE 2A 250V
1-2-3 QFS-GA052JBZZ FUSE 3.15A 250V
1-2-4 QFS-CA002JBZZ FUSE 15A 250V
1-2-5 QFS-GA064JBZZ FUSE 1A 250V
2-50 PSEL-C345JBEZ SEAL
2-51 PSEL-C684JBEZ SEAL
2-52 PSEL-C767JBEZ SEAL
2-53 PSEL-C769JBEZ SEAL
3-7-1 RMOTSA023JBZZ COIL
[9] OUTDOOR PACKING PARTS
90-1 CPADBA048JBKZ TOP PAD ASS'Y
90-2 CPADBA049JBKZ BOTTOM PAD ASS'Y
90-3 SPAKCC557JBEZ PACKING CASE
[7] OUTDOOR UNIT PARTS
90-3
90-2
Front si
de
90-1
