[2] DISASSEMBLY OF OUTDOOR UNIT

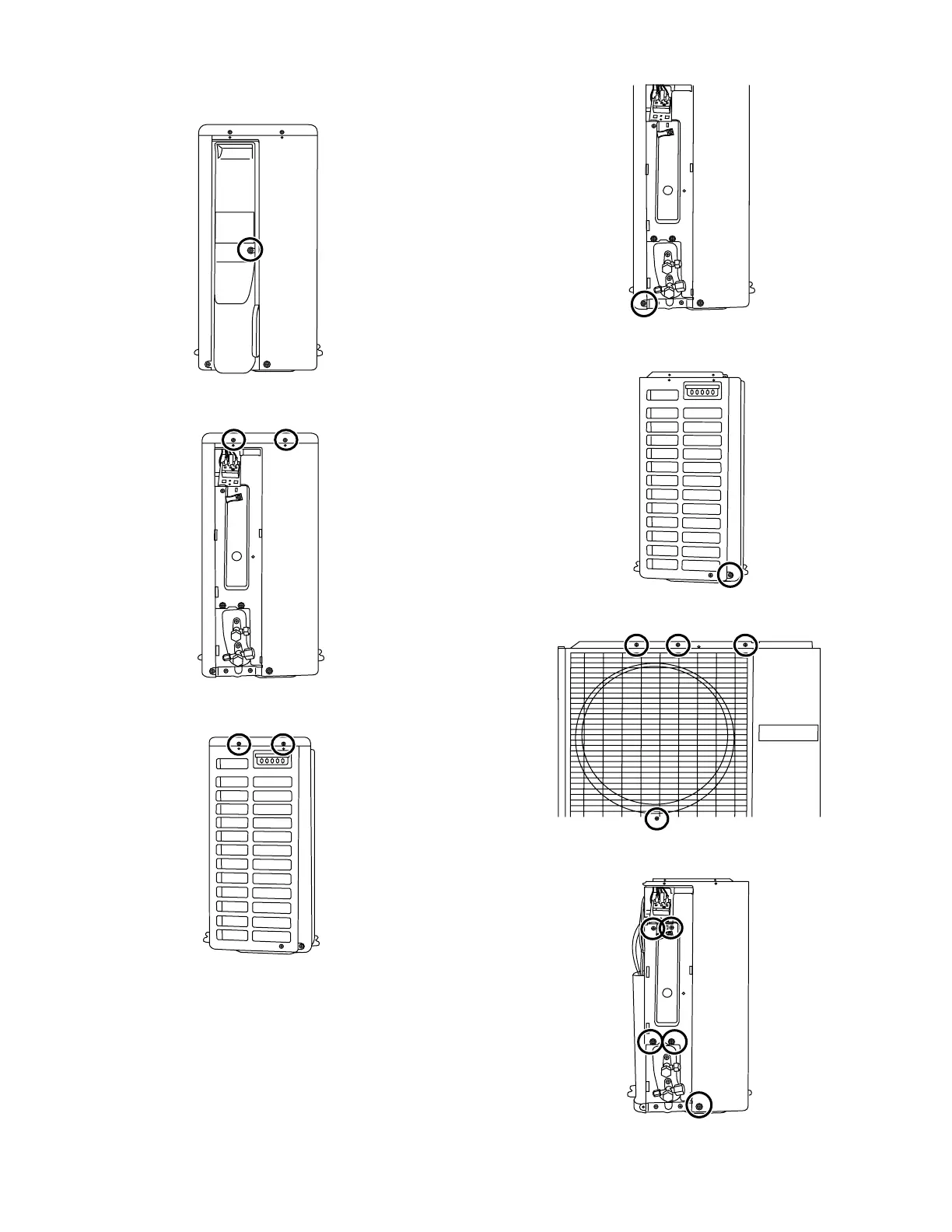

1) The fixed screw of control box cover is removed and control box
cover is removed.
2) The 2 screws on the right-hand side of top plate ass’y is removed.
3) The 2 screws on the left-hand side of top plate ass’y is removed.
4) The screw on the right-hand side of front panel is removed
5) The screw on the right-hand side of front panel is removed
6) The 4 screws of the front of a front panel is removed.
7) The 5 screws on the right-hand side of side cover R is removed.
