AYXP12JHRN

5 – 11

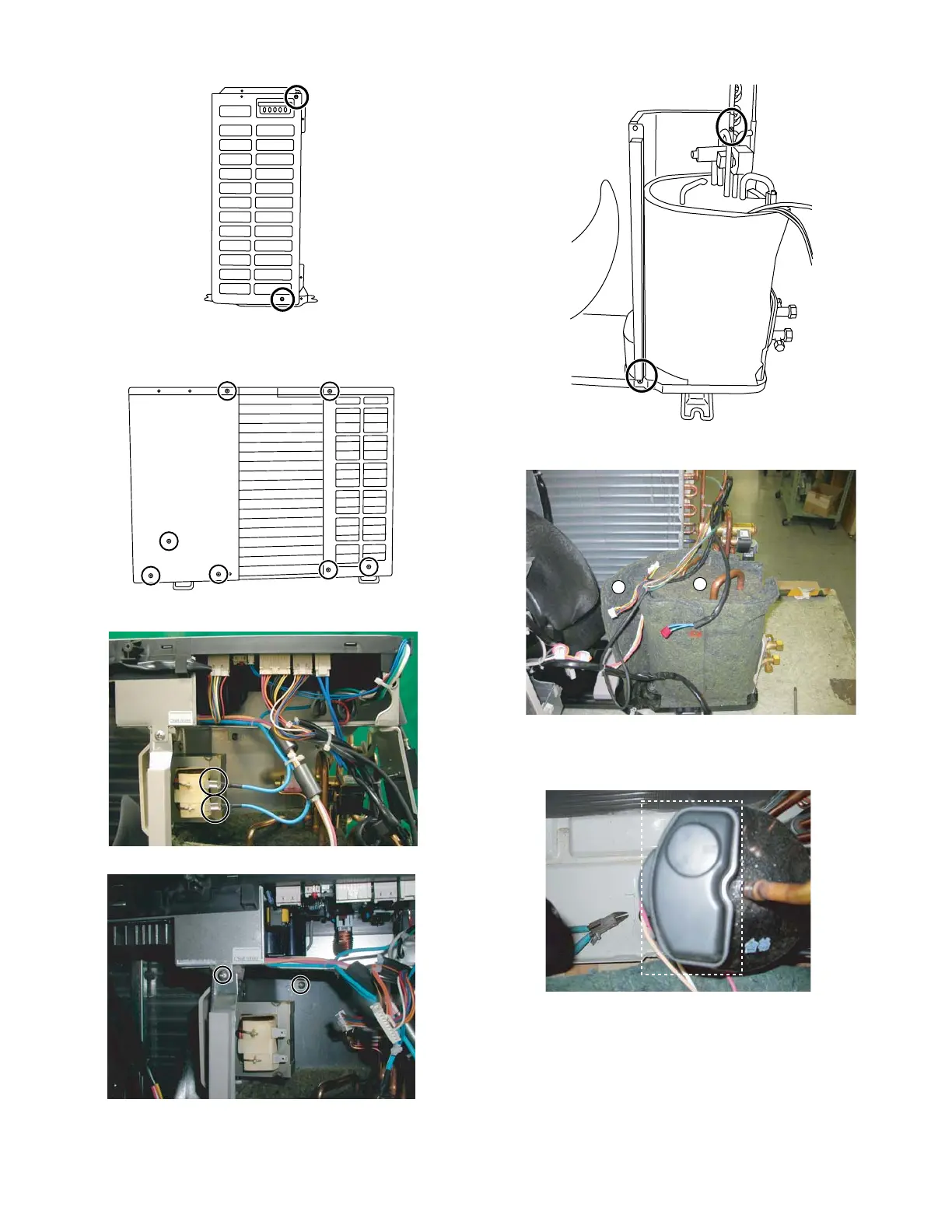

8) The 2 screws on the right-hand side of side cover L is removed.

9) The 7 screws of the side cover L and side cover R back is

removed.

10)The connectors in the control box BOX and reactor is removed.

11)A control box BOX fixed 2 screws is removed.

12)A bulkhead plate fixed 2 screws is removed.

13)The compressor covers 1, 2 removed.

14)A nut is removed and a terminal cover is removed.
