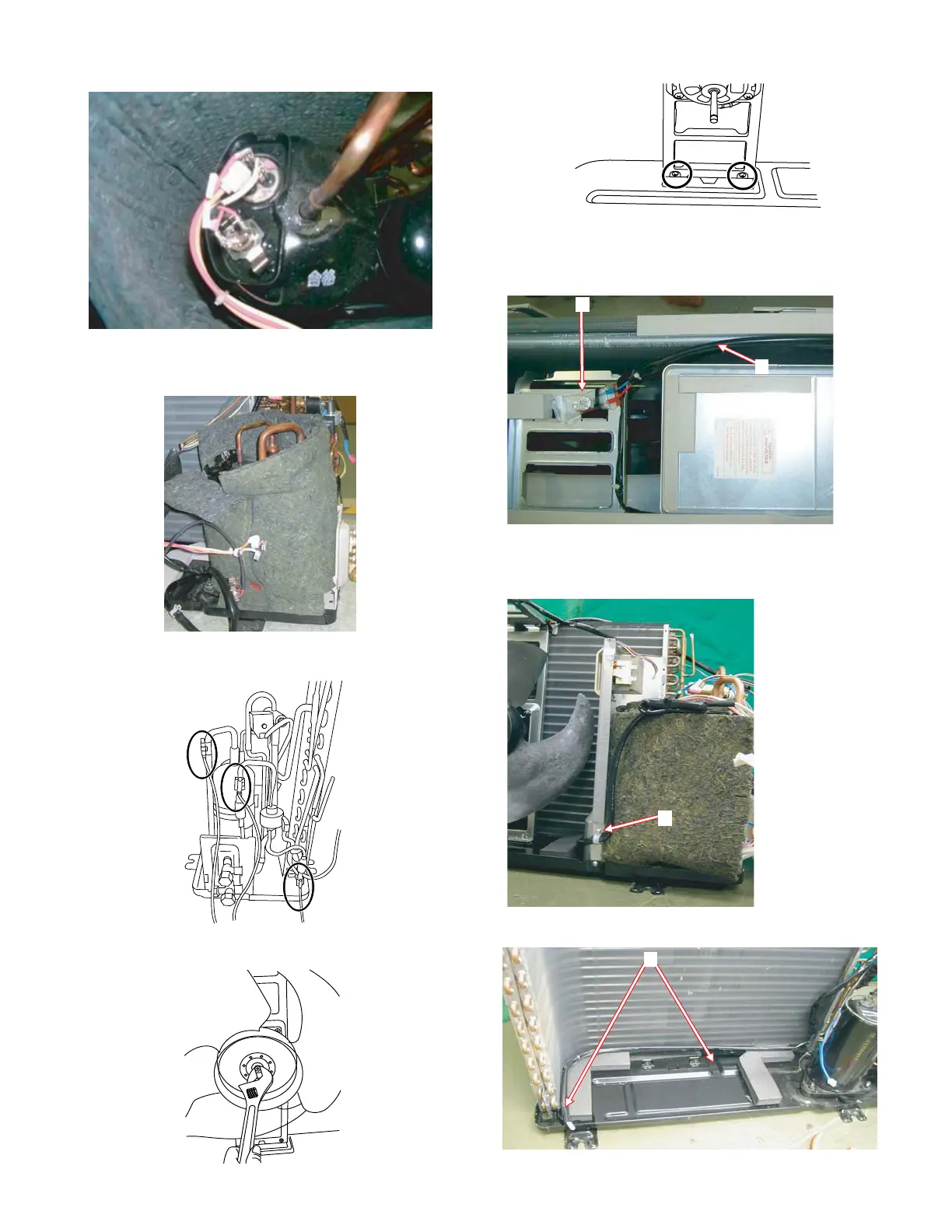

15)A lead wire, a thermistor, and a cover gasket are removed.
16)The compressor cover is removed.
17)A thermistor is removed. (1 place)
18)An outdoor fan is removed.
19)The fixed 2 screws of a motor angle is removed.
– Disassembly of Heater(CHET-A025JBKZ) Unit
1) Cut the band fixing the bi-metal thermostat.
2) Powercord for bi-metal thermostat.
3) Cut the band which holds together the thermistor cords and
power cord for bi-metal thermostat.
4) Remove screw NK-8K
5) Pull out the heater wire from beneath the heat exchanger
1)
2)
4)
