Ixon IXrouter3 Installation Guide

7
Installing a SIM card *
* Only for variants with a 3G or 4G module
The SIM card slot suits a standard SIM card size (2FF).
Remove power
The SIM card may only be removed or inserted when the IXrouter is powered down.
To insert, push the SIM card into the slot until you feel a click, this is approximately 1mm inside the
device. Release the card and the card will stay in the device. The end of the SIM card should be
aligned with the outside of the enclosure.
To remove, push the SIM card firmly into the slot until you hear a click. Releasing will cause the SIM
card to partially eject, allowing you to easily take out the card.
Power supply
The IXrouter must be powered by a IEC/UL/EN/60950-1 certified Limited Power Supply (LPS) or for
the United States a Class 2 power supply. The LPS power supply is not included in this package.

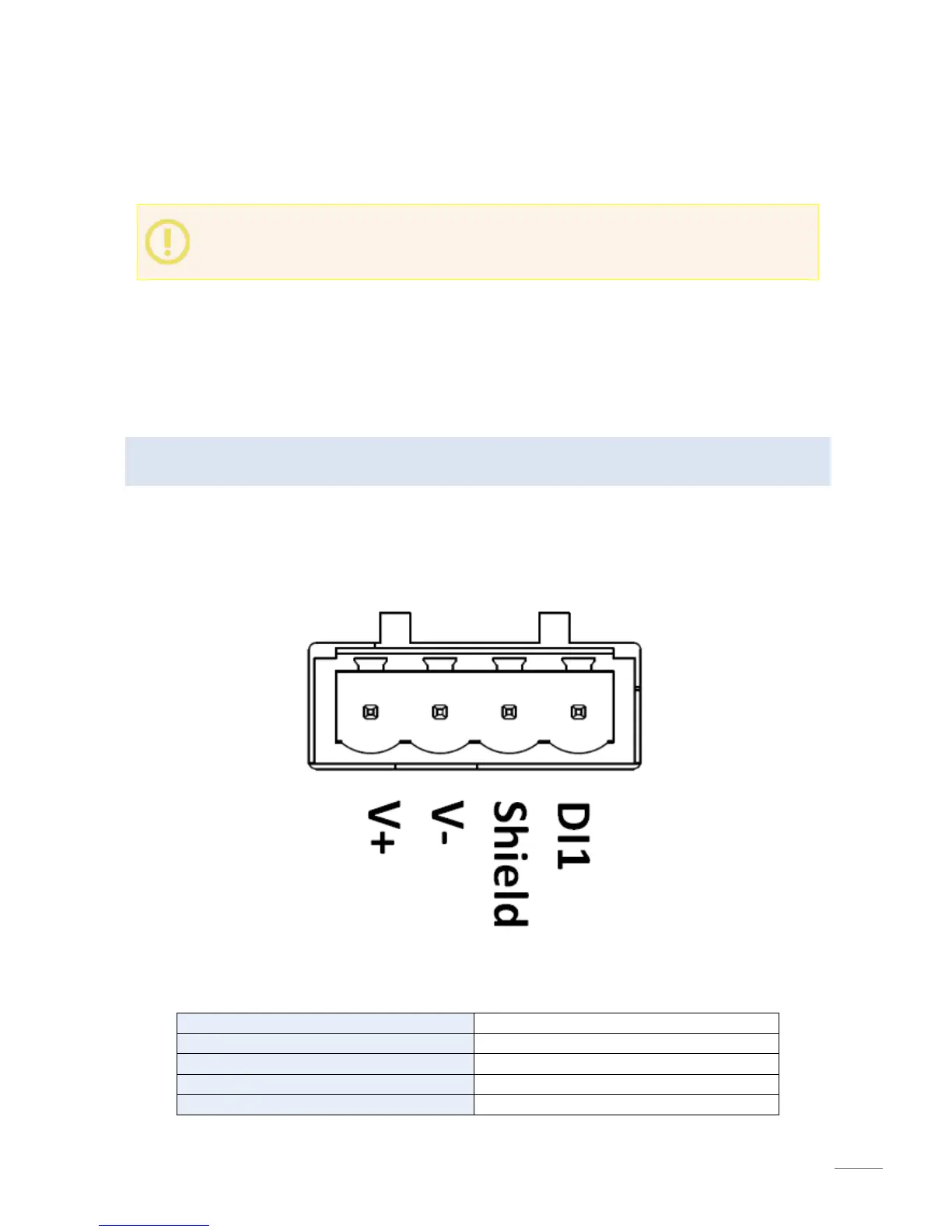

The image below shows the pin-out for the connector.
The IXrouter comes with a female 4-pin plug-in connector with screw connection (type: Weidmuller
BL 5.08/04/180 SN BK BX). The optimal wire diameter is 1.5mm² (16AWG - 12AWG).
Power supply voltage
12-24 VDC +/- 20% LPS
Max input power
10W max
Internal voltage protection
29V max
Input protection
Protected against polarity inversion
Isolation
1.5 kV
