REV 7-16-20126

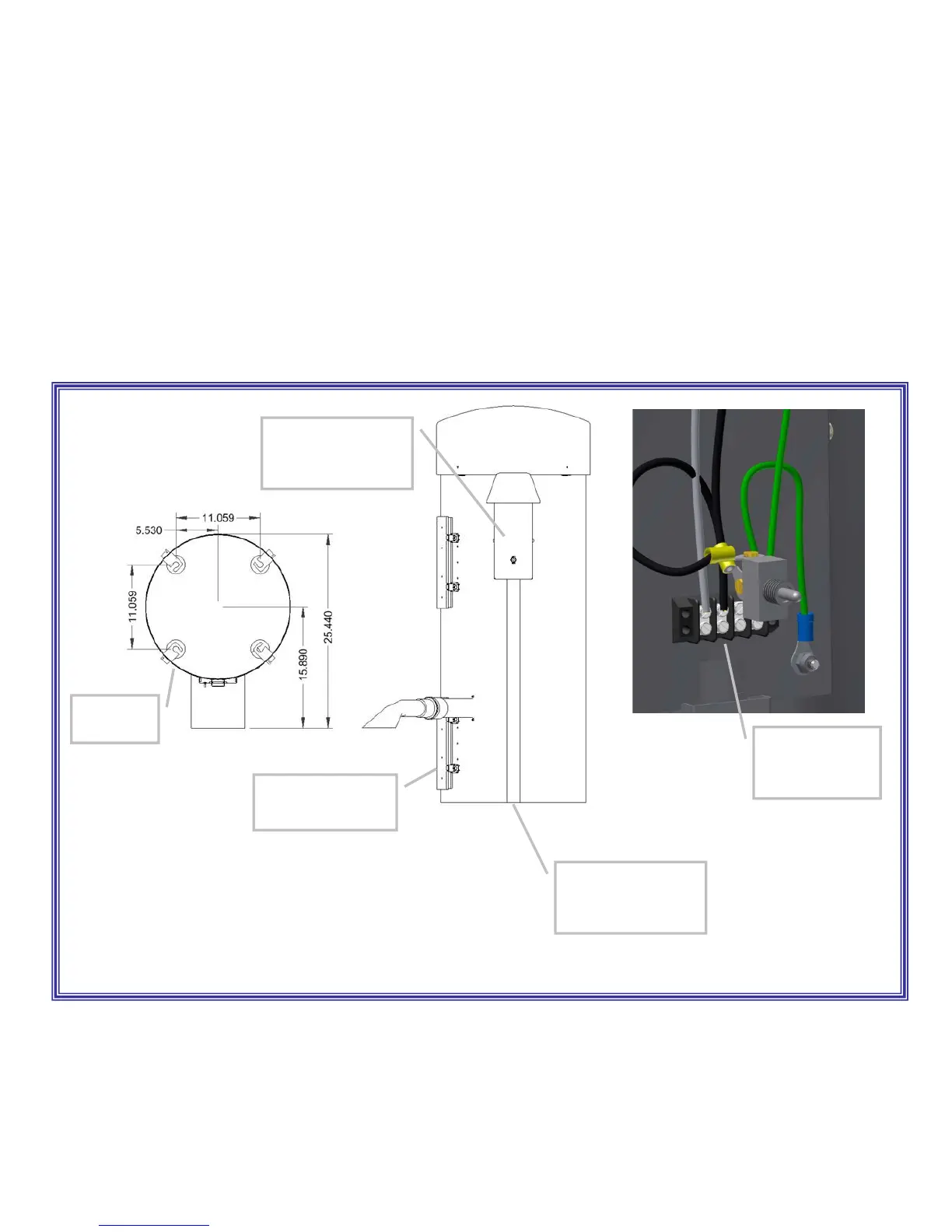

Bring incoming power
up through the
service channel.
Incoming wire ties
into factory wire
underneath
removable cover.
Once unit has been installed use 5871B8 cap plugs (supplied
with unit) to seal holes in canister bottom located in lower
cleanout door (see illustration on next page). Extra cap plugs
are included with the unit in case plug becomes damaged
during shipping removal. After cap plugs are installed, then
connect unit to power (see below illustration). NOTE: when
mounting unit, don't forget to allow clearance for clean-out
door to swing open.
Detailed view:
incoming power
to terminal strip.
Mounting
pattern.
When mounting,
allow access to
cleanout doors.
Floor standing model
