4
Assembly and Installation
Step 1 Assemble and install the main landing gear and wheels

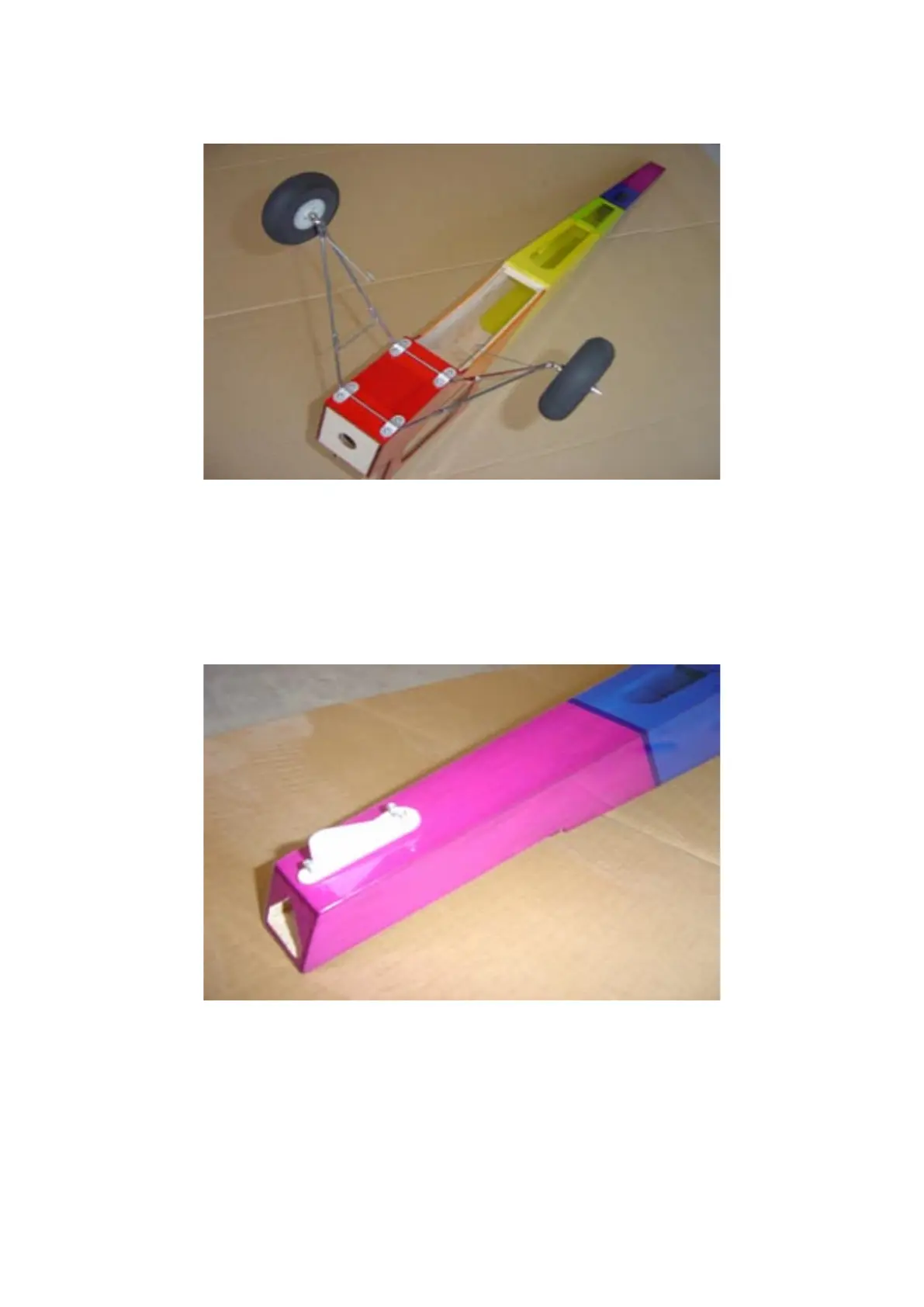

Figure 2. Assemble and install the main landing gear and wheels
▼ 1. Locate the undercarriage so the thicker wire is facing the rear of the model.
▼ 2. Use the 4 aluminium saddle clamps and 8 M3x8 screws to fix the main landing gear onto the
fuselage as shown.
▼ 3. Install the main wheel on the wheel axle (L&R) and fix each wheel with the collars supplied.
Step 2 Install the tail skid onto the bottom side of the fuselage tail-end.
Figure 3. Install the tail skid
