JABSCO 2620 Series User Manual

5
1
2
3
4
6
5
7
10
13 8 11 9 12 8

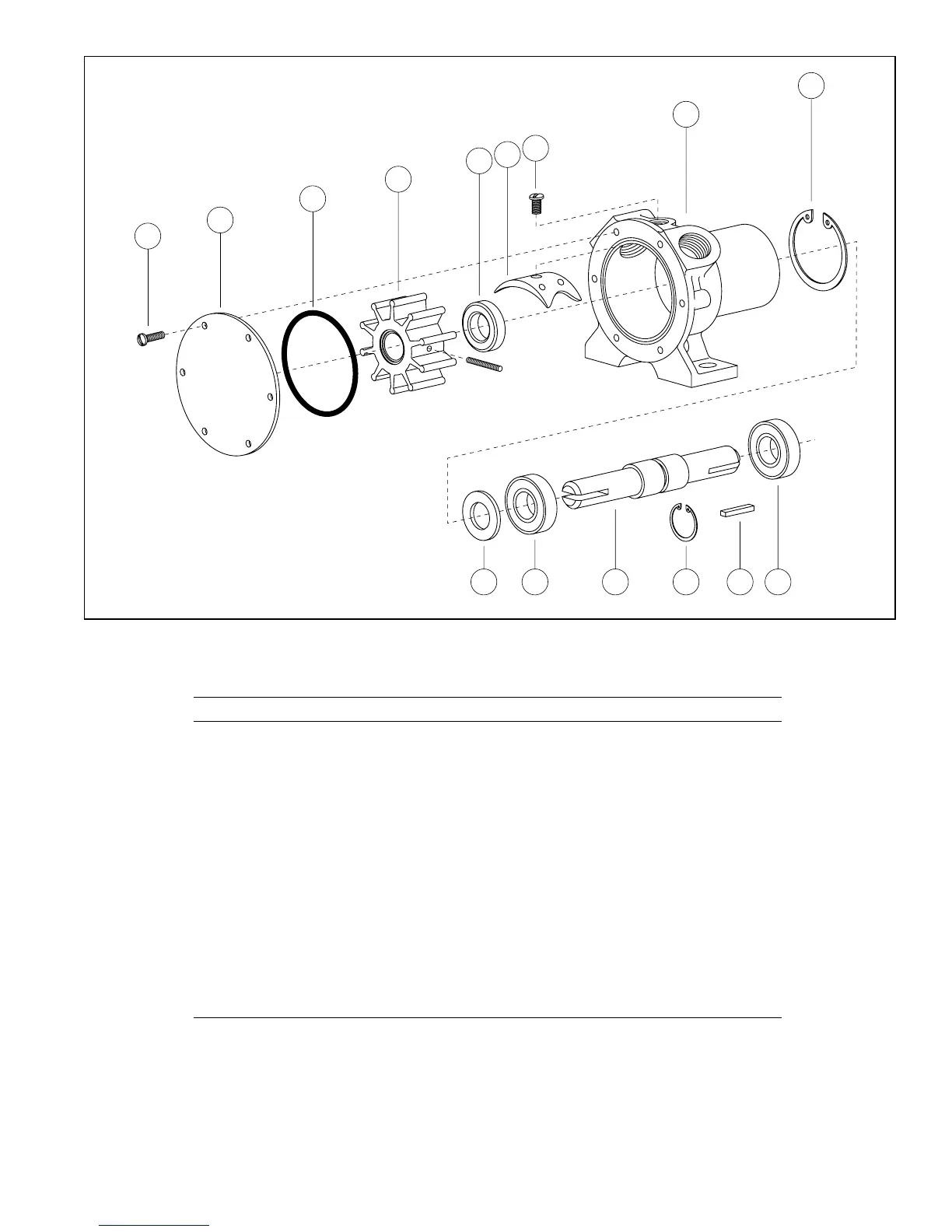

EXPLODED VIEW
PARTS LIST
Key Description Qty. Req. Part Number
1 End Cover 1 11830-0000
2 *O-Ring 1 18753-0125
3 *Impeller (with drive screw) 1
Neoprene 18673-0001
Nitrile 18673-0003
4 *Seal (Shaft) 1 92700-0050
5 Screw Kit (7 each) for Cam and End Cover 1 18753-0121
6 Cam 1 2907-0001
7 Body 1 18753-0122
8 Ball Bearing 2 92600-0130
9 Retaining Ring (Bearing Positioner) 1 18715-0000
10 Retaining Ring (Bearing to Body) 1 18753-0123
11 Shaft 1 18753-0124
12 Key (Shaft Drive) 1 11847-0000
13 Slinger 1 879-0000
Service Kit, Neoprene 90020-0001
Service Kit, Nitrile 90020-0003
