JABSCO 37010 Series User Manual

www.PumpAgents.com

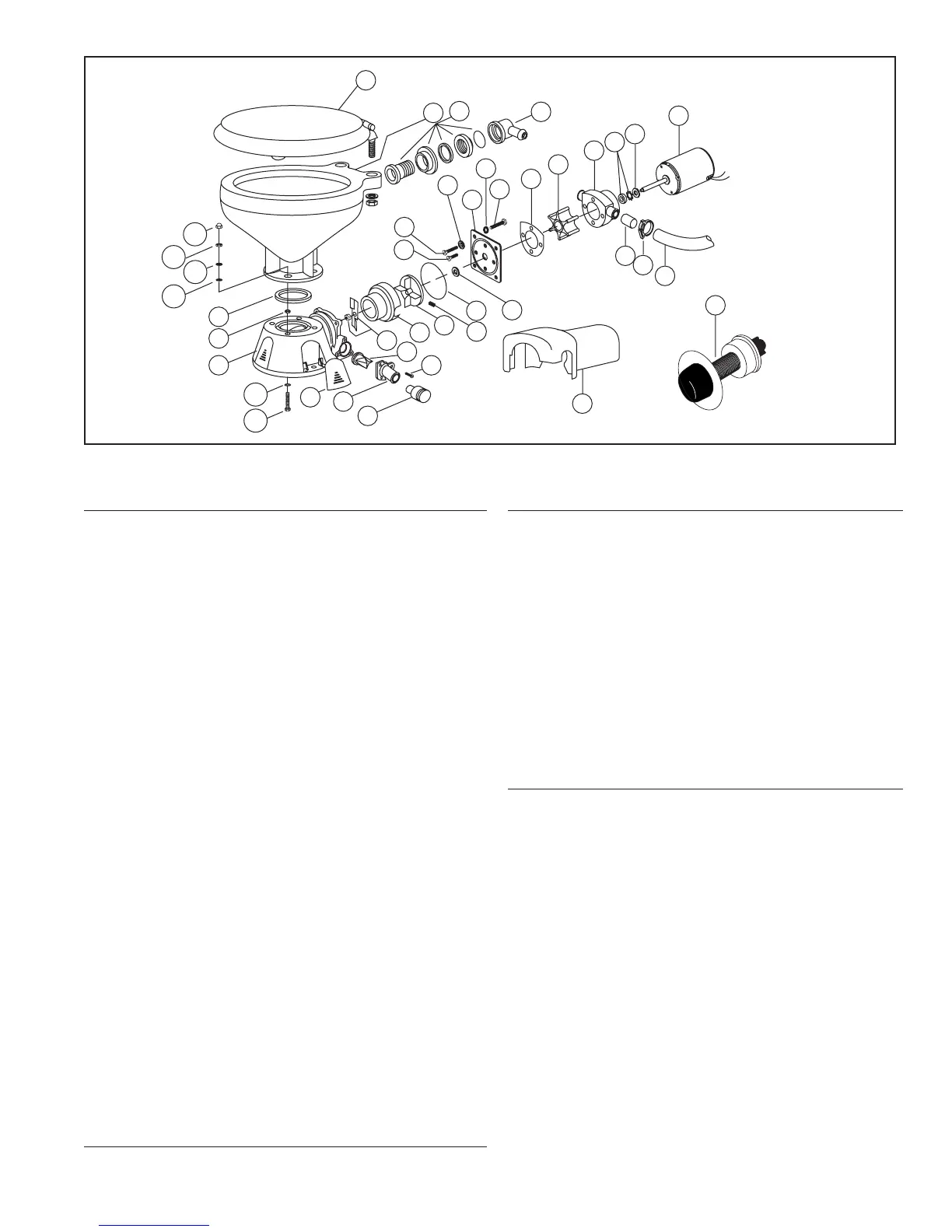

EXPLODED VIEW
PARTS LIST
Qty. Part
Key Description Req. Number
1 Seat & Cover, Compact Size 1 18753-0437
Seat & Cover, Household Size 1 18753-0438
2 Bowl, Compact Size 1 59127-7002
Bowl, Household Size 1 18753-0060
3 & 4 Bowl Spud & Intake 1 29048-0000
Elbow & O-ring
5 Clamp 1 18753-0044
6 Hose 1 29035-0001
7 Bowl Installation Hardware 1 18753-0637
7A Phillips Head Screw** 4
7B Washer, Starlock** 4
7C Hex Nut** (two places) 4
7D Washer, Plastic** 4
7E Washer Stainless steel** 8
7F Nut Cap** 4
8 O-Ring Bowl/Seal 1 44101-1000
9 Base Assembly** 1 37004-1000
10 1-1/2" Adaptor, Discharge Port 1 98023-0080
11 Joker Valve* ** 1
12 1" Discharge Port** 1 44107-1300
13 Screw** 3
14 Chopper Plate† with Lock Nut 1 37056-1000
15 Macerator Housing † 1 37014-0000
16 Centrifugal Impeller † 1 37006-0000
17 Set Screw † 1 18753-0492
18 O-ring*† 1 43990-0066
19 Sealing Sleeve † 1 37036-1000
20 Screw † 2 91009-0096
21 Screw † 2 91010-0130
22 Washer, Fiber*† 2 35445-0000
23 Wearplate Kit ‡† 1 37018-0000
24 Lock Washer #10, Stainless Kit † 4
25 Screw † 4 91027-0011
26 Gasket*† 1 12558-0000
27 Flexible Impeller*† 1 6303-0003
28 Body † 1 12554-0000
29 Seal & Retainer*† 1 1040-0000
Qty. Part
Key Description Req. Number
30 Slinger † 1 6342-0000
31 Motors:
Motor - 12 Volt † 1 37064-0000
Motor - 12 Volt EMC † 1 37064-0900
Motor - 24 Volt † 1 37065-0000
Motor - 24 Volt EMC † 1 37065-0900
Motor - 32 Volt † 1 37066-0000
32 Adaptor 2 93003-0240
33 Switch & Plate 1 37020-0000
34 Motor Cover † 1 43990-0051
35 Screw Cover (3 each) 1 37003-1000
Service Kit 37040-0000
Motor/Pump Assy. 12V † 37041-0010
Motor/Pump Assy. 12V EMC † 37041-0910
Motor/Pump Assy. 24V † 37042-0011
Motor/Pump Assy. 24V EMC † 37041-0911
* Parts Supplied with Service Kit 37040-0000.
** Parts included with base 37004-1000.
‡ Wearplate #23 includes Sealing Sleeve #19 and Pump/
Base O-ring #18.
† Parts included in Motor-Pump Assembly.
O
T
H
S
U
P
F
L
U
S
H
T
R
I
C
C
E
L
E
T
O
I
L
E
T
8
9
10
11
14
12
13
21
20
4
15
16
17
18
22
23
24
25
26
27
28
29
30
31
3
5
6
3
2
7F
7C
7E
7D
7A
34
33
To
Bowl
Elbow
19
1
7B
35
7C
}
