JABSCO 37010 Series - Dimensional Drawings and Specifications; Toilet Dimensional Drawings; Motor Cover Dimensions

www.PumpAgents.com
U.S.A.
Jabsco
20 Icon
Foothill Ranch, CA 92610-3000
Tel: 949.609.5106
Fax: 949.859.1254
UNITED KINGDOM
Jabsco
Bingley Road, Hoddesdon
Hertfordshire EN11 OBU
Tel: +44 (0) 1992 450145
Fax: +44 (0) 1992 467132
CANADA
Fluid Products Canada
55 Royal Road
Guelph, Ontario N1H 1T1
Tel: (519) 821.1900
Fax: (519) 821.2569
JAPAN
NHK Jabsco Company Ltd.
3-21-10, Shin-Yokohama
Kohoku-Ku, Yokohama, 222
Tel: 045.475.8906
Fax: 045.475.8908
GERMANY
Jabsco GmbH
Oststrasse 28
22840 Norderstedt
Tel: +49-40-53 53 73 -0
Fax: +49-40-53 53 73 -11
THE PRODUCTS DESCRIBED HEREIN ARE
SUBJECT TO THE JABSCO ONE YEAR LIMITED
WARRANTY, WHICH IS AVAILABLE FOR YOUR
INSPECTION UPON REQUEST.
© Copyright 2003, ITT Industries Printed in U.S.A. All Rights Reserved Form: 43000-0612 Rev. 3/2003
1 Dia
(25)
4
(102)
6 (152)
D Overall Width
C
G
E
F
5/16
(8)
3-1/8
(79)
B
A
10-7/8
12-15/16
5/8 Dia
2 Places (16)
2 Leads — 11 Long
(279)
3-1/2
(89)
7-3/8
(187)
2-1/2
(64)
3-7/8
(98)
4
(102)
5-3/8
(137)
5/8
(16)
MOTOR COVER

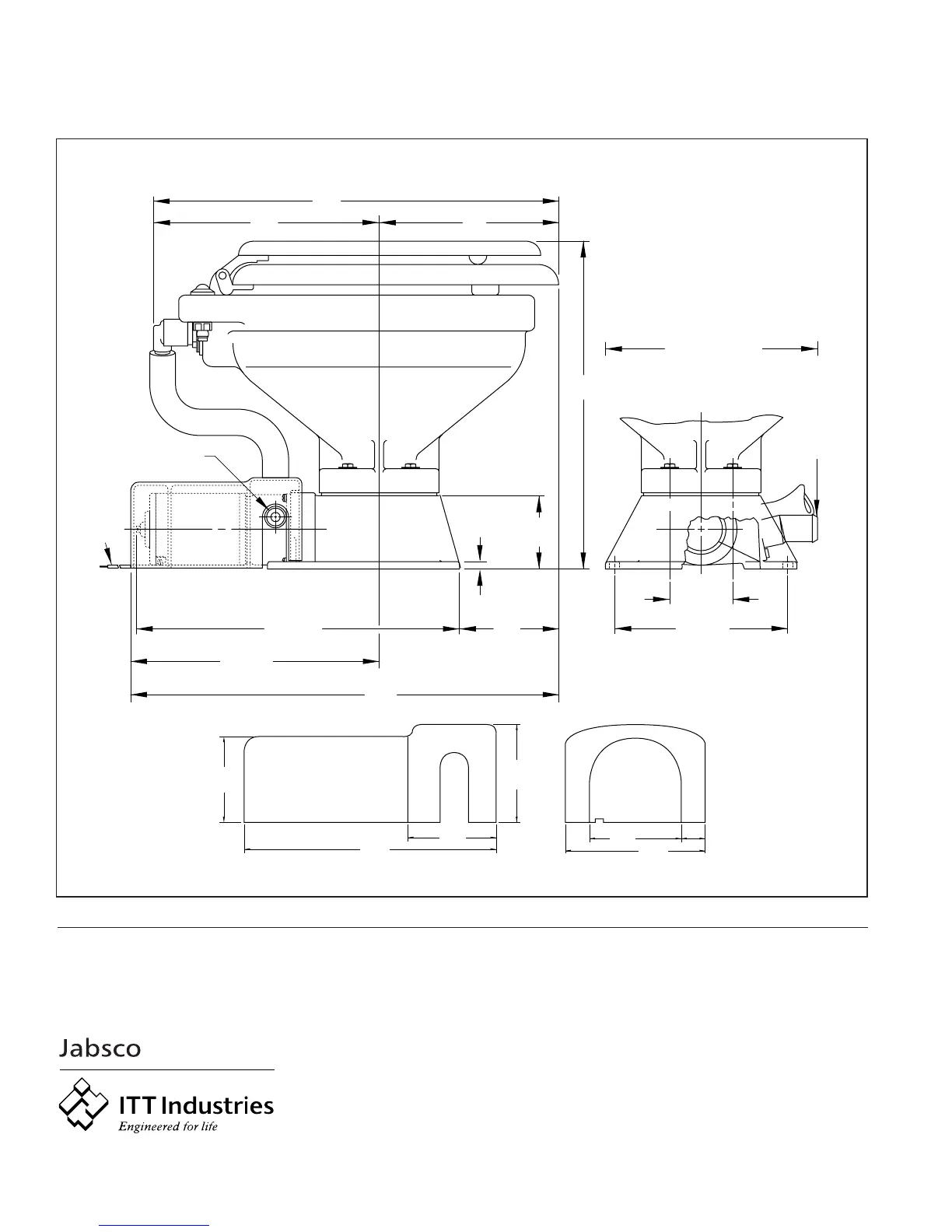

DIMENSIONAL DRAWING
INCHES (MILLIMETRES)
AB C D E F G
COMPACT SIZE BOWL 19-3/4 (493) 4-13/16 (123) 13-13/16 (351) 13-7/8 (352) 17-3/4 (451) 9-7/8 (251) 7-5/8 (194)
HOUSEHOLD SIZE BOWL 21-3/4 (543) 5-11/16 (148) 14-5/8 (372) 14-3/4 (375) 19-3/4 (502) 11-1/4 (286) 8-1/2 (216)
PumpAgents.com - buy pumps and parts online
