Information on lubrication
1) Fill oil pan①with NEW Defrix Oil No.10 up to HIGH mark.
2) When the oil level lowers below LOW mark ,refill the oil pan with the
specified oil .
3)When you operate the machine after lubrication ,you will see splashing oil
through oil sight ② window if the lubrication is adequate.
Note that the amount of the splashing oil is unrelated to the amount of the
lubricating oil .
The new machine should be replaced after 1 month, and the oil should be replac
ed every six months later.

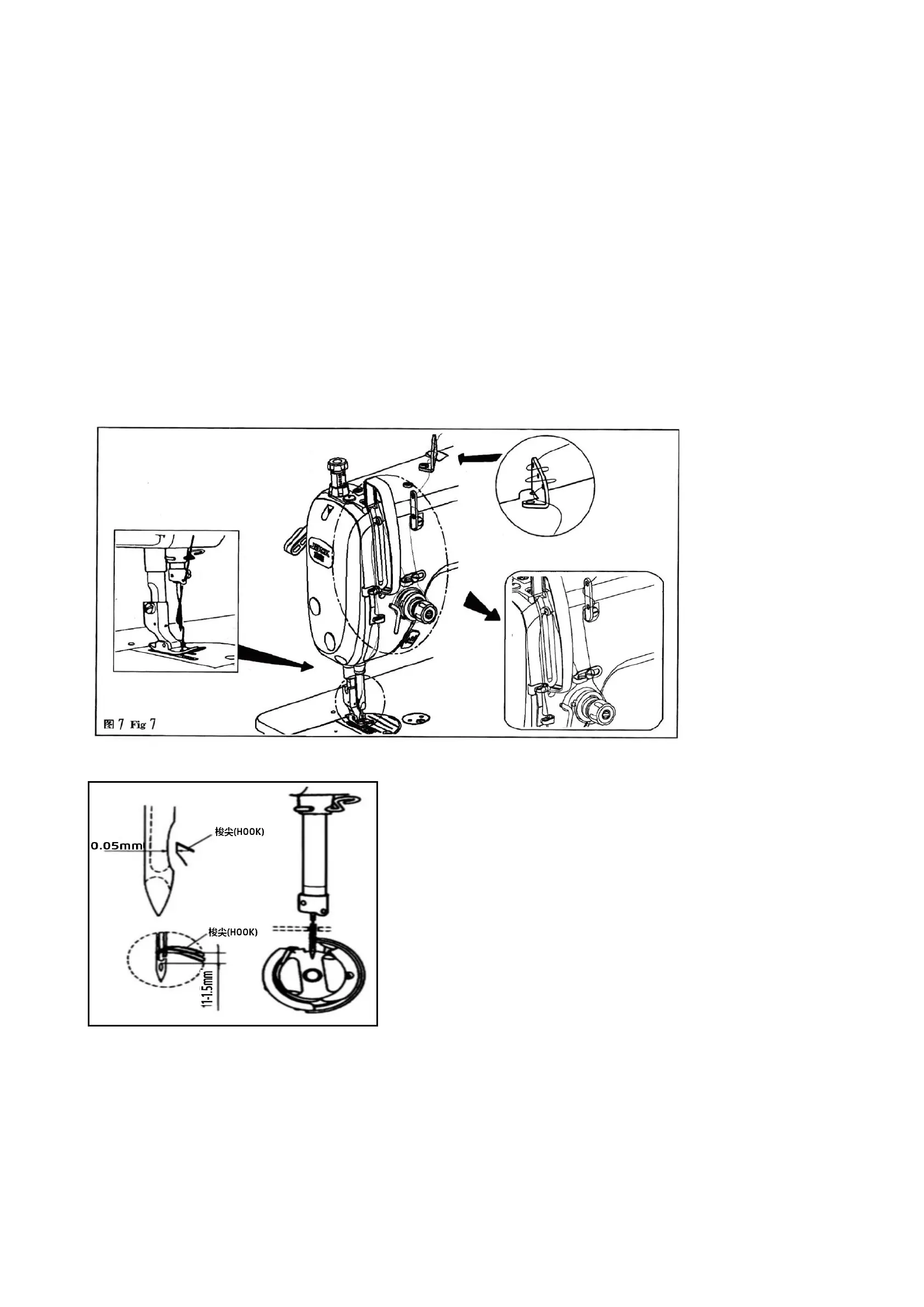

5.上线的穿线方法/THREADING THE MACHINE
6.机针与旋梭的关系/NEEDLE-TO-HOOK
（1）针与旋梭的配合关系应如下：
1）转动手轮，使针杆位于最低点，在旋松针杆连接柱定位螺钉。
* 针杆高度的确定。
2）拉动针杆，水平透过内梭内边缘可看到针孔有1/2下露（机针
必须安装到位）。机针埋线槽朝左，然后旋紧针杆连接柱螺钉。
* 旋梭位置的确定
3）先将旋梭梭尖朝上，转动手轮，针杆从最低点回升时，观察旋
梭与机针配合关系。当旋梭梭尖位于机针孔边上端1-1.5mm时
且梭尖平面距机针短槽平面0.05mm时（保证梭尖位于机针的
中心线部位），旋紧旋锁螺钉。
(1) Adjust the timing between the needle and the hook as follow:
