2 / 14

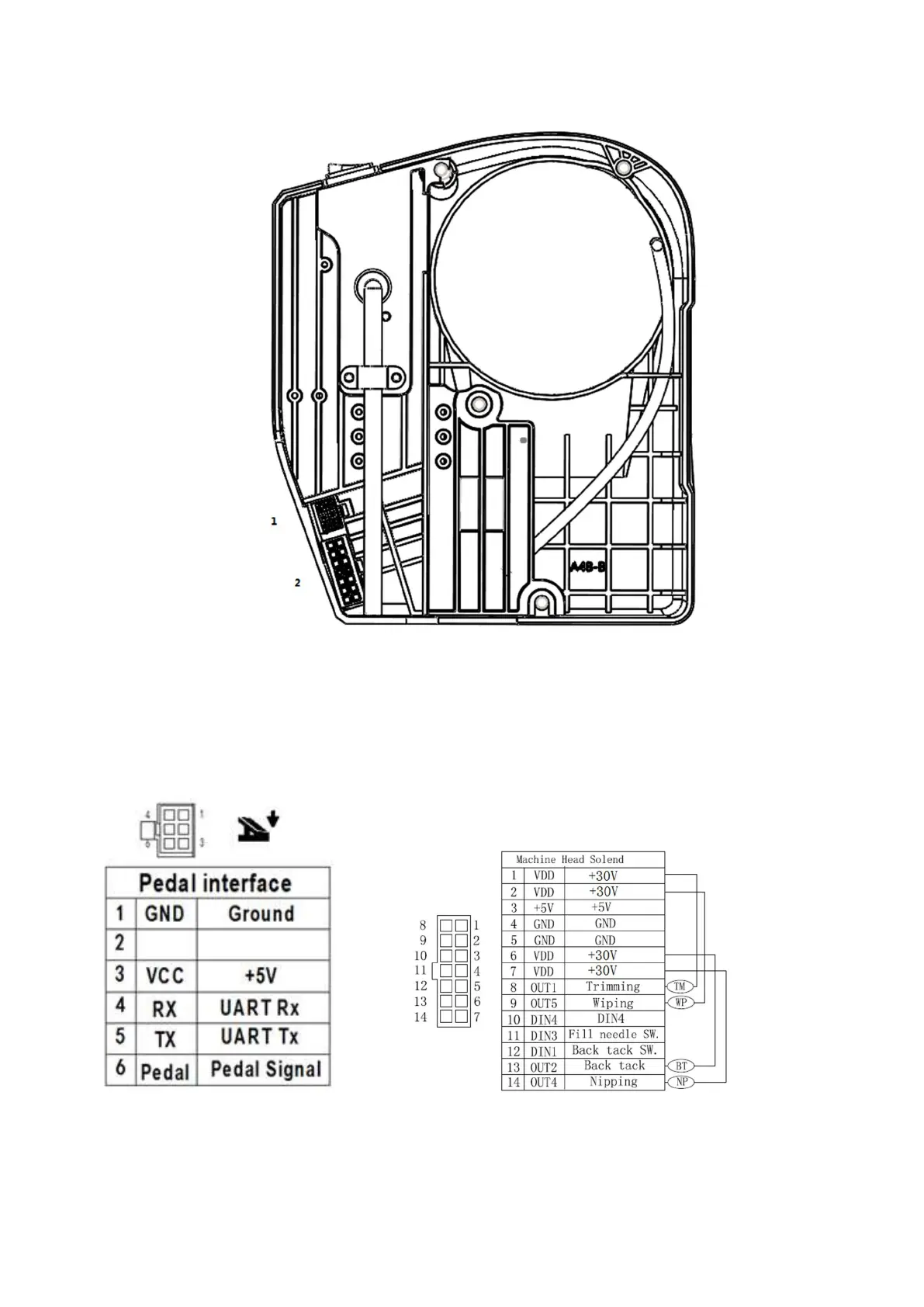

1-2-1controller drawing
Socket of foot pedal and updating
Socket of Electromagnet, LED Lamp and machine head
1-2-2 controller connection plug definition
If it cannot be inserted normally, please check the plug and socket match or not, the direction of the insertion
or the direction of the needle is correct or not.
