07610-004-33-05-E
ITEM QTY DESCRIPTION PART NUMBER
1 1 Steam Coil 05700-004-36-15
2 1 Reducer, 3/4" to 1/2" Black Iron 04730-911-02-34
3 1 Union, 3/4" Black Iron 04730-912-01-00
4 2 Nipple, 3/4" Black Iron 04730-907-01-00
5 1 Valve, Steam, 3/4" 04820-011-87-39
6 1 Nipple, 3/4" Black Iron, 4" Long 04730-907-02-34
7 1 Y-strainer, Steam, 3/4" 04730-217-01-32
8 1 Gate Valve, Steam, 3/4" 04820-100-19-00
9
1 Steam Condensate Assembly, L-R 05700-004-46-56
1 Steam Condensate Assembly, R-L 05700-004-46-33
Complete Steam Coil Assembly, L-R
05700-004-44-82
Complete Steam Coil Assembly, R-L
05700-004-46-30

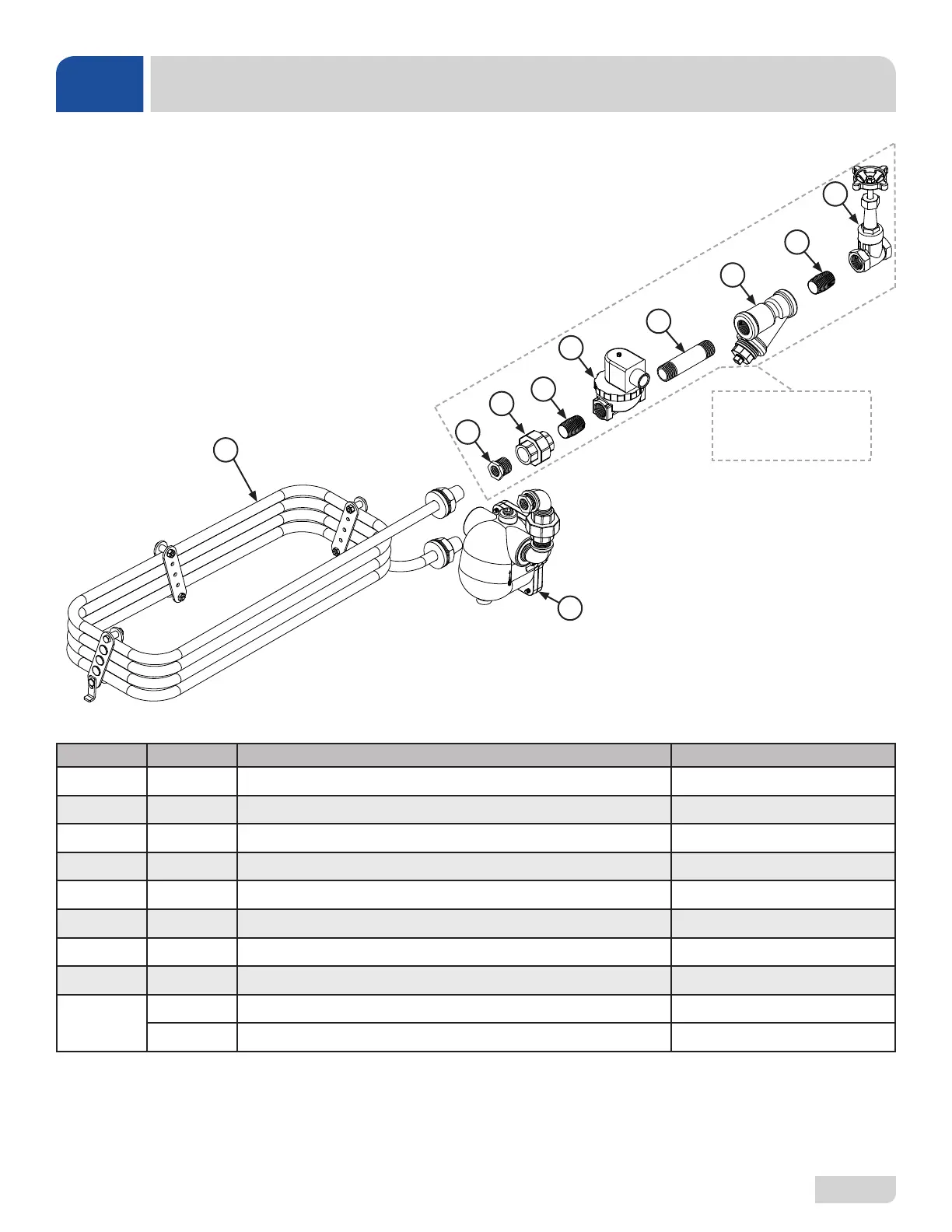

PARTS
STEAM COIL
1
2
9
4
7
6
5
4
3
8
Complete Steam Inlet
Plumbing Assembly
05700-004-46-32
To Next Page
