Jacobsen 67971 – LF 3400 User Manual

2 SPECIFICATIONS
6
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION _________________________________________________
67971.............................. LF 3400, 2WD with ROPS, uses 5
in. (127 mm) diameter reel
67972.............................. LF 3400, 4WD with ROPS, uses 5
in. (127 mm) diameter reel
67958.............................. LF 3800, 2WD with ROPS, uses 7
in. (178 mm) diameter reel
67959.............................. LF 3800, 4WD with ROPS, uses 7
in. (178 mm) diameter reel
67960.............................. LF 3400 Turbo, 4WD with ROPS,
uses 5 in. (127 mm) diameter reel
67961.............................. LF 3800 Turbo, 4WD with ROPS,
uses 7 in. (178 mm) diameter reel

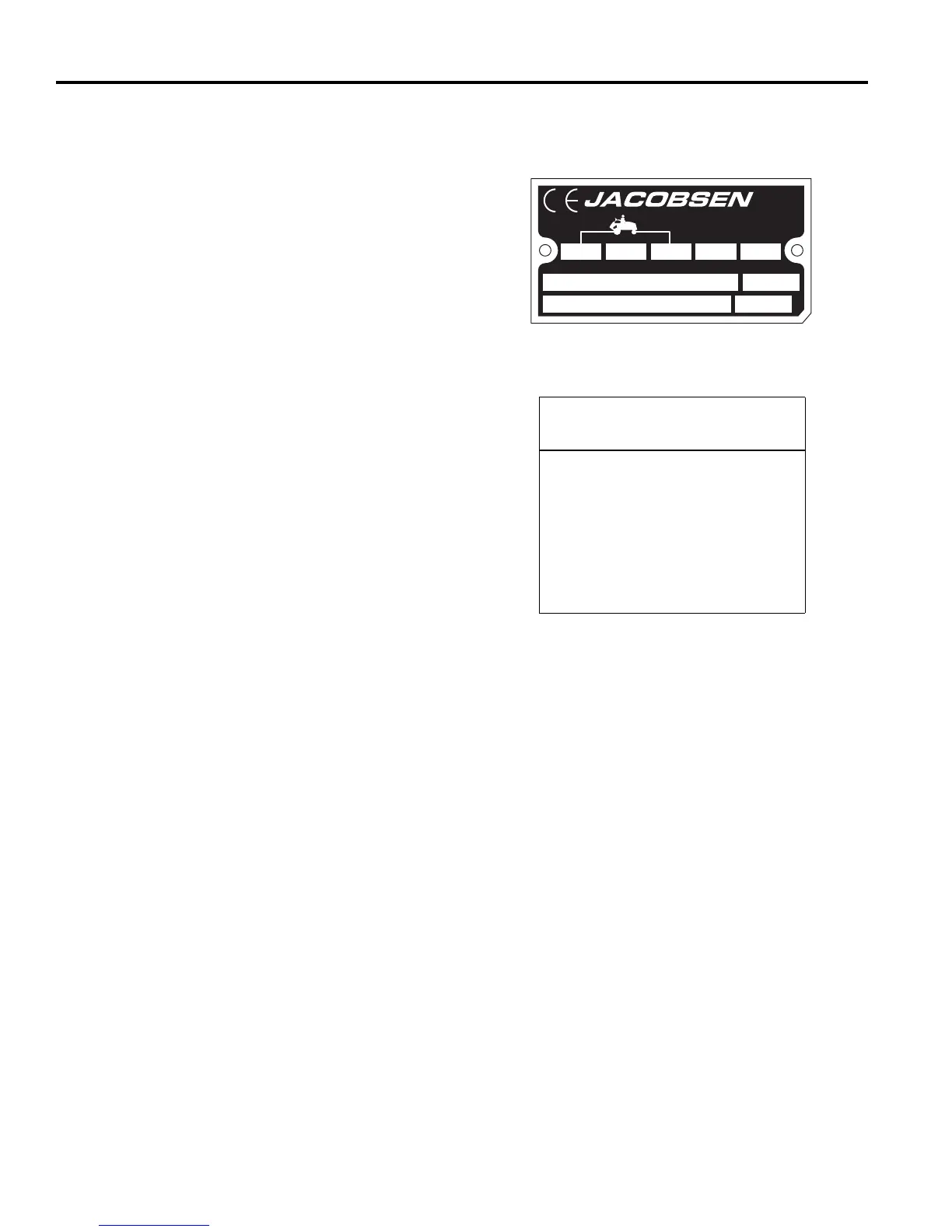

Serial Number ................ An identification plate, like the one
shown, listing the serial number, is
attached to the frame of the
mower and is located on the
operator’s right just over the rear
axle.
Always provide the serial number of the unit when ordering
replacement parts or requesting service information.
2.2 V1505-E3B ENGINE ________________________________________________________
Make ............................... Kubota
Model .............................. V1505-E3B diesel, 4 cycle, liquid
Cooled
Horsepower..................... 35.5 Hp (26.4 Kw) @ 3000 rpm
Displacement .................. 91.4 in.
3
(1498 cm
3
)
Torque............................. 73 ft. lbs. (99 Nm) @ 2100 rpm
Fuel:
Type .......................... #2, low or ultra-low sulfur, diesel
Rating ....................... Min. cetane rating 45
Capacity.................... 17 U.S gal. (64.3 liters)
Governor Setting:
High Idle ................... 3150 rpm
Low Idle .................... 1200 rpm
Lubrication:
Capacity.................... 5.5 U.S. qts. (5.2 liter)
Type .......................... SAE 10W30
API Classification...... CD/CE
Air Filter .......................... Donaldson, dry type with
evacuator valve and service
indicator
Alternator........................ 40 Amp
2.3 V1505-T-E3B ENGINE ______________________________________________________
Make ............................... Kubota
Model .............................. V-1505T-E3B diesel, 4 cycle,
liquid cooled
Horsepower..................... 44.2 Hp (33.0 Kw) @ 3000 rpm
Displacement .................. 91.4 in.
3
(1498 cm
3
)
Torque............................. 93 ft. lbs. (1357 Nm)
Fuel:
Type .......................... #2, low or ultra-low sulfur, diesel
Rating ....................... Min. cetane rating 45
Capacity.................... 17 U.S gal. (64.3 liters)
Governor Setting:
High Idle ................... 3150 rpm
Low Idle .................... 1200 rpm
Lubrication:
Capacity.................... 5.5 U.S. qts. (5.2 liter)
Type .......................... SAE 10W30
API Classification...... CD/CE
Air Filter .......................... Donaldson, dry type with
evacuator valve and service
indicator
Alternator........................ 40 Amp
Product
EEC Sound
Power
Vibration M/S
2
Arms Body
67958 102 dba 2.65 .0406
67959 102 dba 2.65 .0406
67960 102 dba 2.65 .0406
67961 102 dba 2.65 .0406
67971 102 dba 2.65 .0406
67972 102 dba 2.65 .0406
®
P.O. BOX 7708,
CHARLOTTE,
NC 28241, USA
A T extron Compa n y
kg kg kg kW
Jacobsen.com
1-800-848-1636 (US)
PRODUCT OF U.S.A.
670.4
XXXX
FAIRWAY MOWER 67971
LF-3400 2WD 1651
25.0892.0 369.8
