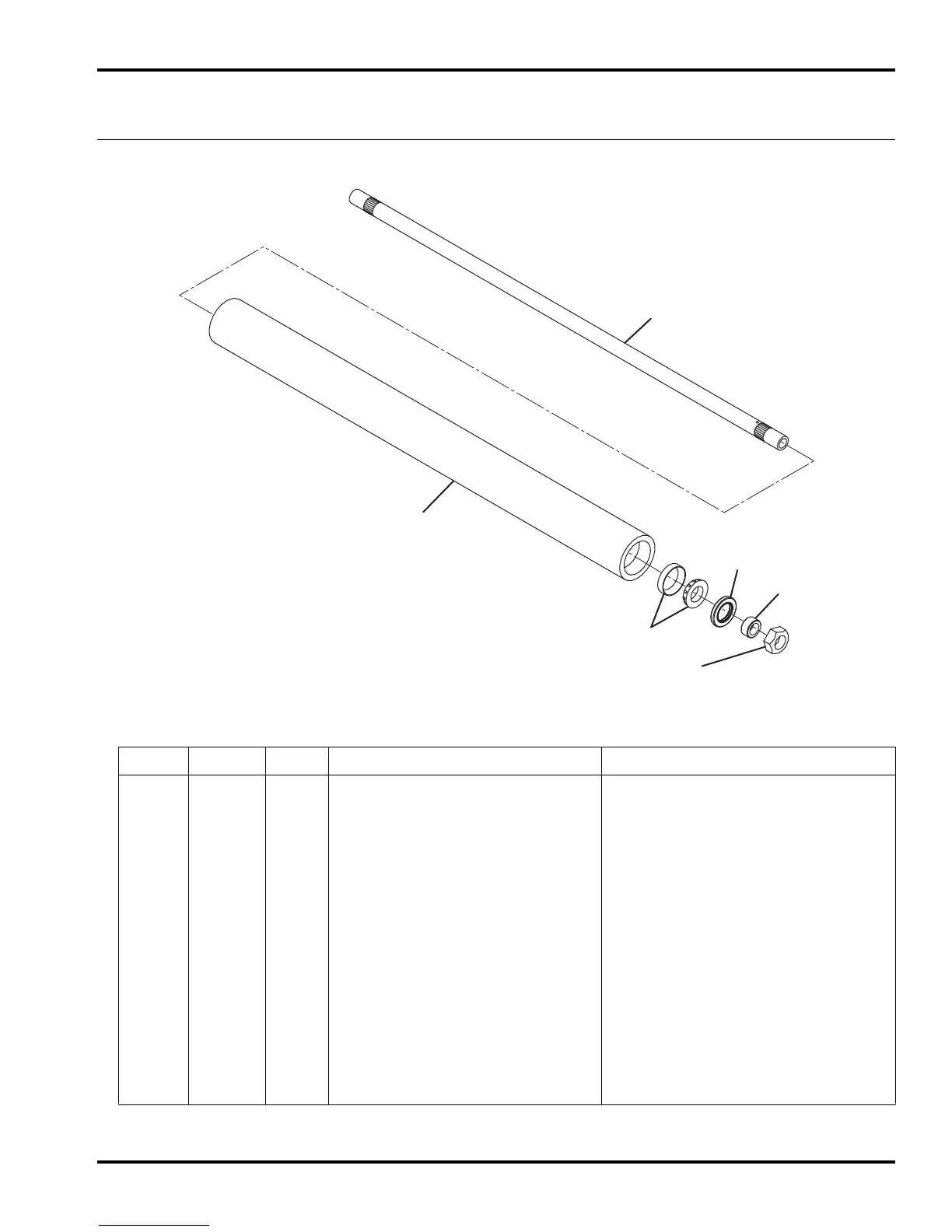

LF 3400 / LF 3800
Item Part No. Qty. Description Serial Numbers/Notes
1
1002445 1 Tube, 24” Roller
1 1003727 1 Tube, 22” Roller
2 3005318 1 Shaft, 24” Roller
2 3008027 1 Shaft, 22” Roller
3 3005156 2 Sleeve, Wear
4 3004882 2 Seal, Grease
5 500534 2 Bearing, Cup and Cone
6 445798 2 Locknut, 3/4-16 Stover
37.1 Rear Roller
Part Number 1002446
Part Number 1003728
Serial No. All
