6
Turfcat
T628D
ASSEMBLY AND SETUP
4. SAFETY CHAINS
a) Verify that the bottom link of the deck chains
reach the deck bracket mounting holes. If not, the
deck cylinder may need to be further lowered with
the tractor lift lever or the chains checked for
routing problems.
b) Anchor the bottom link of each chain to the
bracket with 5/16-18X1-1/4" bolts and washers,
first making sure the chains drop straight without
twisting. Secure with locknuts.
3. ATTACHING DECK TO TRACTOR
a) Remove the deck belt cover.
b) Place the deck square to and approximately 2" in front of the tractor's front wheels.
c) Run the two 5/8" hoses straight out from the tractor valve (do not cross) to the deck motor "PRESSURE"
and "RETURN" fittings. Connect these hoses with the fittings angled upward to make it easier to attach the
push arms to the deck. Leave connections snug but not tight. They will be repositioned and securely
tightened later in the setup procedure.
d) Line up the front pivot of the two push arms inside the deck hanger brackets, insert both pins P and secure
with (2) 5/16-18 X 7/8 bolts and (2) 5/16-18 nuts.

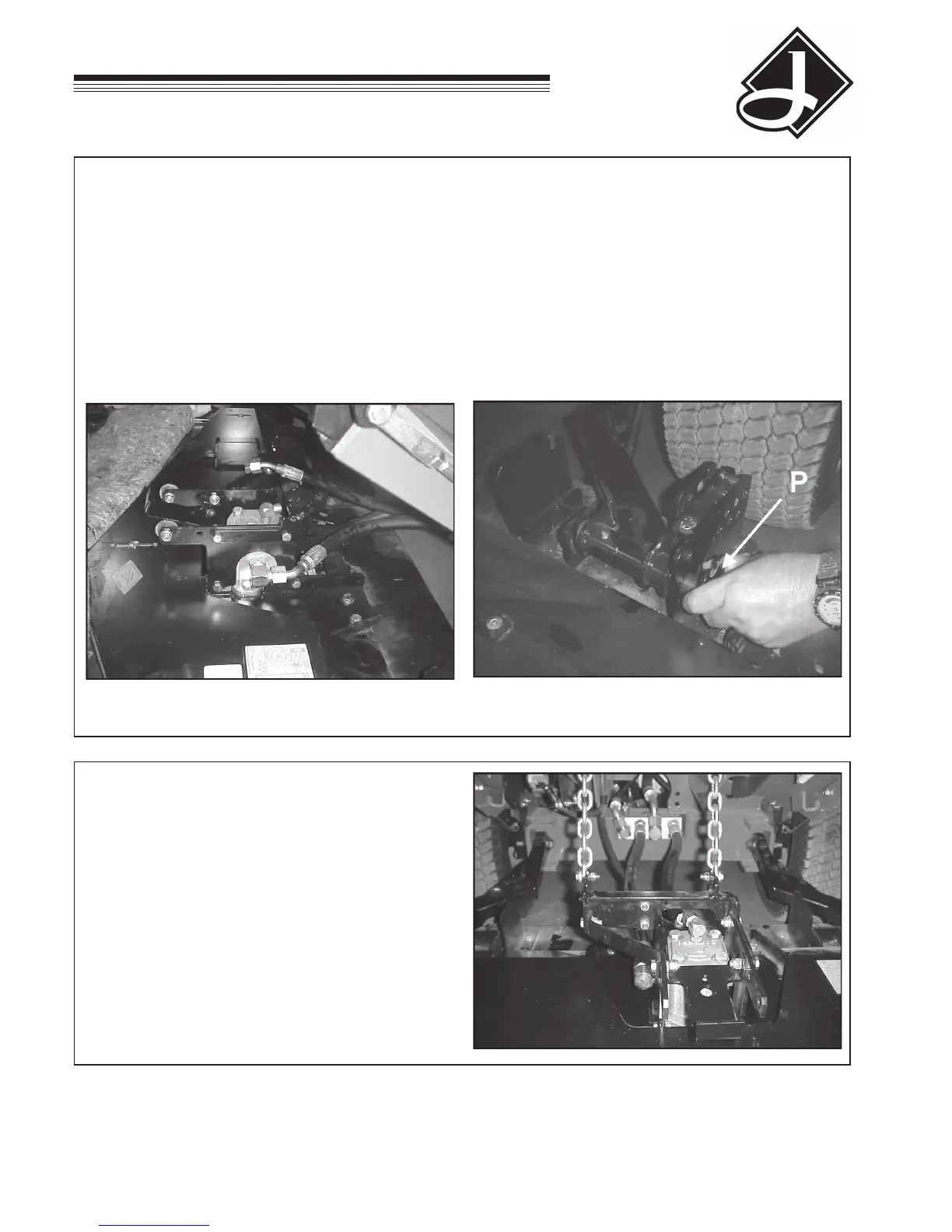

Deck motor hose attachment Push arm attachment
