JACOBSEN AR3
SAFETY, OPERATORS & MAINTENANCE MANUAL
6 CONTROLS
6.1P MULTI-FUNCTION GAUGE
The various functions can be selected using the left
hand button
The fuel level is displayed on a digital bargraph in
the upper segment of the display. The clock, time
to service and hourmeter is displayed in the lower
segment of the display in numeric format.
Low fuel level
The bargraph, black fuel pump symbol and red LED
above warning triangle will flash
Service Required
The black spanner symbol and red LED above
warning triangle will flash

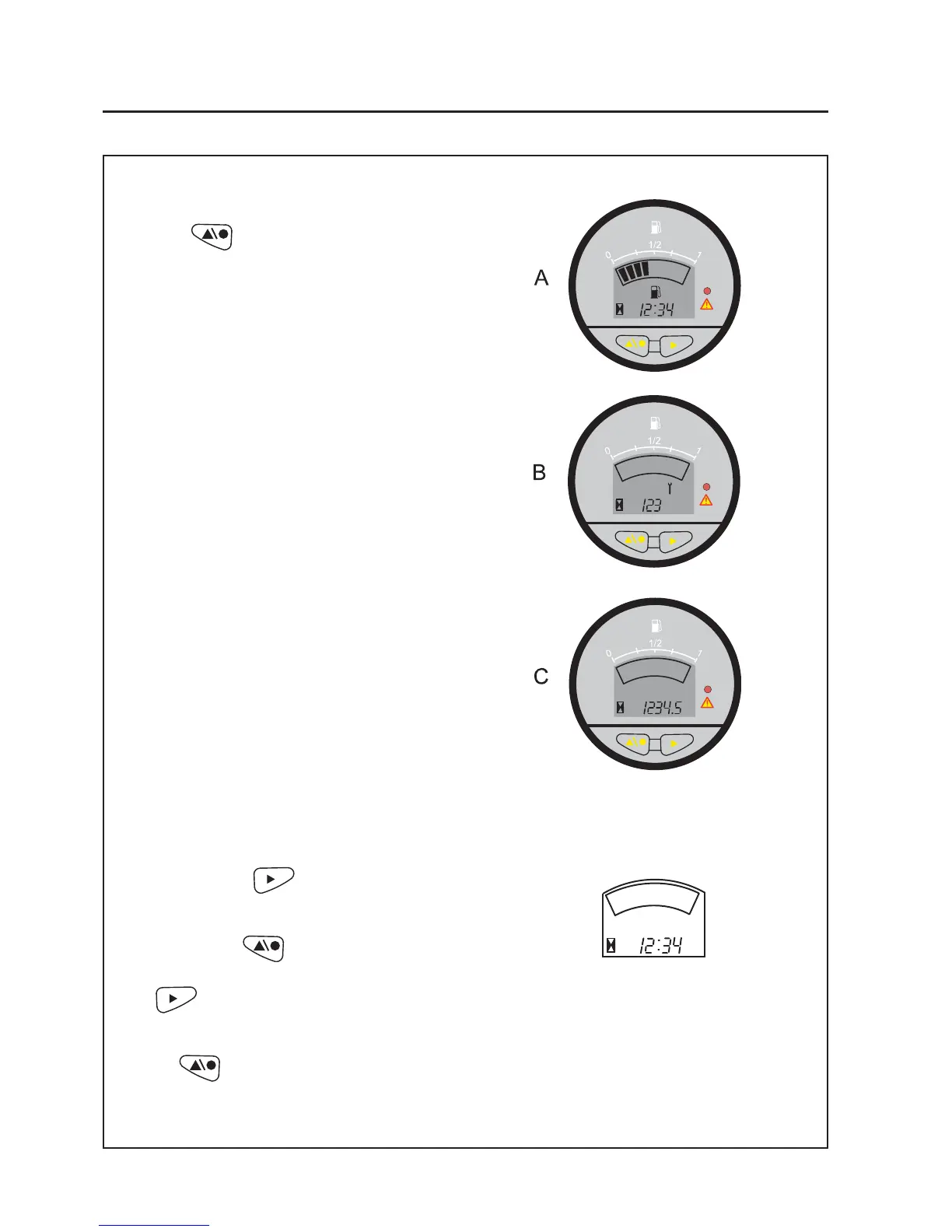

A. Clock Function / Fuel Gauge
Function
B. Time To Service Function
C. Total Hours Function
Setting the Time-Of-Day Clock
The display will flash the two “HOURS” digits.
Press the right button to increment by one
hour, or hold the button to increment continuosly.
When the desired number of hours is reached,
press the left button once. The display will
flash the two “minutes” digits. Press the right
button to increment by onr minute or hold
the button to increment continusly. When the
desired number of minutes is reached, press the
left button once.
