7.3 OPERATING PROCEDURE
1. Under no circumstances should the engine be started without the operator seated on the tractor.
2. Do not operate tractor or attachments with loose, damaged or missing components. Whenever
7 OPERATION
DO NOT USE ON SLOPES GREATER THAN 15°
WARNING
7.4 FITTING THE CUTTING UNITS TO THE
MACHINE

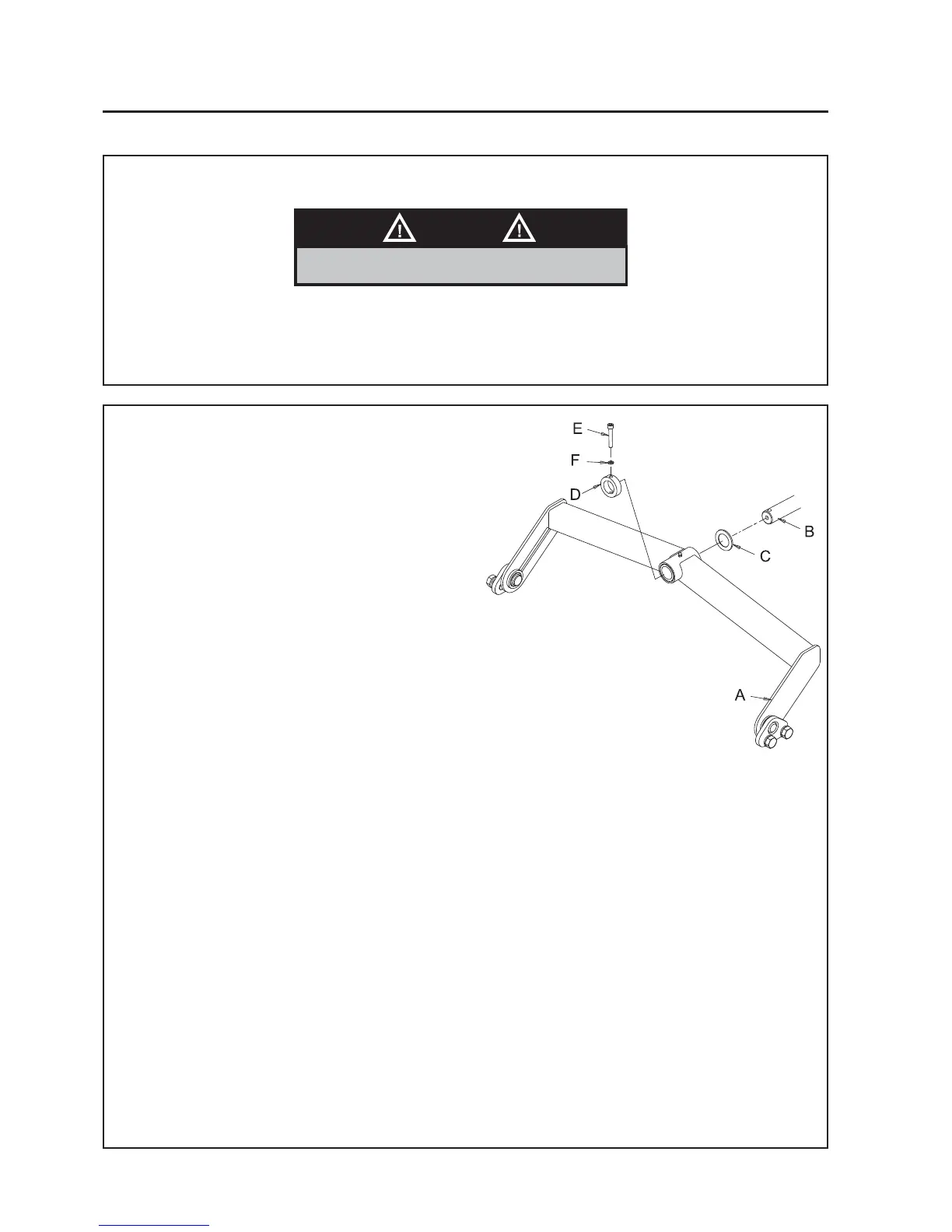

1. With the lift arms in the lowered position
slide the cutting unit pivot yoke (A) up to
the mounting shaft (B).
2. Fit Washer (C) to shaft (B).
3. Smear bushes with grease.
4. Align the shaft (B) with the cutting unit
pivot yoke (A).
5. Slide pivot yoke (A) on to the mounting
shaft (B).
6. Fit Collar (D) to mounting shaft (B).
7. Secure with cap screw (E) and
lockwasher (F).
