INCLINOMETER
Use of Inclinometer when fitted.

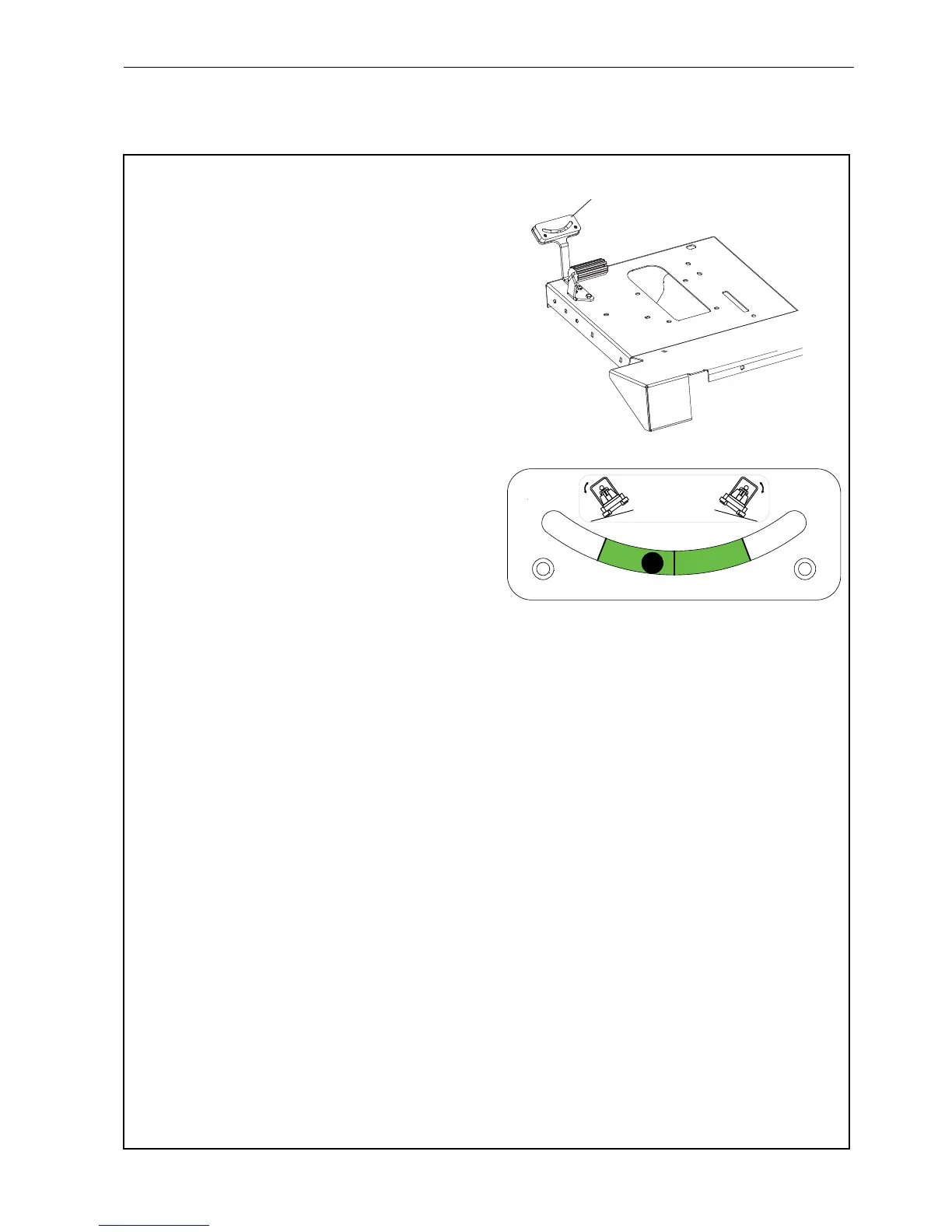

The Inclinometer (A) is located on the left hand side
of the footplate forward of the foot rest.
When working on slopes the device indicates when
the machine is working within stability limits (the ball
is within the green area).
When the ball is outside the green area this indicates
the machine is at risk of roll over.
NOTE
The Inclinometer only works on side slopes
Gauge to be
mounted leaning
backwards at 45°
