GB-19
JACOBSEN G-PLEX III Series: DN & DP
MAINTENANCE AND PARTS MANUAL
GB
6 ADJUSTMENT
5.16 REAR SWING OUT ARM
NOTE: The rear swing out arm is to allow you
easy access to the rear cutting head. The cutting
heads must be in the raised position. DO NOT
swing the arm out with the cutting heads in the
lowered position.
1. The grass catcher MUST BE removed
before you swing the arm out.
2. Release the draw latch (See Fig. 5.16.1).
3. Pull the handle and swing the rear arm and
cutting head out.
4. After you are properly seated in the
operator's seat, restart the unit and lower
the cutting heads.
5. Shut off the unit and remove the rear
cutting head for service.
6. After you have completed your servicing,
secure the cutting head to the rear arm.
7. After you are properly seated in the
operator's seat, restart the unit and raise
the cutting heads.
8. Shut off the unit and swing the rear arm
back under the unit and secure the arm
with the draw latch (See Fig. 5.16.1).
9. Install the grass catcher.
1
2

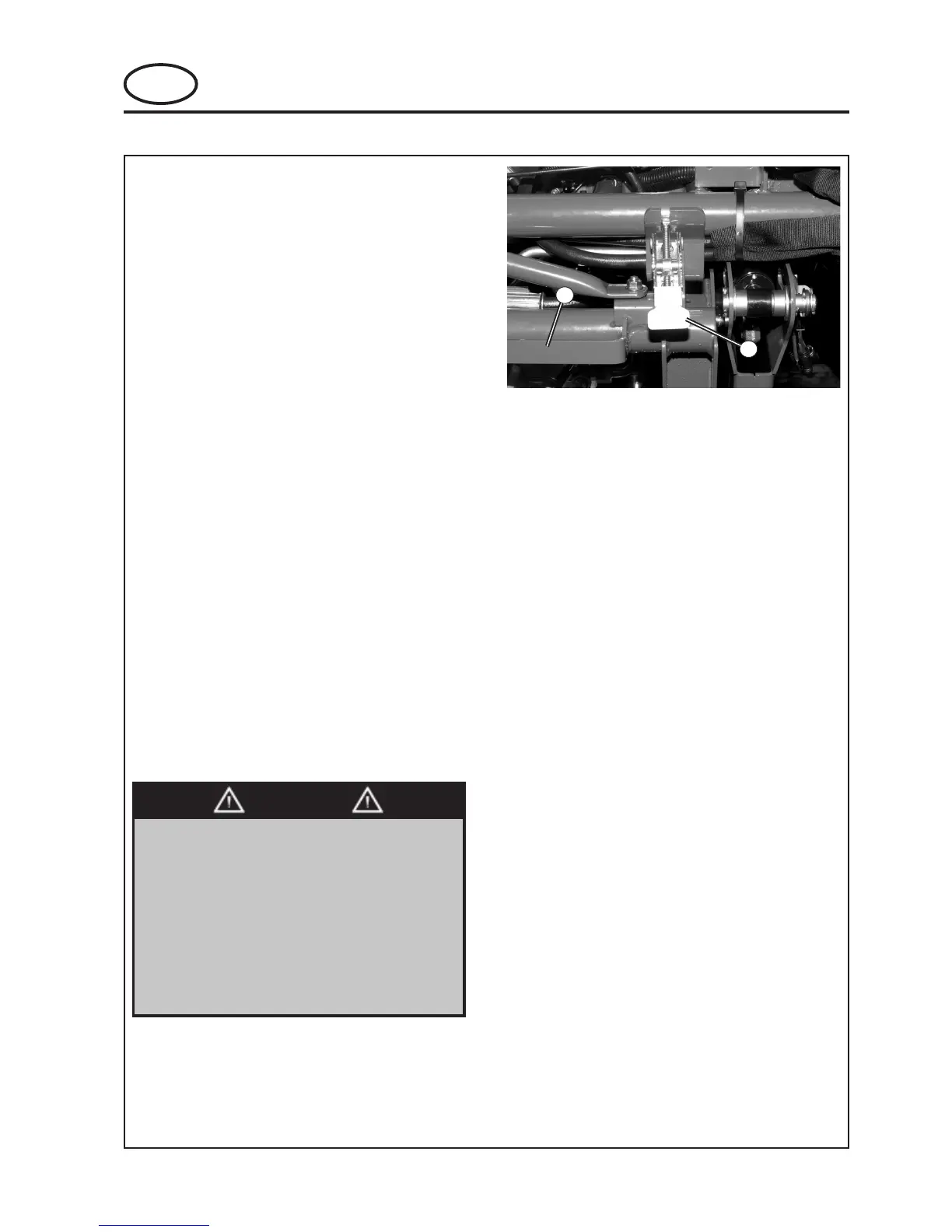

Figure 5.16.1
1. Draw Latch
2. Handle
To avoid the possibility of serious injury,
ALWAYS be properly seated in the operator's
seat while the engine is running.
NEVER attempt to drive the machine while
the rear arm is not secured by the draw latch.
Driving the machine with the rear arm out, will
result in damage to the machine and/or cause
serious injury or death of the operator and/or
bystanders.
WARNING
