60
> Change from previous revision
HR-9016

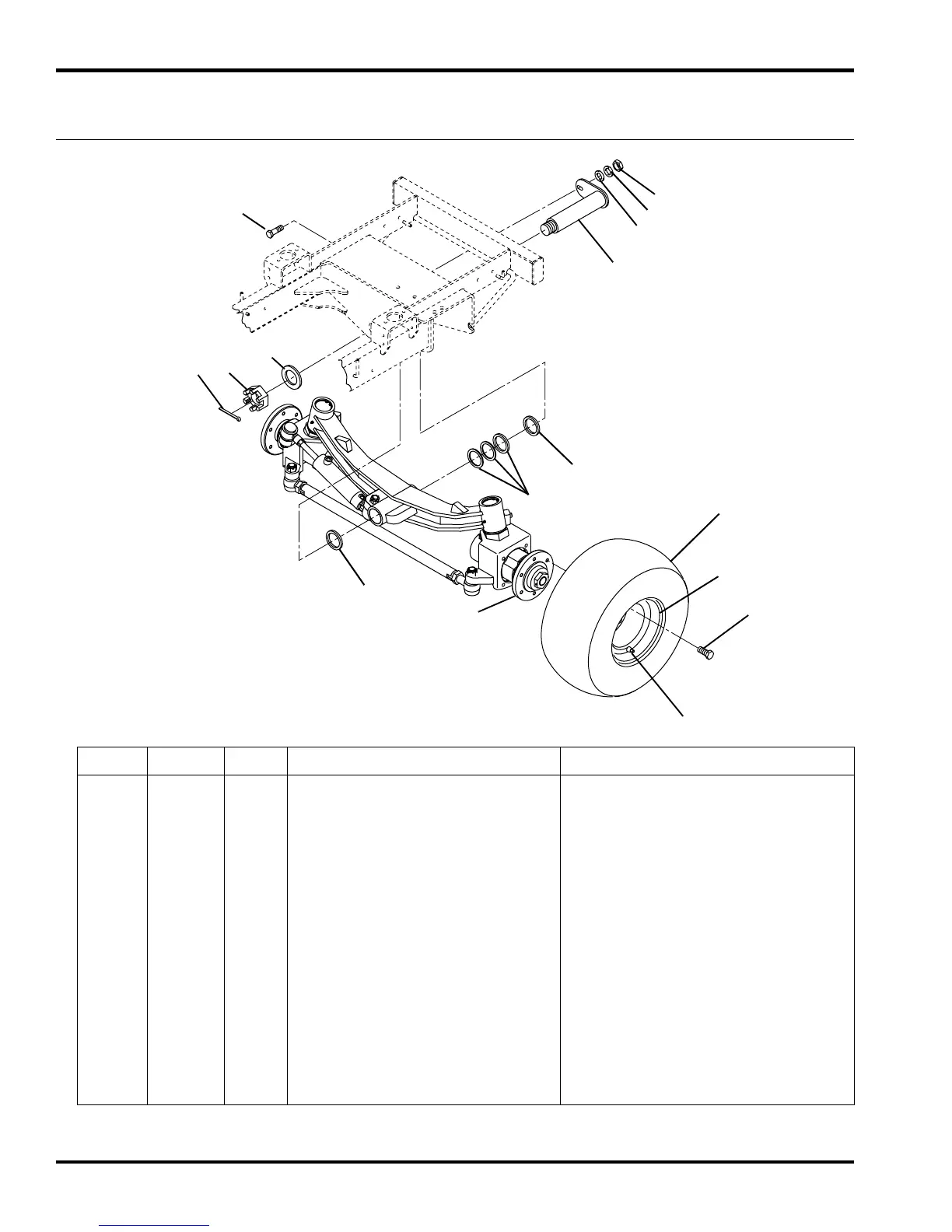

15.1 Steering Axle Installation
Serial No. All
9016-36
Item Part No. Qty. Description Serial Numbers/Notes
1
– 1 Steering Axle See 14.1
2 1003001 1 Pivot Shaft
3 3006475 AR Washer, 3/32” Thick Thrust
4 363766 1 Washer
5 445642 1 Nut, 1-1/2 -12 Slotted Hex
6 460072 1 Cotter Pin, 1/4 x 2-1/2”
7 400408 1 Screw, 1/2-13 x 1-1/2” Hex Head
8 446152 1 Lockwasher, 1/2
9 443118 1 Nut, 1/2-13 Hex
10 3003101 AR Washer, 1/32” Thick Thrust
11 3007683 12 Wheel Bolt, 1/2-20
12 5003419 2 Tire, 24 x 12-12 Turf Trac
13 5003420 2 Wheel
14 360111 2 Valve, Inflation
15 453017 1 Flat Washer, 1/2
1
2
3
4
56
7
8
9
3
3 / 10
As Required
11
12
13
14
15
To Next Page
