Jacobsen HR600 User Manual

en-19
CONTROLS 5

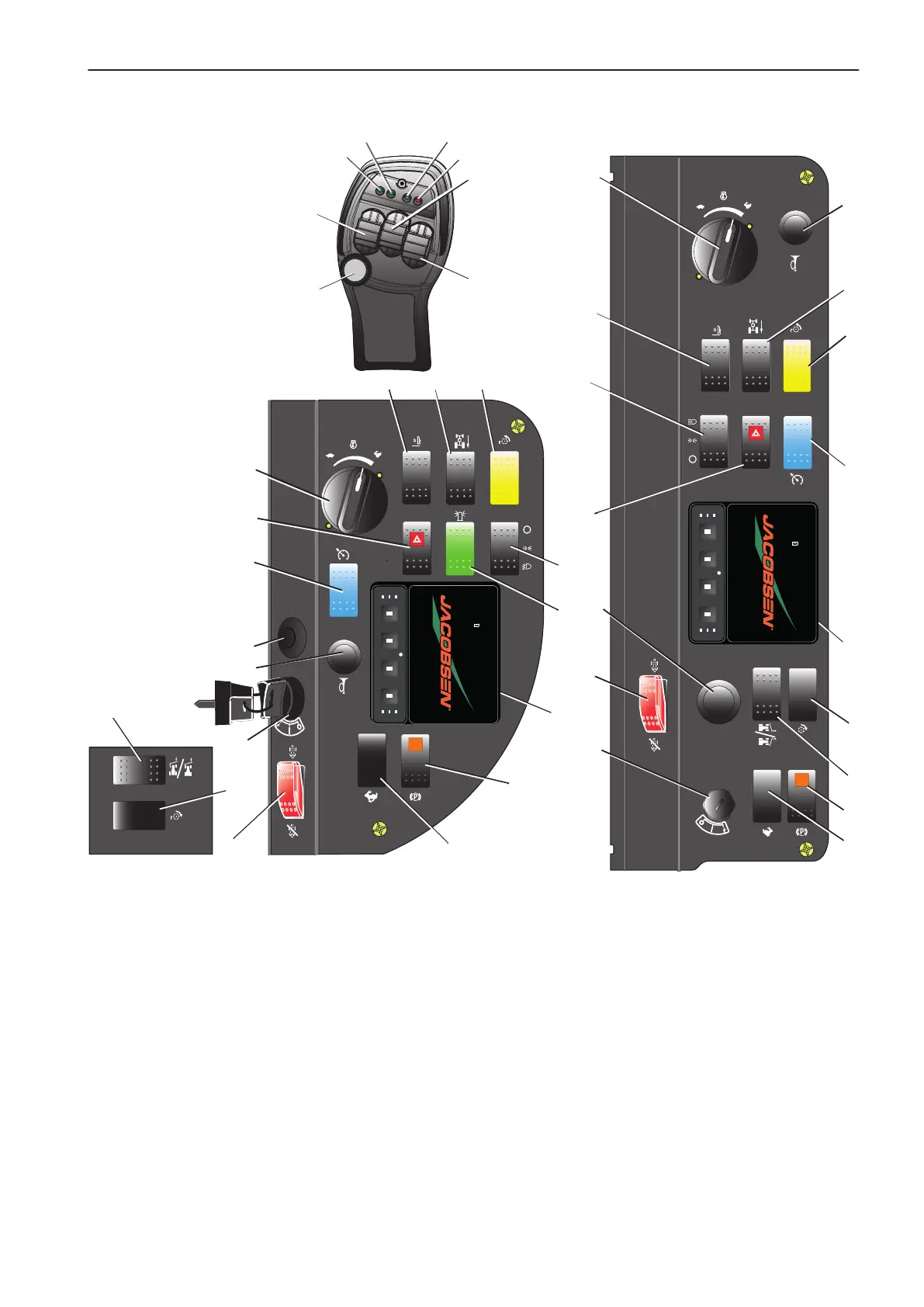

5.2 CONTROL PANEL ______________________________________________________
2
A: Starter Key Switch
B: Throttle Control
C: Park Brake Switch
D: Lamp Hazard Warning Switch (Optional)
E: Cutter Switch (PTO)
F: 4WD Reverse Assist
G: Road Light Switch (Optional)
H: Beacon Switch (Optional)
I: Cruise Control Switch
J: Transport Lock Switch
K: DPF Switch
L: Auxiliary Hydraulic Services (Optional)
M: Blank
N: Right Hand Cutting Unit Lift / Lower Control
O: Centre Cutting Unit Lift / Lower Control
P: Left Hand Cutting Unit Lift / Lower Control
Q: Cutters (PTO) LED Indicator
R: Right Hand Cutting Unit LED Indicator
S: Centre Cutting Unit LED Indicator
T: Left Hand Cutting Unit LED Indicator
U: Traction Boost / Weight Transfer Switch
V: Visual Display
S
T
P
U
N
R
Q
O
A
E
D
B
L
C
V
5 .6
5.5
G
12V
10A
F
J
I
K
M
12V12V
E
H
B
F
J
C
V
L
6.6
6.5
12V
10A
G
K
D
I
A
M
M
M
Cabin PanelROPS Panel
2.5 Hours
2.5 Hours
