Jacobsen HR600 User Manual

en-71
ADJUSTMENTS 7

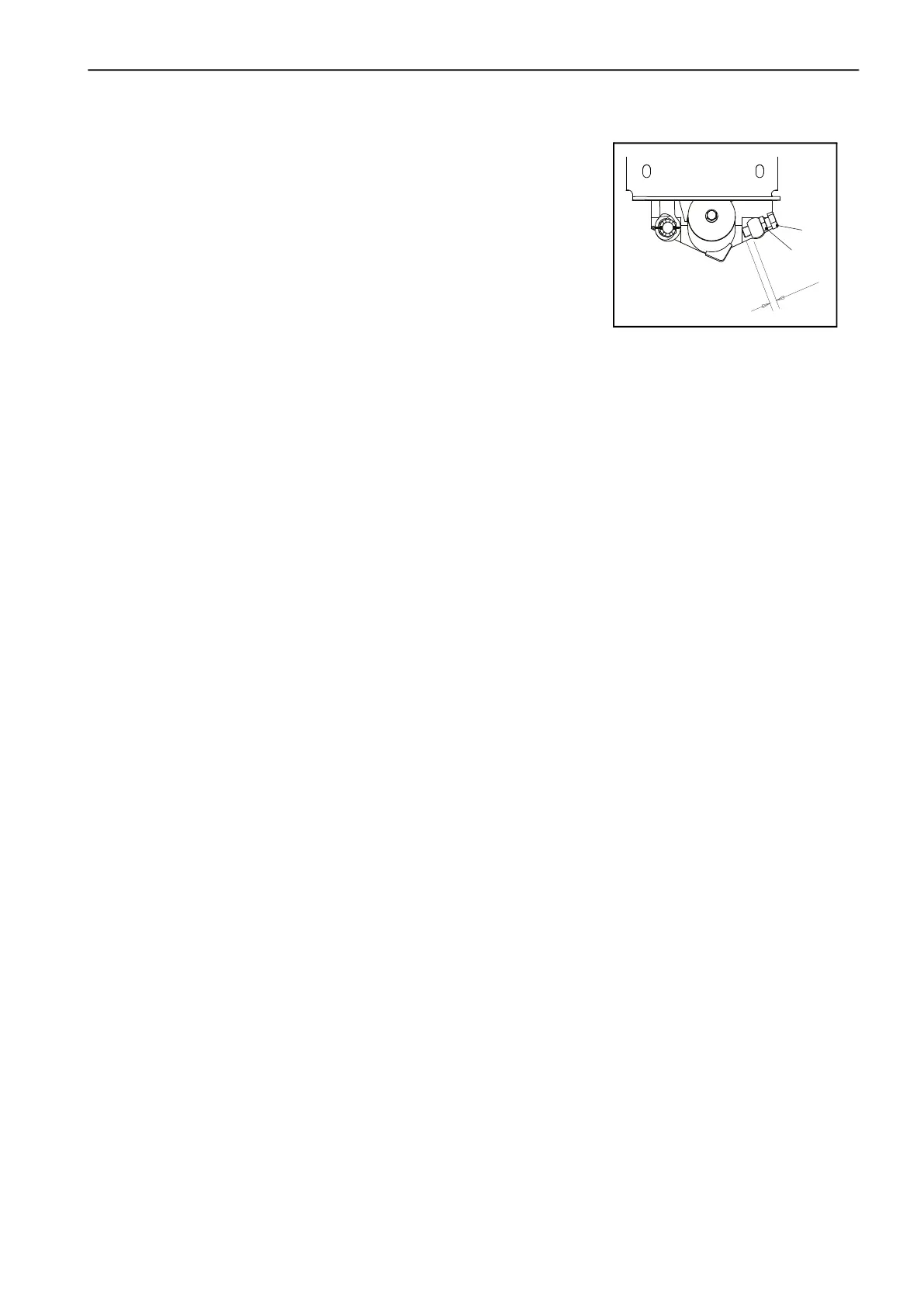

7.5 AXLE STOP ADJUSTMENT ____________________________________________
The rear wheels axle stops are set as follows.
1. Loosen the nut (A) and adjust bolt (B) to give a dimension of 12mm.
2. Tighten nut (A) to 210Nm (155 lbf-ft)
3. Repeat for opposite side of axle.
4 Check that full steering lock is obtainable.
2.5 to 3mm
A
B
