CONTROLS 5

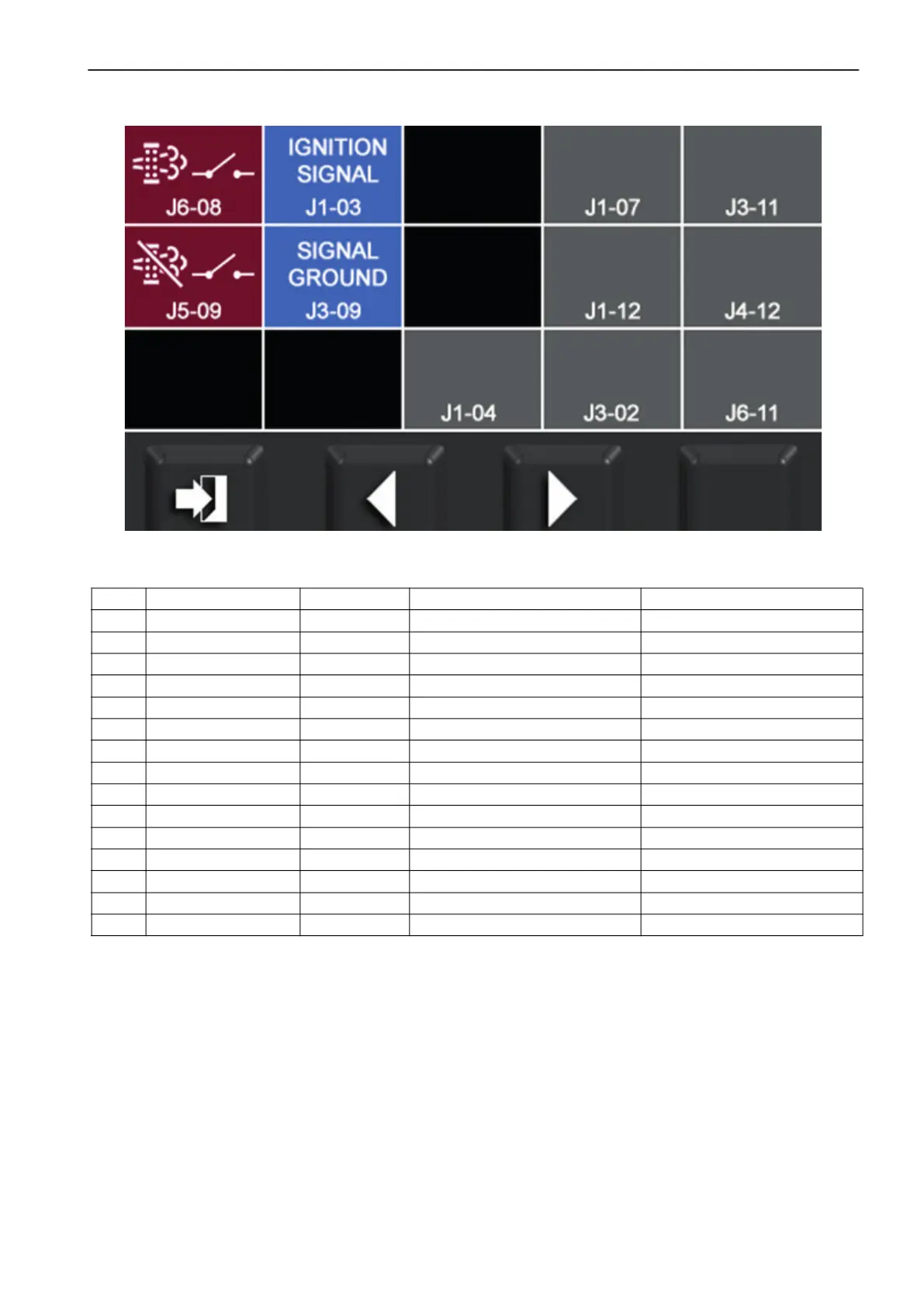

Miscellaneous Pins Continued

Ref # Module Pin Number Function Note

1 Main Controller J6-08 DPF Regen Start Switch Input

2 Main Controller J1-03 Ignition Signal

3 - - -

4 Main Controller J1-07 Not Used

5 Main Controller J3-11 Not Used

6 Main Controller J5-09 DPF Regen Inhibit Switch Input

7 Main Controller J3-09 Signal Ground

8 - - -

9 Main Controller J1-12 Not Used

10 Main Controller J4-12 Not Used

11 - - -

12 - - -

13 Main Controller J1-04 Not Used

14 Main Controller J3-02 Not Used

15 Main Controller J6-11 Not Used
