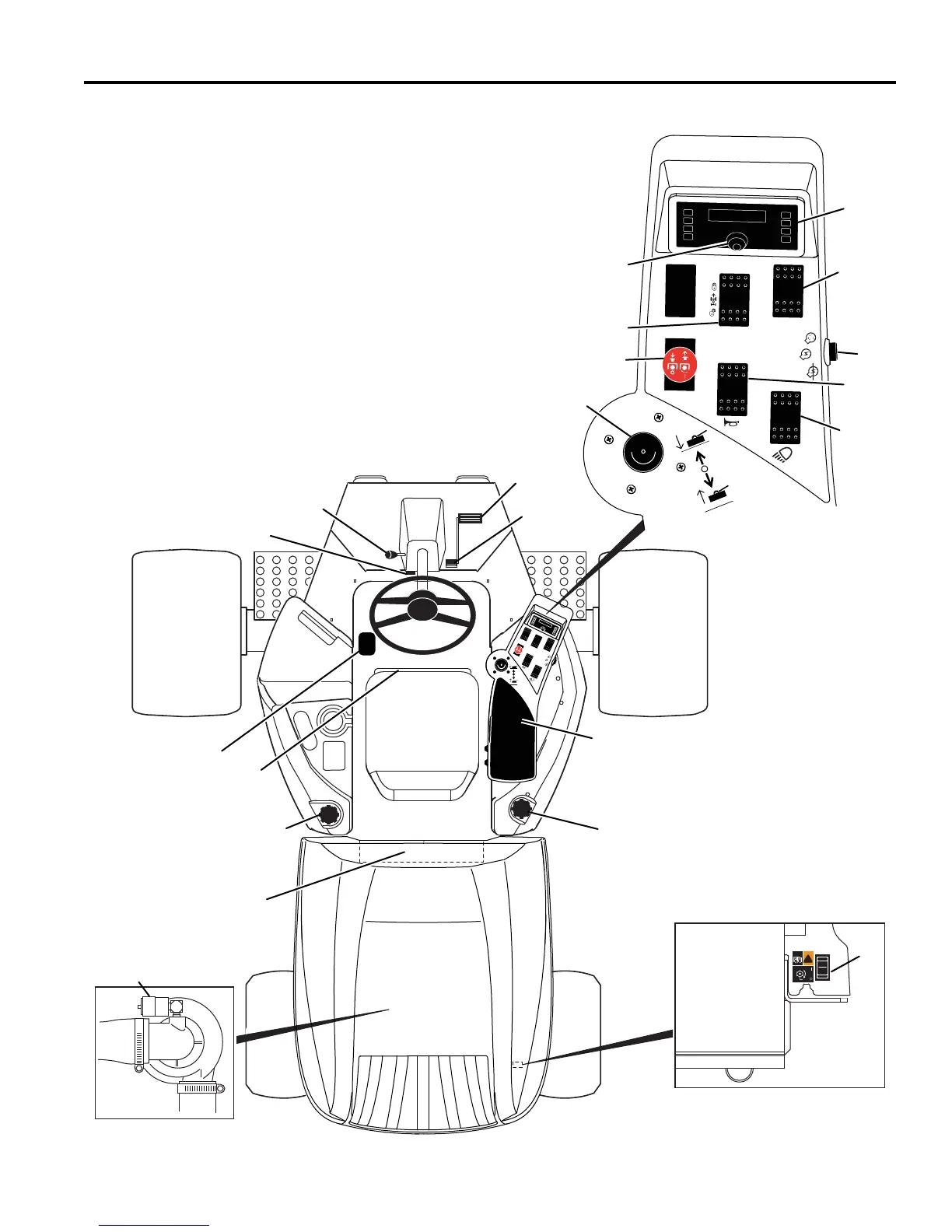

BEDIENELEMENTE 3
de-9
!
4131663
A
E
B
F
J
C
G
D
H
K
L
M
N
P
R
W
S
T
U
V
R
A LCD-Display (LDU)
B Mähschalter
C Feststellbremsschalter
D
Tempomatschalter
E Zündschalter
F Hupenschalter
G
Lichtschalter
H Joystick
J Tankdeckel
K Luftfilteranzeige
L Rückläppschalter
M Lenkkipphebel
N Fahrpedal - Vorwärts
P Fahrpedal - Rückwärts
R Sitzverstellung
S Hydraulikölkappe
T Regler/Sicherungen
U Motordrosselhebel
V LDU-Schaltfläche
W Zugangsplattenverriegelung
