6 LUBRICATION
26
6 Lubrication

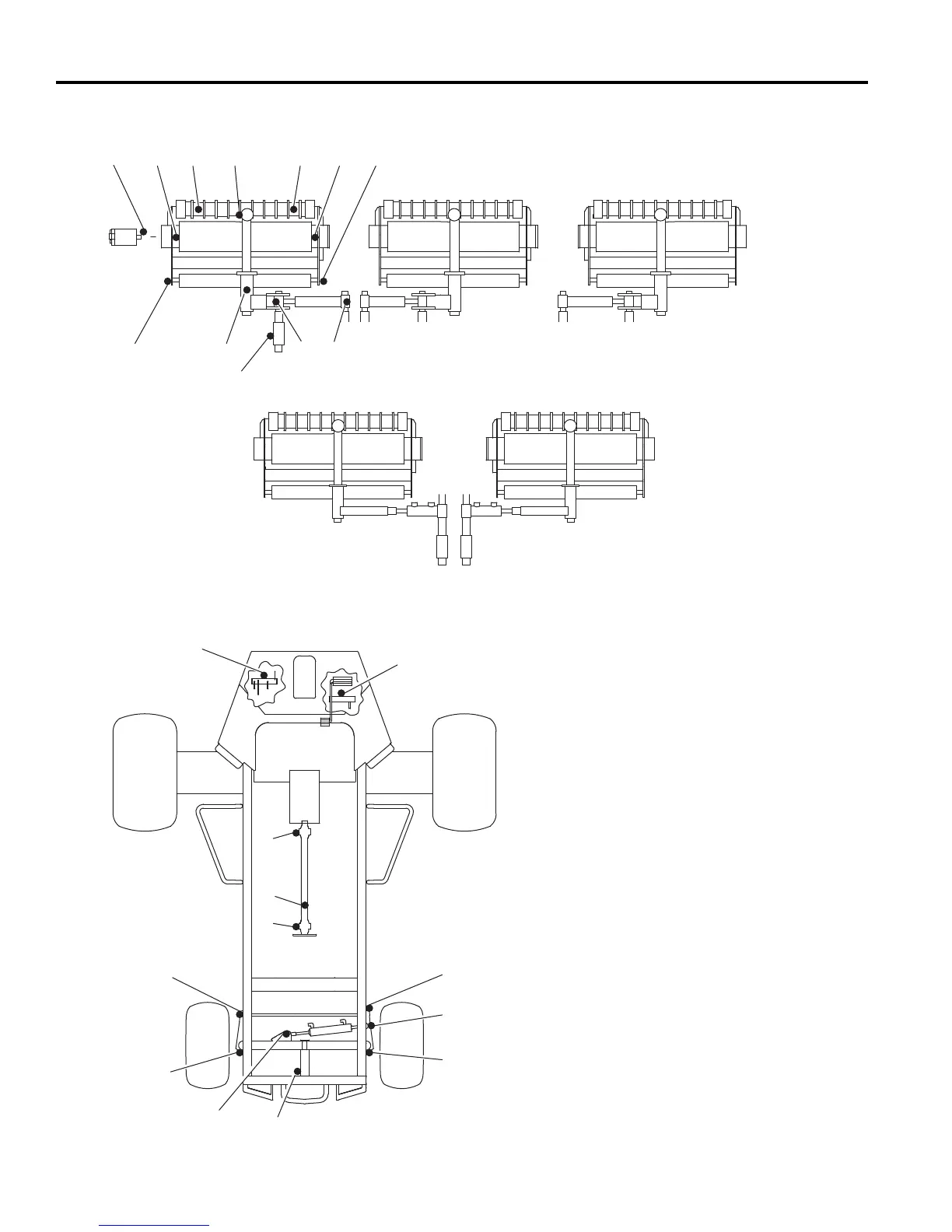

6.1 LUBRICATION CHART
2
33
5
6
77
8
8
9
10
12 12 11 13
11
13
14
14
14
4
15
1
9
Grease Fittings
F1 - 50 Hours (Every Week)
1 Swivel Housing
2Lift Arm
3 Lift Cylinders
4 Lift Arm Pivot
5 Brake Pedal Pivot
6 Traction Pedal Pivot
7 Ball Joint
8 Steering Pivot
9 Steering Cylinder
10 Axle Pivot
F2 - 100 Hours
11 Reel Bearing Cavity
12 Front Roller
13 Rear Roller
14 U-joint Driveshaft
F3 - 250 Hours
15 Motor Spline
Grease points same for all reels
LF023
