Item Part No. Qty. Description Serial Numbers/Notes
1
339962 2 Locknut, 13/16-16 Bulkhead
2 2822505 2 Motor, Reel
5001068 1 • O-Ring, Mount
5002651 1 • Seal Kit
5003688 1 • Kit, Front Cover
3 339985 2 Adapter, 8-10 Straight
4 340066 4 Adapter, 90° 8-8
5 340240 2 Union, 8-8 Bulkhead
6 4101027 1 Hose, Bulkhead to Left Motor
7 4101025 1 Hose, Left Motor to Right Motor
8 4108601 2 Tube, Reel Valve to Bulkhead
9 4110920 1 Hose, Right Motor to Bulkhead

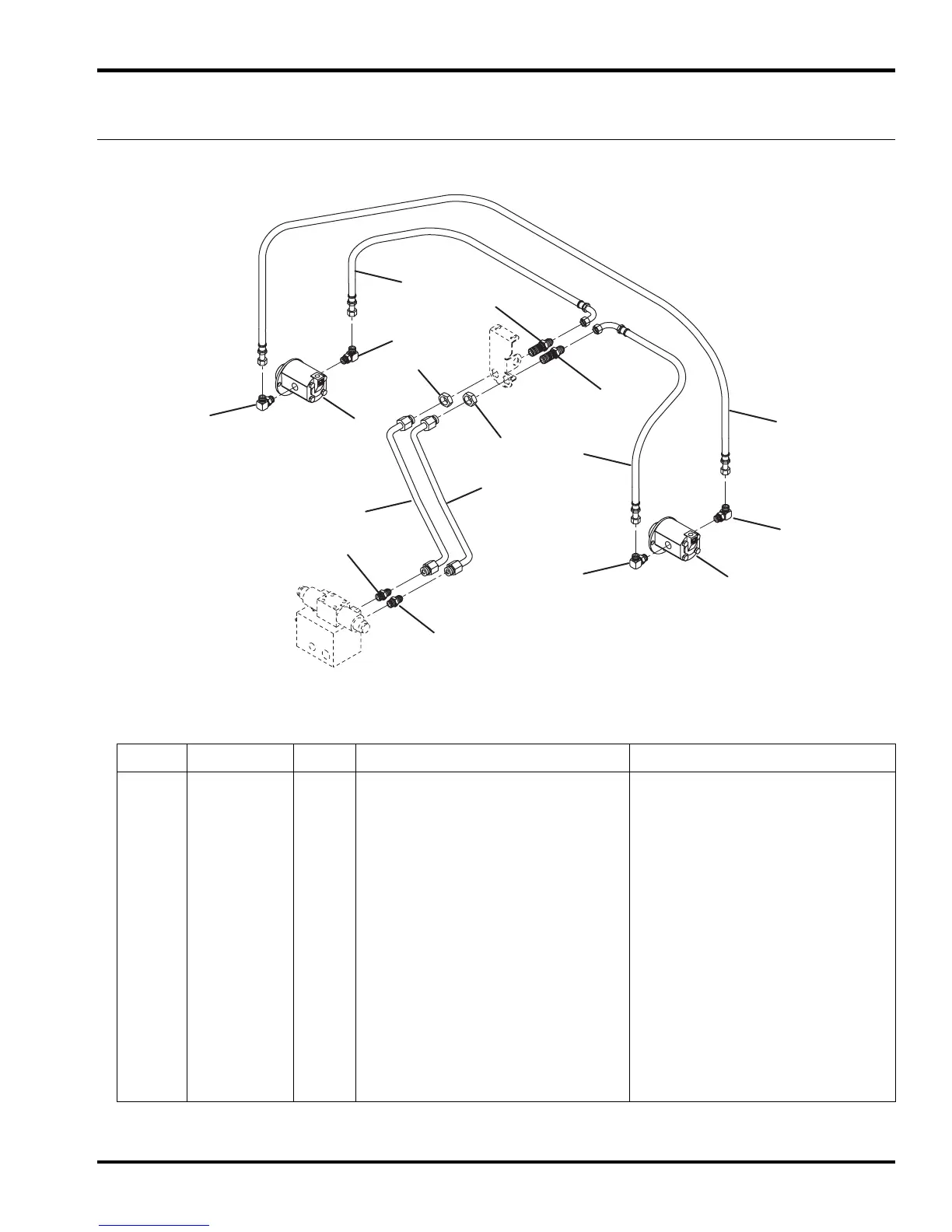

29.1 Rear Reel Hydraulics
Serial No. All
