Jacobsen Tri King

105
> Change from previous revision
1
2
3
4
5
6
7
8
2
2
2
9
10
11

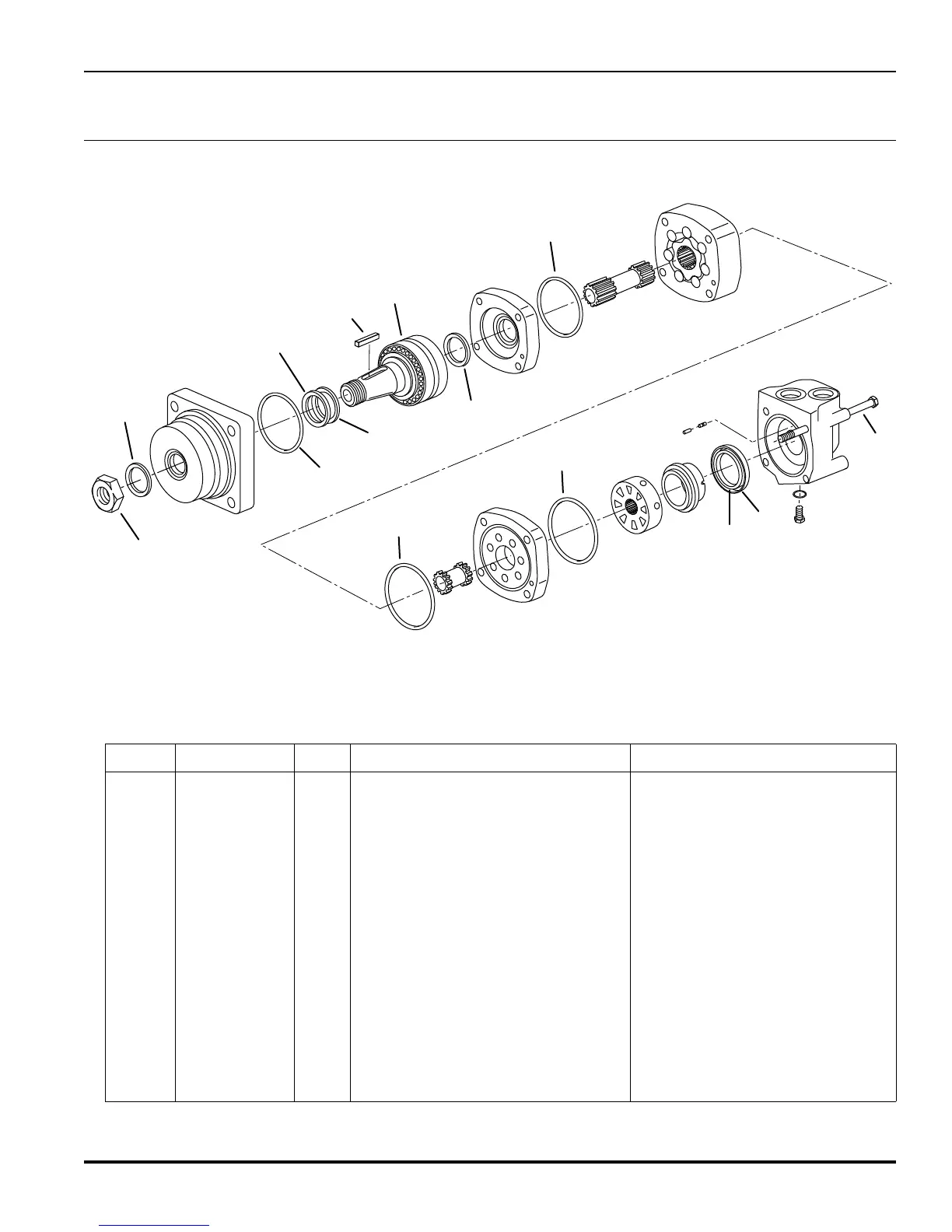

TRI-KING
Item Part No. Qty. Description Serial Numbers/Notes
◆
1
N/S 1 Seal Guard
● 2 N/S 4 Seal, 3” I.D.
● 3N/S1Back Up Ring
● 4 N/S 1 Shaft Seal
5 5003384 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Hex Nut
◆ 8 N/S 1 Shaft Face Seal
● 9 N/S 1 Inner Face Seal
● 10 N/S 1 Outer Face Seal
11 554782 4 Bolt
4178561 1 Rear Seal Kit Includes Items marked ●
4178562 1 Front Seal Kit Includes Items marked ◆
41.1 Wheel Motor, 9.6 in
3
Part No. 4189920
Serial No. All
