TRI-KING

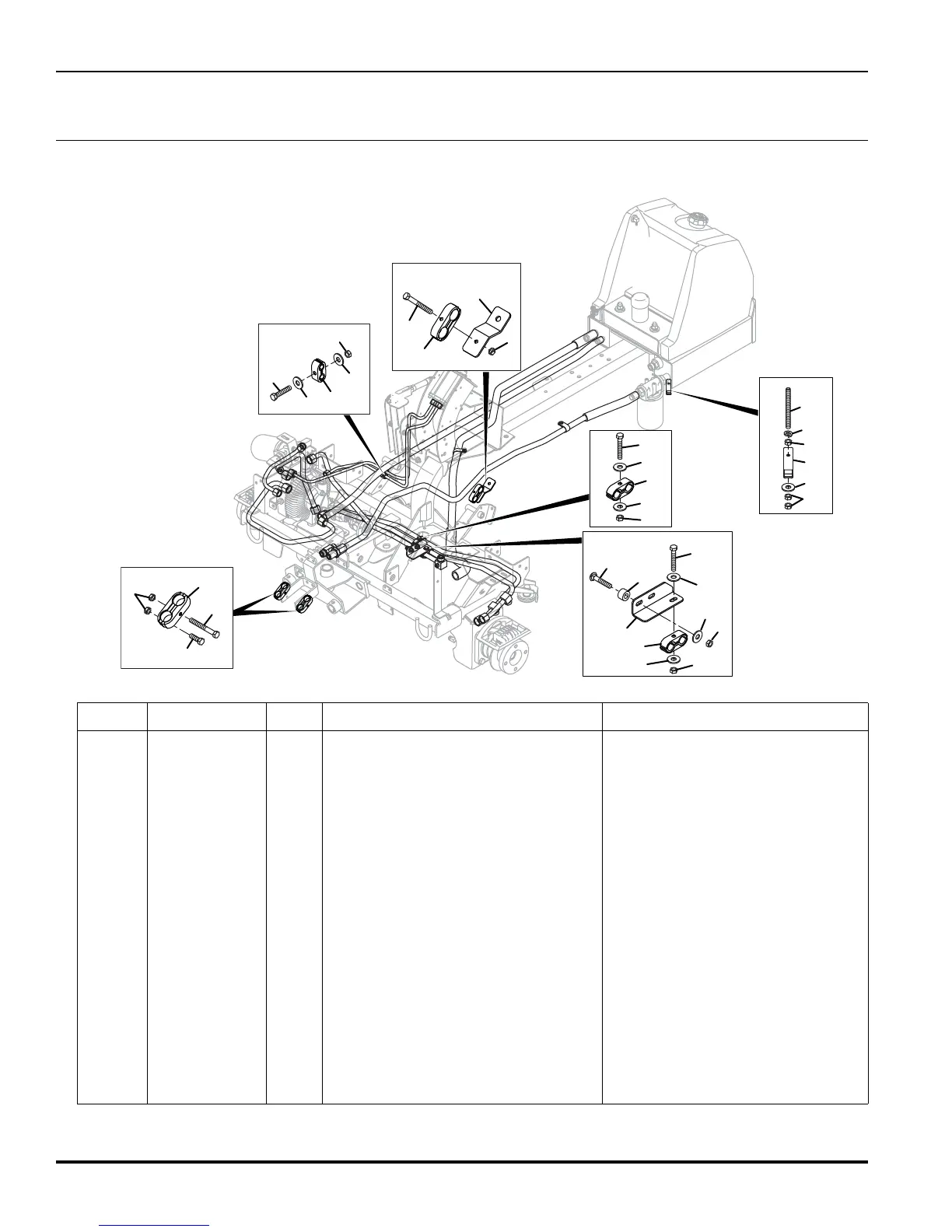

26.1 Hydraulic Tube Clamps
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
3003242 1 Bracket, Tube Clamp
2 441668 2 Carriage Bolt, 1/4-20 x 1-1/4”
3 3004410 2 Spacer
4 452004 8 Flat Washer, 1/4
5 444708 10 Locknut, 1/4-20 Hex Center
6 3003110 2 Clamp, Double Tube
7 400116 2 Screw, 1/4-20 x 1-1/2” Hex Head
8 364221 1 Clamp, Double Tube
9 400114 1 Screw, 1/4-20 x 1-1/4” Hex Head
10 3003665 1 Stud, 1/4-20 x 2-3/4”
11 446130 1 Lockwasher, 1/4 Heavy
12 443102 3 Nut, 1/4-20 Hex
13 3003473 4 Clamp, Double Hose
14 400120 3 Screw, 1/4-20 x 2” Hex Head
15 400108 2 Screw, 1/4-20 x 3/4” Hex Head
16 3003323 1 Bracket, Center Reel Hose Clamp
