Jacobsen Tri King

81
> Change from previous revision
1
2
3
4
5
6
7
7
12
16
17
13
14
15
6
8
9
10
11

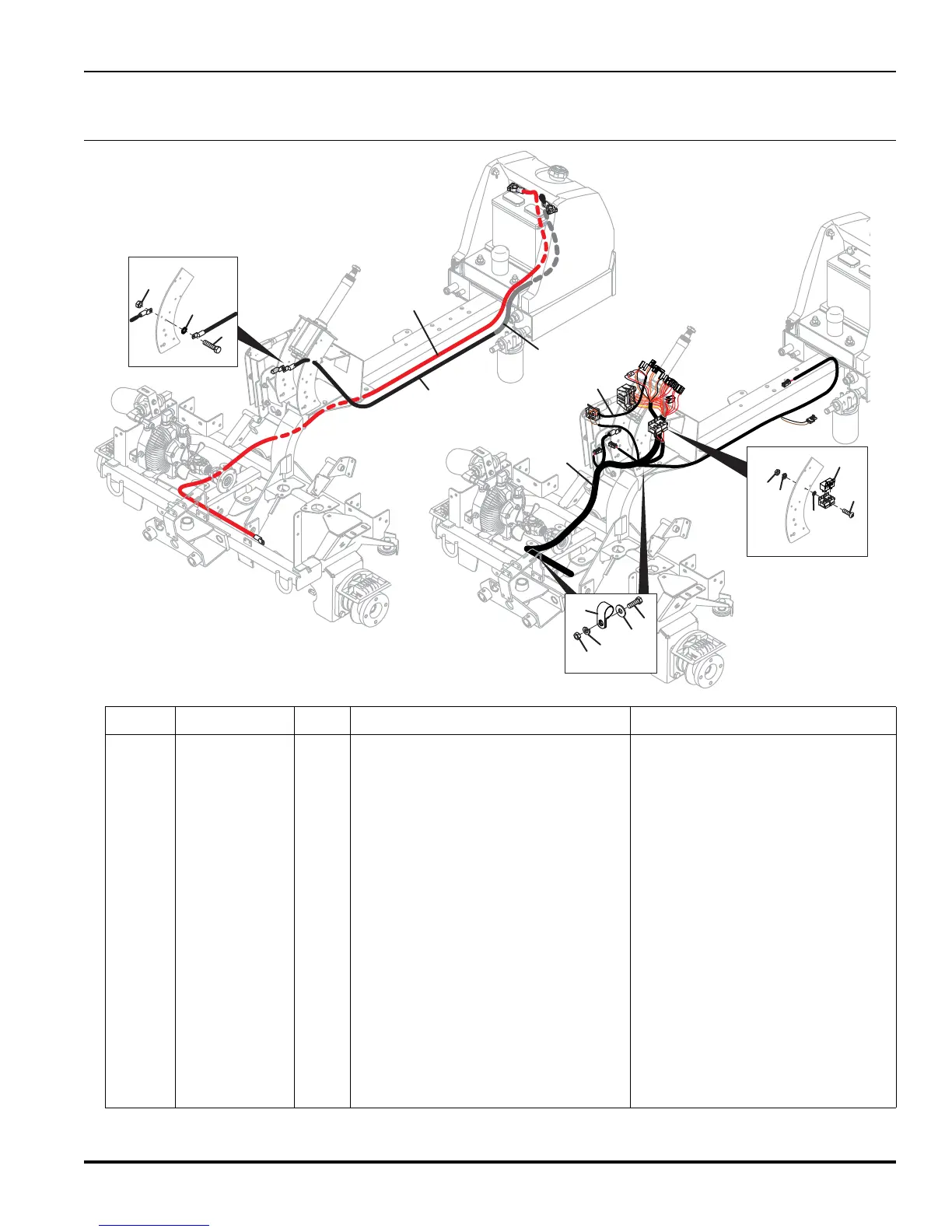

TRI-KING
Item Part No. Qty. Description Serial Numbers/Notes
1
2810624 1 Cable, Positive Battery
2 3003523 1 Cable, Negative Battery
3 3004539 1 Convoluted Conduit
4 400112 1 Screw, 1/4-20 x 1” Hex Head
5 447010 1 Lockwasher, 1/4 External Tooth
6 443102 3 Nut, 1/4-20 Hex
7 1004795 1 Wire Harness, Main
8 400108 2 Screw, 1/4-20 x 3/4” Hex Head
9 452004 2 Flat Washer, 1/4
10 345671 2 Clamp, Harness
11 446128 2 Lockwasher, 1/4
12 403912 1 Screw, #10-24 x 5/8” Truss Head
13 447006 1 Lockwasher, #10 External Tooth
14 446118 1 Lockwasher, #10 Heavy
15 444310 1 Nut, #10-24 Hex
16 3001307 2 Relay, SPDT with Resistor REFERENCE K4 and K5, See 42.1
17 2811632 1 Harness, Brake Light
27.1 Electrical Routing
Serial No. All
