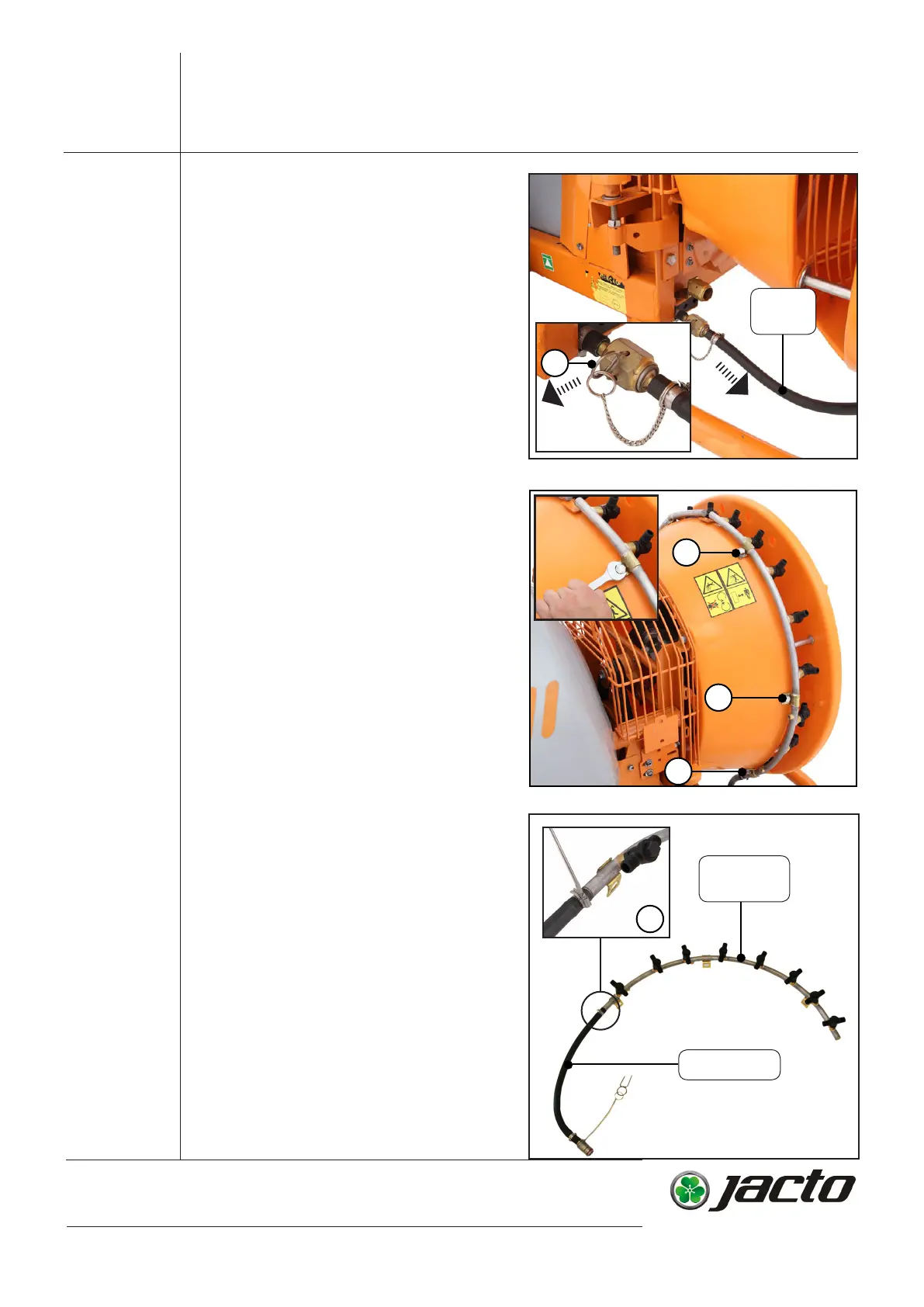

3- Pull the clip and remove the quick
fitting clamp (C). Then, disconnect
the hose from left and right branches.
C
4- Loosen nozzle branch mounting
bolts (D) and remove both right and
left branches.
D
D
D
branch
hose
5- Use a screwdriver (E) to loosen
the hose clamp and disconnect the
branch hose.
E
nozzle
branch
branch hose
